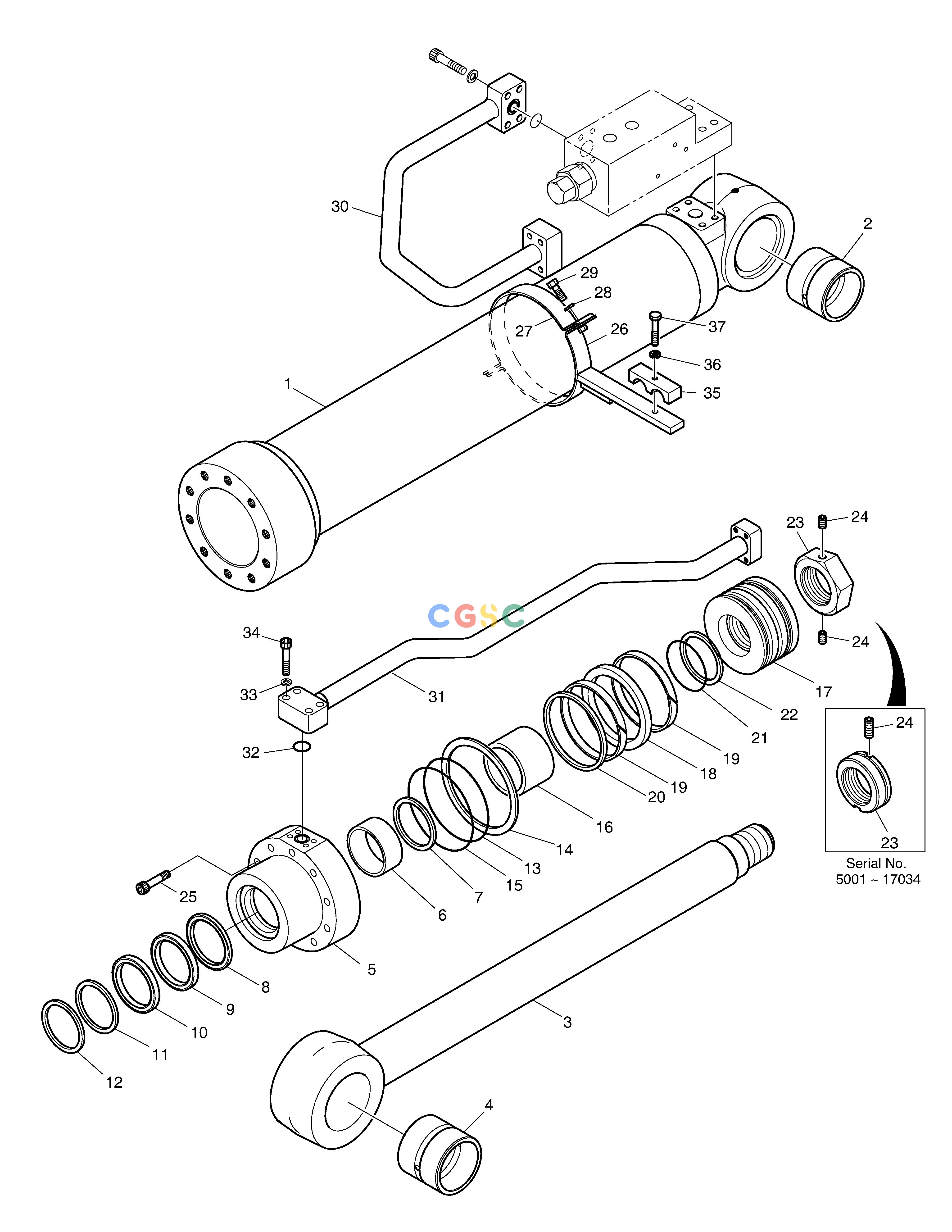

斗山零件查询BOOM CYLINDER - L.H (LOCK VALVE) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001878
|
[1] |
SEAL KIT;BOOM CYLINDER
|
|
| -. |
K1041220B
|
[1] |
BOOM CYLINDER(L.H)
|
400309-00345
|
| -. |
400309-00345
|
[1] |
|
400309-00345A
|
| -. |
400309-00345A
|
[1] |
|
|
| -. |
400309-00345B
|
[1] |
|
400309-00345C
|
| -. |
400309-00345C
|
[1] |
|
|
| 1. |
K9007361
|
[1] |
TUBE ASS'Y
|
420406-01077
|
| 1. |
420406-01077
|
[1] |
|
420406-01077A
|
| 1. |
420406-01077A
|
[1] |
|
|
| 10. |
K9001877
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011201
|
[1] |
O-RING
|
|
| 14. |
K9001859
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011251
|
[1] |
O-RING
|
|
| 16. |
1.115-00204
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001860
|
[1] |
PISTON
|
|
| 18. |
K9001890
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00087
|
[2] |
RING;WEAR
|
|
| 2. |
K1037853A
|
[1] |
BUSH
|
131008-00067A
|
| 2. |
131008-00067A
|
[1] |
|
|
| 20. |
K9001861
|
[1] |
RING;DUST
|
|
| 21. |
S8010651
|
[1] |
O-RING
|
|
| 22. |
1.180-00277
|
[2] |
RING;BACK UP
|
|
| 23. |
K9001862
|
[1] |
NUT;PISTON
|
120312-00047A
|
| 23. |
120312-00047A
|
[1] |
NUT,PISTON
|
|
| 24. |
1.120-00219
|
[1] |
SCREW;SET
|
|
| 24. |
S3523837
|
[2] |
|
|
| 25. |
S2222272
|
[10] |
BOLT;SOCKET
|
|
| 26. |
K9007358
|
[1] |
PIPE BAND ASS'Y
|
|
| 26. |
K9007358A
|
[1] |
|
110902-00090
|
| 26. |
110902-00090
|
[1] |
|
110902-00335
|
| 26. |
110902-00335
|
[1] |
|
|
| 27. |
124-00088
|
[1] |
BAND;PIPE
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
K9007362
|
[1] |
ROD ASS'Y
|
400337-00454
|
| 3. |
400337-00454
|
[1] |
|
400337-00454A
|
| 3. |
400337-00454A
|
[1] |
|
400337-00454B
|
| 3. |
400337-00454B
|
[1] |
|
|
| 30. |
K9007370
|
[1] |
PIPE ASS'Y-H(L.H)
|
|
| 30. |
K9007370A
|
[1] |
|
|
| 30. |
420210-02220
|
[1] |
|
420210-02671
|
| 30. |
420210-02671
|
[1] |
|
|
| 31. |
K9007368
|
[1] |
PIPE ASS'Y-R(L.H)
|
|
| 31. |
K9007368A
|
[1] |
|
420210-02298
|
| 31. |
420210-02298
|
[1] |
|
|
| 32. |
S8000281
|
[1] |
O-RING
|
|
| 33. |
S5100603
|
[4] |
WASHER
|
|
| 34. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 34. |
S2212371
|
[4] |
BOLT
|
|
| 35. |
1.124-00157
|
[1] |
CLAMP;PIPE
|
|
| 36. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 37. |
S0561053
|
[1] |
BOLT
|
|
| 4. |
K1037853A
|
[1] |
BUSH
|
131008-00067A
|
| 4. |
131008-00067A
|
[1] |
|
|
| 5. |
K9001856
|
[1] |
ROD;COVER
|
110508-22685A
|
| 5. |
110508-22685A
|
[1] |
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001857
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001858
|
[1] |
U-PACKING
|
|
