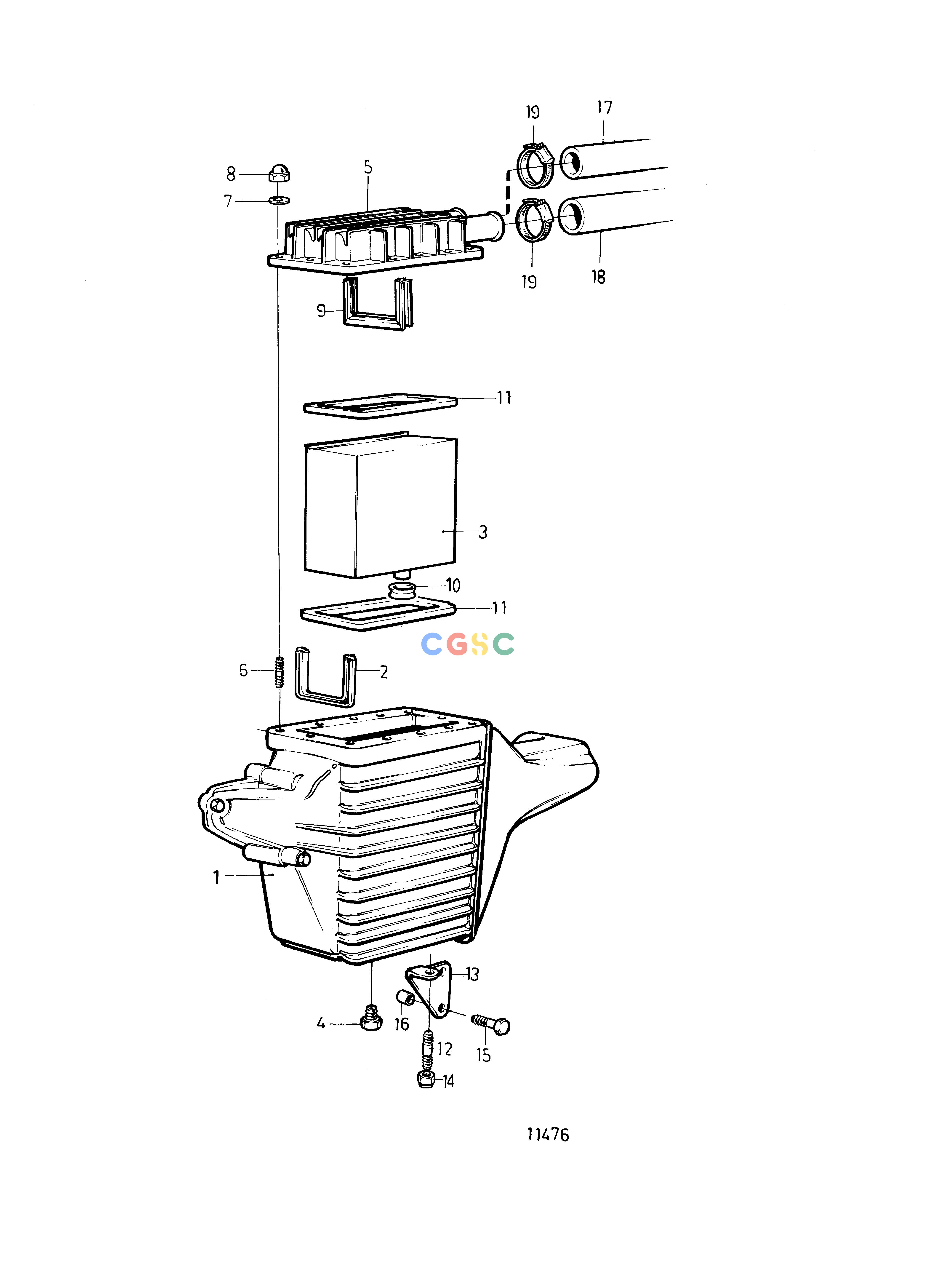

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1ACooling SystemAftercooler: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859354
|
[1] |
Housing
|
|
| 2. |
838831
|
[1] |
Sealing strip
|
|
| 3. |
861553
|
[1] |
Insert
|
(861049)
|
| 4. |
861551
|
[1] |
Plug
|
(861116)
|
| 5. |
860409
|
[1] |
Cover
|
|
| 6. |
953036
|
[12] |
Stud
|
|
| 7. |
955893
|
[12] |
Washer
|
|
| 8. |
968458
|
[12] |
Flange cap nut
|
|
| 9. |
847573
|
[1] |
Sealing strip
|
|
| 10. |
858979
|
[1] |
Sealing ring
|
|
| 11. |
860920
|
[2] |
Gasket
|
|
| 12. |
953041
|
[1] |
Stud
|
|
| 13. |
858965
|
[1] |
Bracket
|
|
| 14. |
968862
|
[1] |
Nut
|
|
| 15. |
965226
|
[2] |
Flange screw
|
|
| 16. |
861554
|
[2] |
Spacer
|
Std, (1572568)
|
| 16. |
912142
|
[2] |
Spacer sleeve
|
For jackshaft installations.
|
| 17. |
860404
|
[1] |
Hose
|
After cooler-oil cooler.
|
| 18. |
860645
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 19. |
994561
|
[2] |
Hose clamp
|
|
