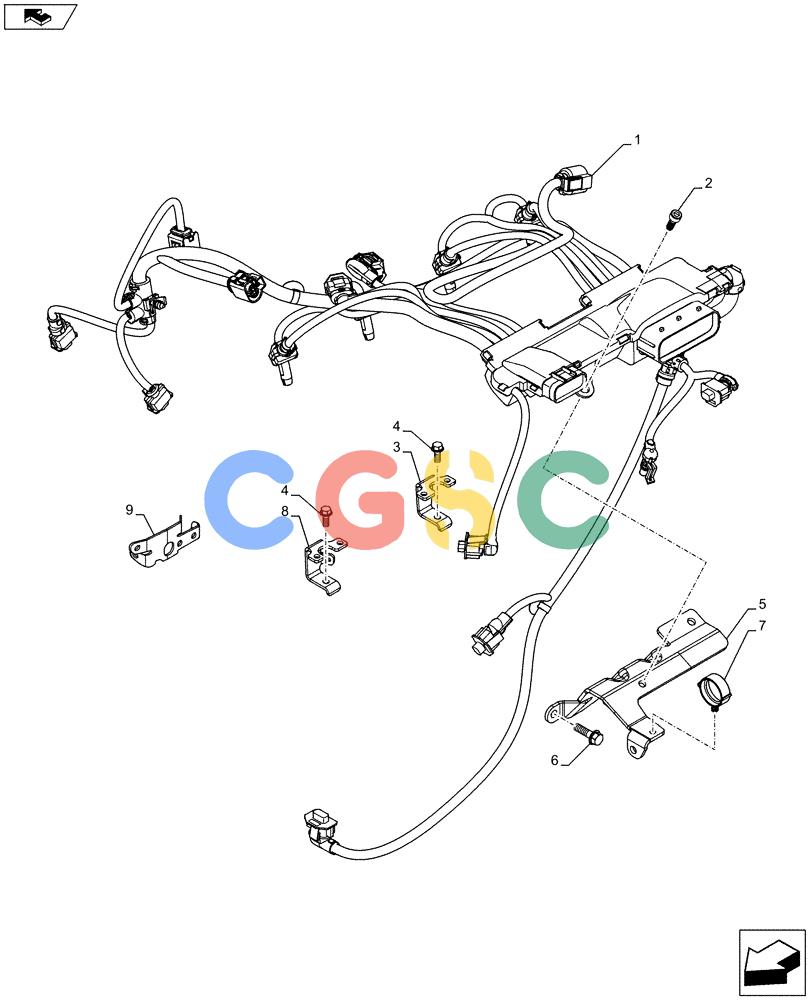

纽荷兰零件查询(F5HFL463A F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (55.015.AB) - ENGINE, HARNESS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801653602 | [1] | WIRE HARNESS | TOR |
| 2. | 16689124 | [1] | SCREW,M6 x 16mm | ZED |
| 3. | 5801536153 | [1] | HANGER | TOR |
| 4. | 16978124 | [1] | BOLT,Hex, M6 x 14mm | TOR |
| 5. | 504388110 | [1] | RETAINER | TOR |
| 6. | 16673635 | [3] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORM8 x 20 Superseded by part number: 16978124 |
| 7. | 5801392545 | [1] | CLAMP | TOR |
| 8. | 5801535458 | [1] | HANGER | TOR |
| 9. | 5801547540 | [1] | HANGER | TOR |
