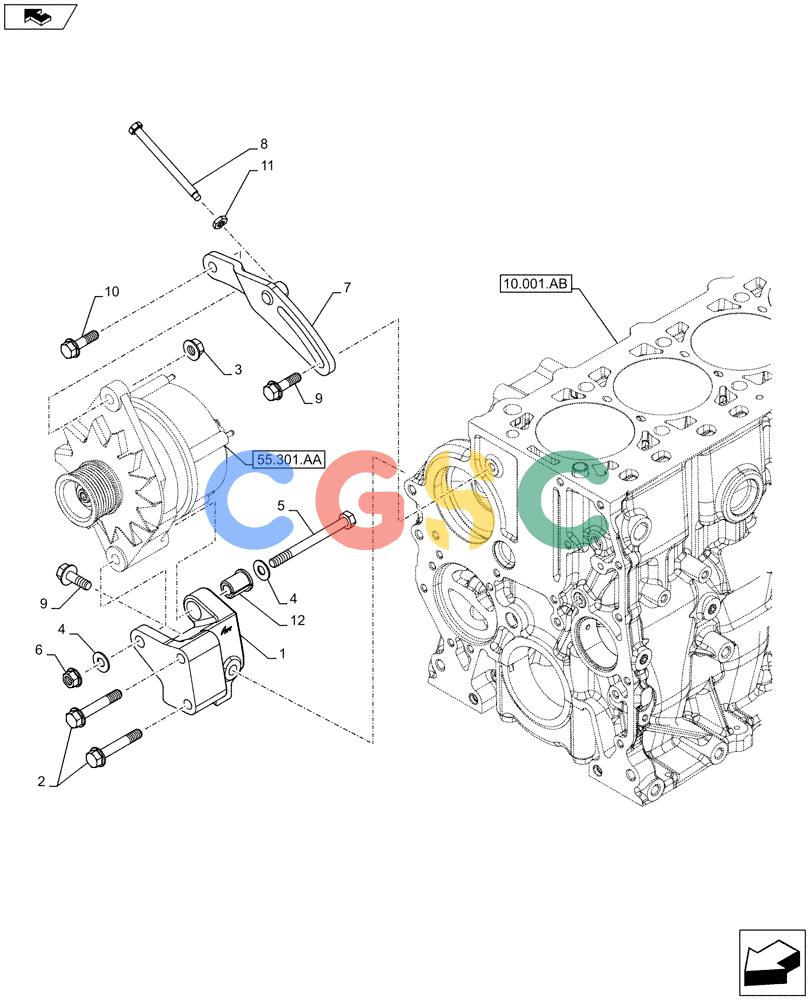

纽荷兰零件查询(F5HFL463A F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (55.301.AB) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504276997 | [1] | BRACKET, SUPPORTING | TOR |
| 2. | 16587824 | [2] | BOLT,Hex, M10 x 1.5 x 60mm | TOR |
| 3. | 17044735 | [1] | NUT,Hex, M8 | TOR |
| 4. | 17095125 | [2] | | WASHER |
| 5. | 159772224 | [1] | | |
| 6. | 17044825 | [1] | NUT,Hex, M10 | TOR |
| 7. | 504243953 | [1] | BELT TENSIONER | TOR |
| 8. | 504302206 | [1] | BOLT | TOR |
| 9. | 16587325 | [2] | SCREW,Hex, M10 x 35mm | TOR |
| 10. | 16586625 | [1] | BOLT,M8 x 35mm | TOR |
| 11. | 43362 | [1] | NUT,M8 x 1.25, Cl 10 | BHB |
| 12. | 2852181 | [1] | SPACER,10.4mm ID x 22mm OD x 35mm L | TOR Superseded by part number: 504060839 |
