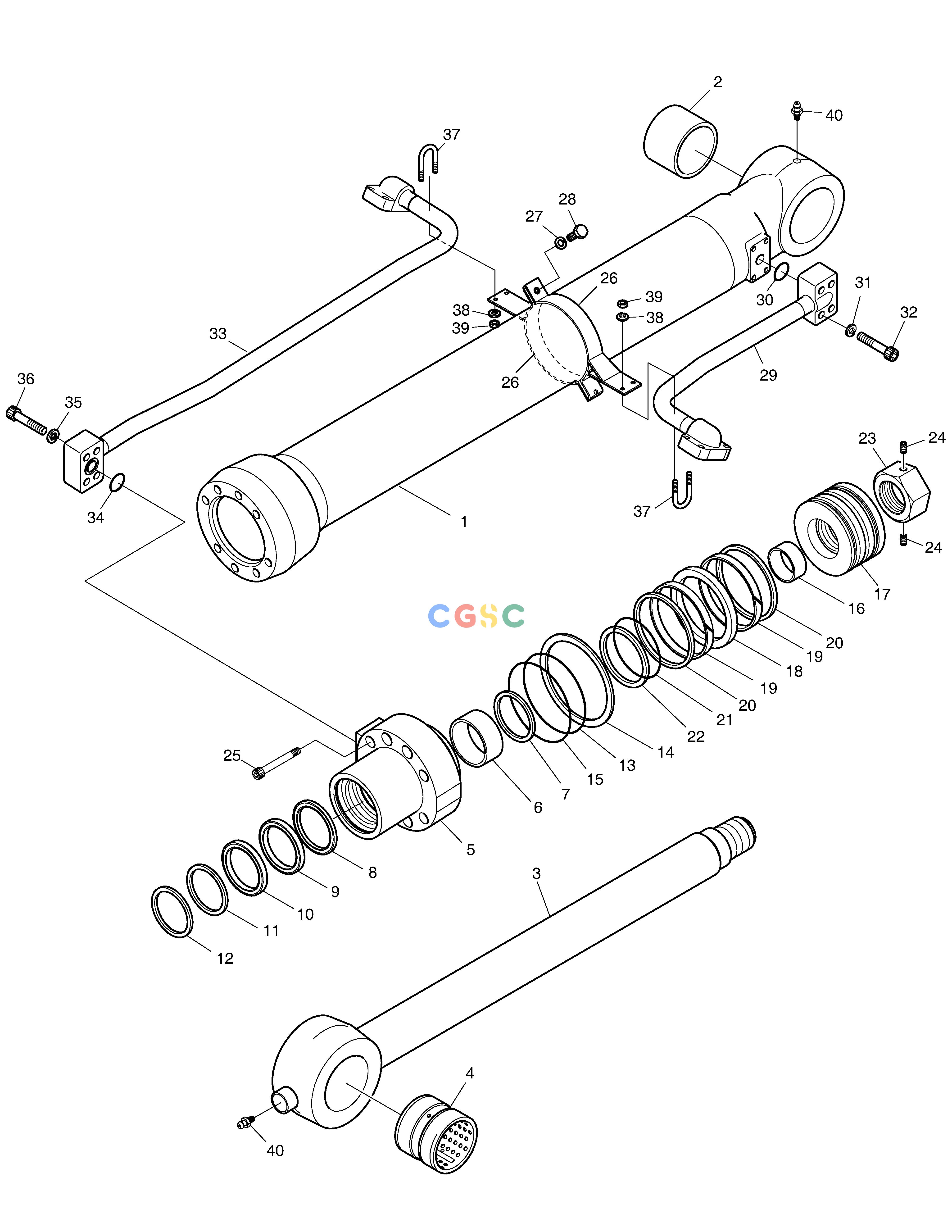

斗山零件查询BUCKET CYLINDER - ARM 6.2m DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001752
|
[1] |
SEAL KIT;BUCKET CYL.
|
|
| -. |
400310-00332B
|
[1] |
|
|
| 1. |
K9001753-DG
|
[1] |
|
|
| 10. |
K9001426
|
[1] |
RING;BACK UP
|
|
| 11. |
1.180-00496
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00052
|
[1] |
RING;RETAINING
|
|
| 13. |
S8010901
|
[1] |
O-RING
|
|
| 14. |
K9001427
|
[1] |
RING;BACK UP
|
|
| 15. |
S8010951
|
[1] |
O-RING
|
|
| 16. |
K9001428
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001429
|
[1] |
PISTON
|
|
| 18. |
K9001430
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00415
|
[2] |
RING;WEAR
|
|
| 2. |
K1004106
|
[1] |
BUSH
|
|
| 20. |
K9001431
|
[2] |
RING;SLYD
|
|
| 21. |
1.180-00117
|
[1] |
O-RING
|
|
| 22. |
K9001374
|
[2] |
BACK UP RING
|
|
| 23. |
120312-00267A
|
[1] |
NUT,PISTON
|
|
| 24. |
S3523836
|
[2] |
SCREW;SET
|
|
| 25. |
S2218961
|
[8] |
BOLT
|
|
| 26. |
K9001755-DG
|
[2] |
|
|
| 27. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 28. |
S0560563
|
[4] |
BOLT
|
|
| 29. |
K9001756-DG
|
[1] |
|
|
| 3. |
400337-00505A-DG
|
[1] |
|
|
| 30. |
S8000251
|
[1] |
O-RING
|
|
| 31. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 32. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 33. |
K9001757-DG
|
[1] |
|
|
| 34. |
S8000251
|
[1] |
O-RING
|
|
| 35. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 36. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 37. |
K9001158
|
[2] |
U-BOLT
|
|
| 38. |
S5100603
|
[4] |
WASHER
|
|
| 39. |
S4012633
|
[4] |
NUT
|
|
| 4. |
131004-00022A
|
[1] |
|
|
| 40. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 5. |
110508-00989A
|
[1] |
|
|
| 6. |
1.110-00068
|
[1] |
DD-BUSH
|
|
| 7. |
1.115-00032
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001424
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001425
|
[1] |
U-PACKING
|
|
