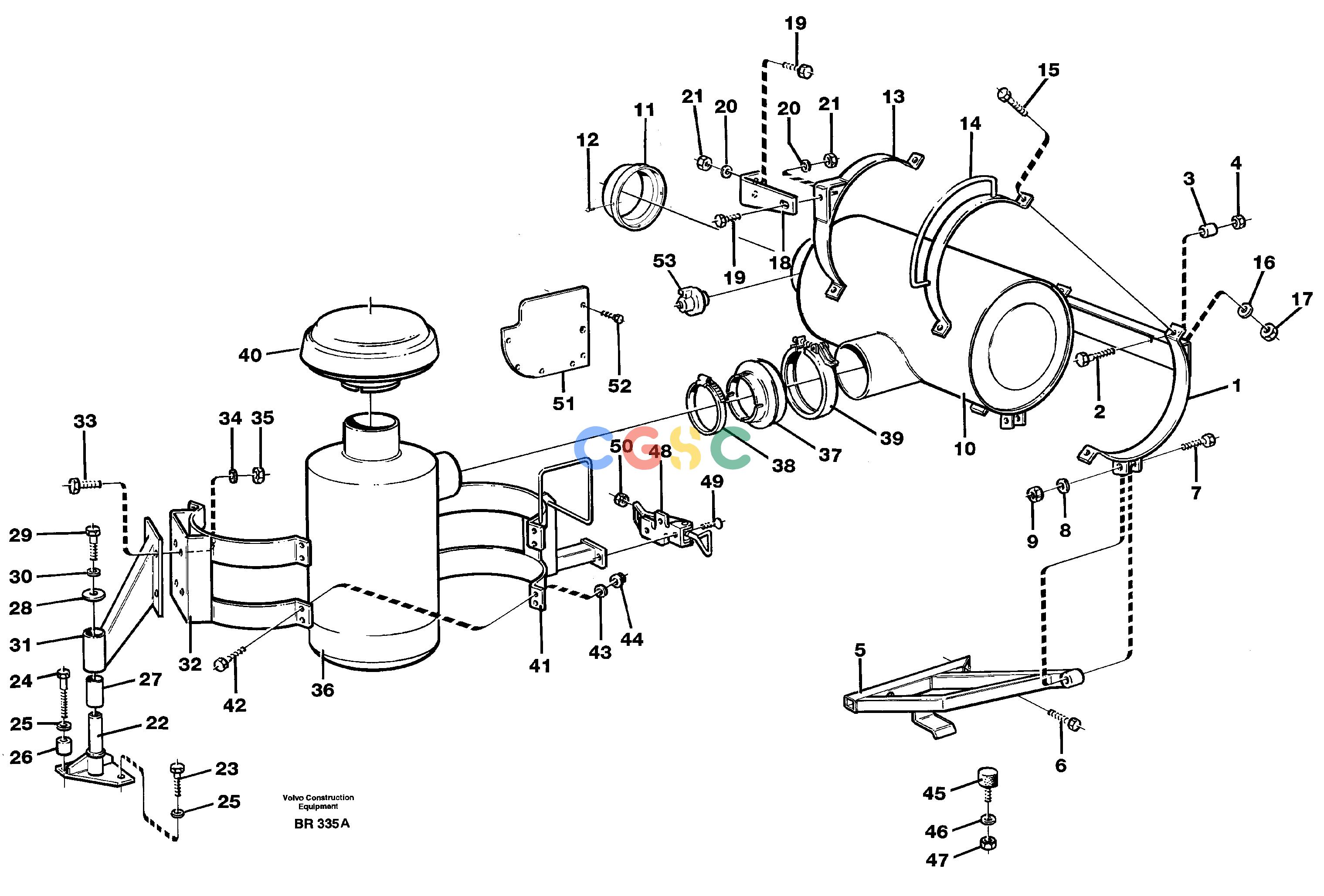

沃尔沃零件查询A40 Oil bath air filter with fitting partsSER NO 1201-, SER NO USA 60101- NoneNone93060Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
917 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11051525
|
[1] |
Brace
|
|
| 2. |
VOE13965220
|
[4] |
Screw
|
|
| 3. |
VOE4943026
|
[2] |
Spacer sleeve
|
|
| 4. |
VOE13971098
|
[2] |
Flange nut
|
|
| 5. |
VOE11051540
|
[1] |
Support
|
|
| 6. |
VOE946441
|
[2] |
Flange screw
|
|
| 7. |
VOE984758
|
[1] |
Flange screw
|
|
| 8. |
VOE13960143
|
[1] |
Washer
|
|
| 9. |
VOE13971098
|
[1] |
Flange nut
|
|
| 10. |
|
[1] |
Air cleaner
|
|
| 11. |
VOE11051663
|
[1] |
Adapter
|
|
| 12. |
VOE947376
|
[4] |
Cross recessed screw
|
|
| 13. |
VOE11051520
|
[1] |
Brace
|
|
| 14. |
VOE11051521
|
[1] |
Brace
|
|
| 15. |
VOE60113098
|
[4] |
Flange screw
|
|
| 16. |
VOE13960143
|
[4] |
Washer
|
|
| 17. |
VOE13971098
|
[4] |
Flange nut
|
|
| 18. |
VOE11051522
|
[1] |
Elbow
|
|
| 19. |
VOE60113094
|
[3] |
Flange screw
|
|
| 20. |
VOE13960143
|
[3] |
Washer
|
|
| 21. |
VOE13971098
|
[3] |
Flange nut
|
|
| 22. |
VOE11051585
|
[1] |
Anchorage
|
|
| 23. |
VOE13946474
|
[2] |
Flange screw
|
|
| 24. |
VOE60113113
|
[1] |
Flange screw
|
|
| 25. |
VOE60110353
|
[3] |
Washer
|
|
| 26. |
VOE60113600
|
[1] |
Spacer sleeve
|
|
| 27. |
VOE11064060
|
[1] |
Bushing
|
SER NO - 1424
|
| |
VOE11064060
|
[1] |
Bushing
|
SER NO 1425 -
|
| 28. |
VOE4778144
|
[1] |
Washer
|
|
| 29. |
VOE60113094
|
[1] |
Flange screw
|
|
| 30. |
VOE13960143
|
[1] |
Washer
|
|
| 31. |
VOE11064211
|
[1] |
Bracket
|
SER NO - 1424
|
| |
VOE11064211
|
[1] |
Bracket
|
SER NO 1425 -
|
| |
VOE914167
|
[1] |
Lubricating nipple
|
SER NO 1425 -
|
| 32. |
VOE11051515
|
[1] |
Attachment
|
|
| 33. |
VOE60113094
|
[4] |
Flange screw
|
|
| 34. |
VOE13960143
|
[4] |
Washer
|
|
| 35. |
VOE13971098
|
[4] |
Flange nut
|
|
| 36. |
|
[1] |
Air cleaner
|
|
| 37. |
VOE11051547
|
[1] |
Adapter
|
|
| 38. |
VOE943485
|
[1] |
Hose clamp
|
E PROD
|
| |
VOE947376
|
[4] |
Cross recessed screw
|
L PROD
|
| 39. |
VOE11051613
|
[1] |
Clamp
|
|
| 40. |
VOE11110260
|
[1] |
Cover
|
|
| 41. |
VOE11051577
|
[1] |
Brace
|
|
| 42. |
VOE13965182
|
[8] |
Screw
|
|
| 43. |
VOE13960141
|
[8] |
Washer
|
|
| 44. |
VOE13945408
|
[8] |
Nut
|
|
| 45. |
VOE11051662
|
[1] |
Buffer
|
|
| 46. |
VOE13960141
|
[1] |
Washer
|
|
| 47. |
VOE13945408
|
[1] |
Nut
|
|
| 48. |
VOE11051642
|
[1] |
Lock
|
|
| 49. |
VOE956184
|
[3] |
Cross recessed sunk screw
|
|
| 50. |
VOE13945408
|
[1] |
Nut
|
|
| 51. |
VOE11051616
|
[1] |
Cover Plate
|
E PROD
|
| 52. |
VOE956060
|
[6] |
Cross recessed screw
|
E PROD
|
| 53. |
VOE1542935
|
[1] |
Pressure drop indicator
|
E PROD
|
