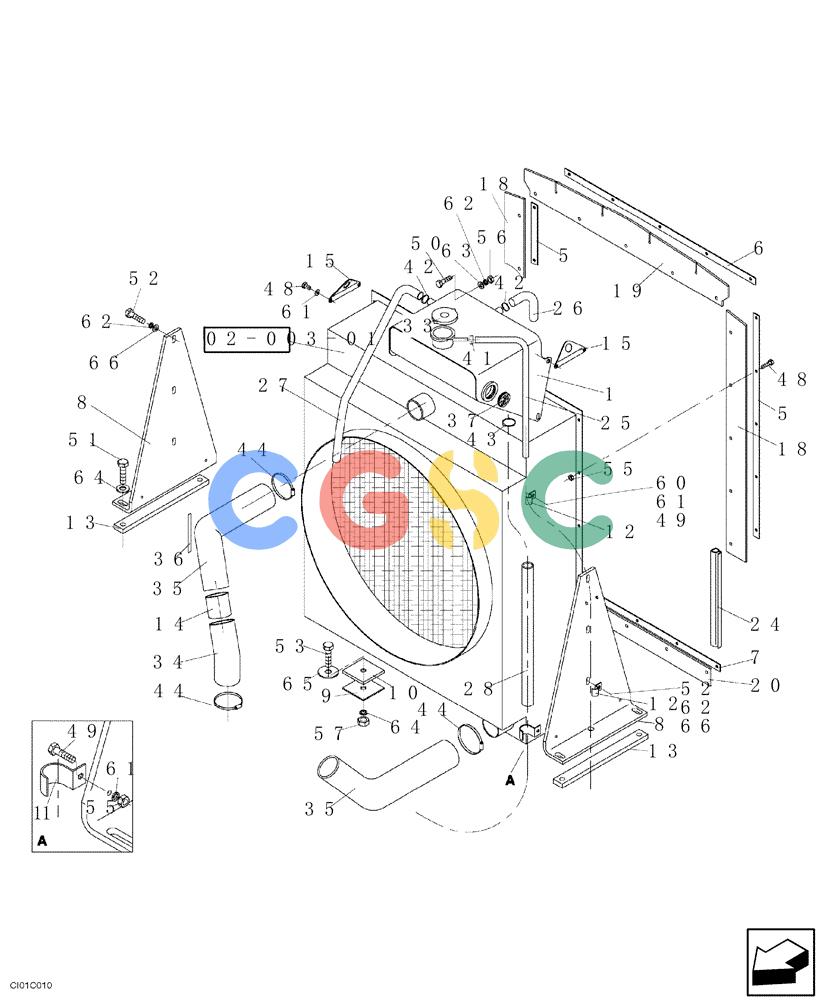

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (02-002-00[01]) - WATER CIRCUIT - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND011830 | [1] | COOLANT EXPANSION RESERVOIR | STA |
| 5. | ND031311 | [2] | BRACKET | STA |
| 6. | ND031313 | [1] | BRACKET | STA |
| 7. | ND031333 | [1] | BRACKET | STA |
| 8. | ND018193 | [2] | SUPPORT | STA |
| 9. | ND052391 | [4] | SPACER | STA |
| 10. | ND052393 | [4] | SPACER | STA |
| 11. | ND052883 | [1] | CLAMP | STA |
| 12. | ND053345 | [3] | CLAMP | STA |
| 13. | ND052408 | [2] | SPACER | STA |
| 14. | ND054151 | [1] | TUBE | STA |
| 15. | ND054213 | [2] | BRACKET | STA |
| 18. | ND031327 | [2] | PLATE | STA |
| 19. | ND031320 | [1] | PLATE | STA |
| 20. | ND031322 | [1] | PLATE | STA |
| 24. | ND076321 | [2] | SEAL | STA230 mm |
| 25. | ND076325 | [1] | HOSE | STA1600 mm Superseded by part number: ND139633 |
| 26. | ND075728 | [1] | HOSE | STA150 mm |
| 27. | ND076323 | [1] | HOSE,520.00 mm | STA Superseded by part number: ND107513 |
| 28. | ND076319 | [1] | HOSE,1000.00 mm | STA |
| 32. | ND064997 | [1] | RADIATOR | STA |
| 33. | ND090690 | [1] | COVER | STA |
| 34. | ND090755 | [1] | HOSE | STA |
| 35. | ND079346 | [2] | HOSE | STA |
| 36. | ND106910 | [1] | STRAP | STA370 mm |
| 37. | ND070149 | [1] | SIGHTGLASS | STAM36 x 1,5 |
| 41. | ND069521 | [1] | CLAMP | STA |
| 42. | ND105776 | [4] | CLAMP | STA Superseded by part number: ND107318 |
| 43. | ND105777 | [2] | CLAMP | STA Superseded by part number: ND107319 |
| 44. | ND105775 | [6] | HOSE CLAMP | STA |
| 48. | ND021289 | [22] | BOLT | STAM6 x 20 |
| 50. | ND021294 | [1] | BOLT | STAM8 x 20 |
| 51. | ND021311 | [4] | BOLT | STAM12 x 35 |
| 52. | ND021295 | [6] | BOLT | STAM8 x 25 |
| 53. | ND021312 | [2] | BOLT | STAM12 x 40 |
| 55. | ND026415 | [21] | NUT | STAM6 Superseded by part number: ND027300 |
| 56. | ND021848 | [1] | NUT | STAM8 Superseded by part number: ND034087 |
| 57. | ND021850 | [2] | NUT | STAM12 |
| 60. | ND029248 | [1] | WASHER | STAID 6,4 |
| 61. | ND029309 | [4] | SPRING WASHER | STAID 6,1 |
| 62. | ND035940 | [7] | SPRING WASHER | STAID 8 |
| 63. | ND029249 | [2] | WASHER | STAID 8,4 |
| 64. | ND035942 | [6] | WASHER | STAID 12 |
| 65. | ND029287 | [2] | WASHER | STAID 14 |
| 66. | ND029285 | [6] | WASHER | STAID 9 |
