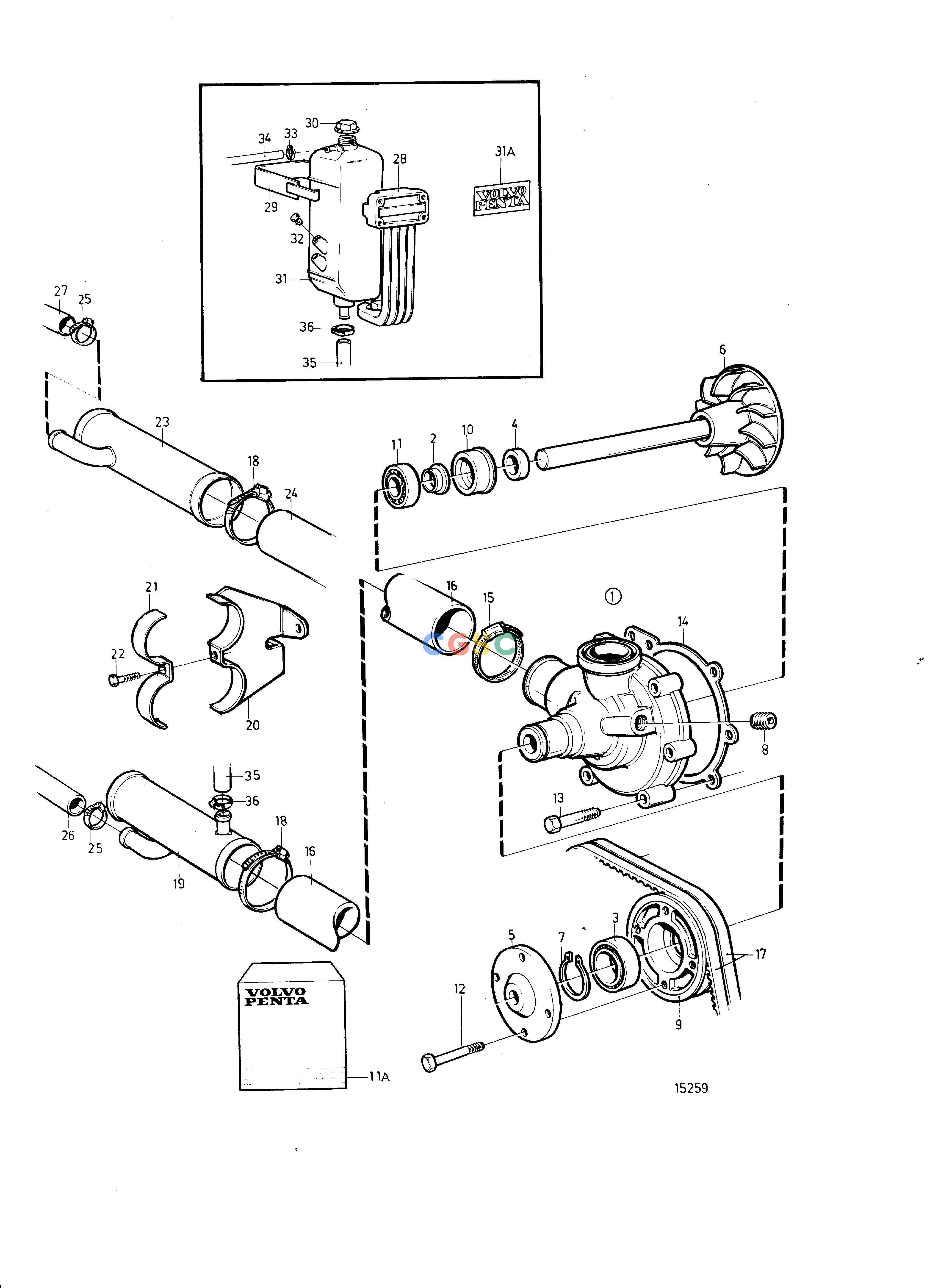

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1ACooling SystemWater Pump and Expansion Tank for Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860452
|
[1] |
Water pump
|
|
| 2. |
70913
|
[1] |
Deflector
|
Included in overhaul kit.
|
| 3. |
181538
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 4. |
421306
|
[1] |
Wear ring
|
Included in overhaul kit.
|
| 5. |
860455
|
[1] |
Hub
|
|
| 6. |
|
|
|
Included in overhaul kit.
|
| 7. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 8. |
479977
|
[1] |
Plug
|
(952077)
|
| 9. |
1542235
|
[1] |
Pulley
|
|
| 10. |
1545283
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 11. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 11A. |
876544
|
[1] |
Repair kit
|
See group 99
|
| 12. |
946173
|
[4] |
Flange screw
|
|
| 13. |
947760
|
[6] |
Flange screw
|
|
| 14. |
859027
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 15. |
965535
|
[1] |
Bracket
|
|
| 16. |
860968
|
[1] |
Hose
|
Inlet-water pump.
|
| 17. |
966978
|
[1] |
V-belt
|
|
| 18. |
943479
|
[2] |
Hose clamp
|
|
| 19. |
860965
|
[1] |
Coolant pipe
|
|
| 20. |
860969
|
[1] |
Bracket
|
|
| 21. |
860967
|
[1] |
Attaching clamp
|
|
| 22. |
946440
|
[1] |
Flange screw
|
|
| 23. |
860966
|
[1] |
Coolant pipe
|
|
| 24. |
860968
|
[1] |
Hose
|
Thermostat housing-outlet.
|
| 25. |
994561
|
[2] |
Hose clamp
|
|
| 26. |
861543
|
[1] |
Hose
|
Water pump-reverse gear.
|
| 27. |
860645
|
[1] |
Hose
|
After cooler-outlet.
|
| 28. |
843260
|
[1] |
Bracket
|
|
| 29. |
843266
|
[1] |
Clamp
|
|
| 30. |
844624
|
[1] |
Pressure cap
|
|
| 31. |
843759
|
[1] |
Expansion tank
|
|
| 31A. |
876234
|
[1] |
Decal set
|
|
| 32. |
947660
|
[2] |
Plug
|
|
| 33. |
994556
|
[1] |
Hose clamp
|
|
| 34. |
943366
|
[1] |
Rubber hose
|
Expansion tank-thermostat housing., L=2000mm
|
| 35. |
952969
|
[1] |
Hose
|
L=1940mm
|
| 36. |
943472
|
[2] |
Hose clamp
|
|
