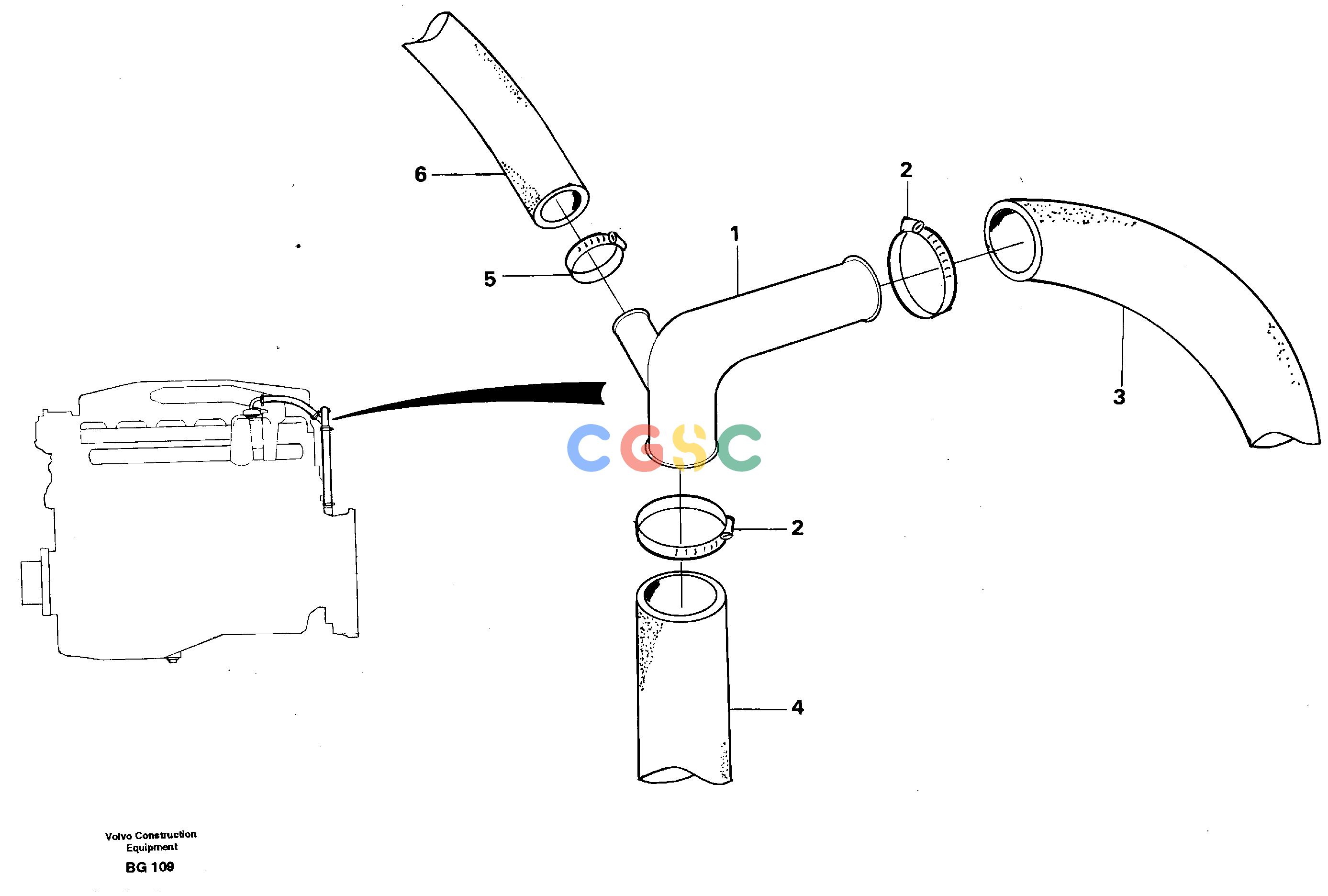

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE11050802 | [1] | Pipe bend | |
| 2. | VOE943476 | [3] | Hose clamp | |
| 3. | VOE941799 | [REQ] | Hose | L=1300mm |
| 4. | VOE941799 | [REQ] | Hose | L=350mm |
| 5. | VOE13943474 | [2] | Hose clamp | |
| 6. | VOE11000285 | [REQ] | Rubber hose | L=260mm |
广数供应链运营团队, 14 02月, 2025，浏览： 1004 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE11050802 | [1] | Pipe bend | |
| 2. | VOE943476 | [3] | Hose clamp | |
| 3. | VOE941799 | [REQ] | Hose | L=1300mm |
| 4. | VOE941799 | [REQ] | Hose | L=350mm |
| 5. | VOE13943474 | [2] | Hose clamp | |
| 6. | VOE11000285 | [REQ] | Rubber hose | L=260mm |
