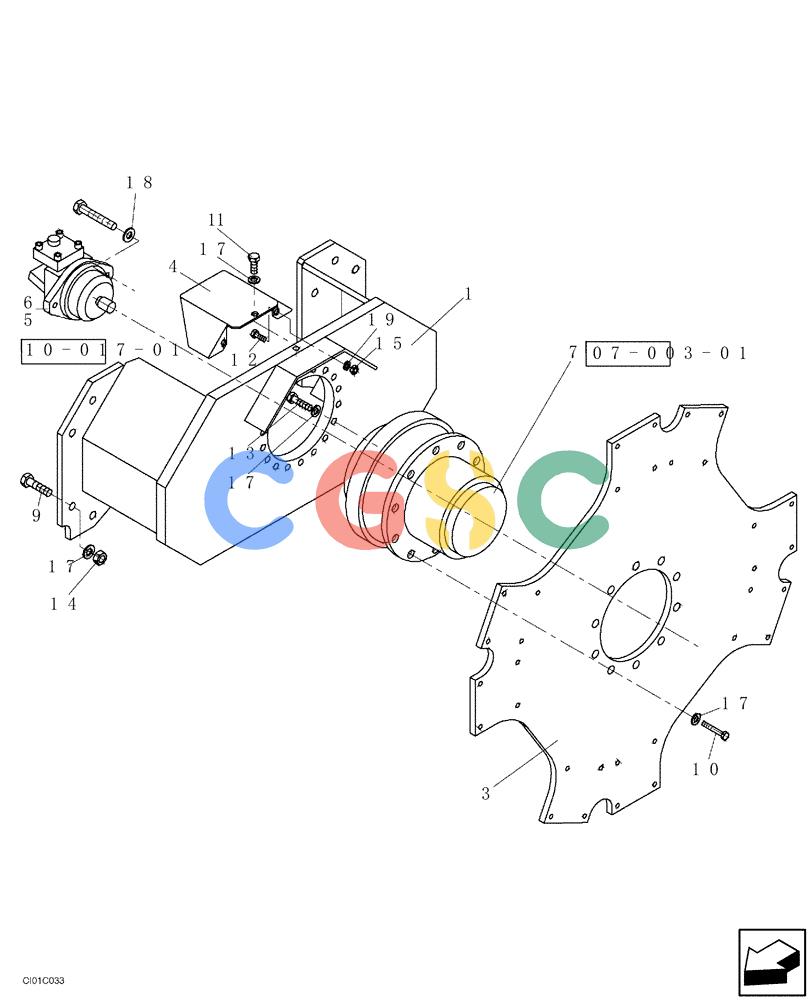

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (07-001-00[01]) - TRANSMISSION - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103119 | [1] | SUPPORT | STA |
| 3. | ND012092 | [1] | CARRIER | STA |
| 4. | ND018634 | [1] | COVER | STA |
| 5. | ND098400 | [1] | PLUG | STA |
| 6. | ND090942 | [1] | HYDRAULIC MOTOR | STA |
| 7. | ND090946 | [1] | REDUCER | STA |
| 9. | ND021243 | [12] | BOLT | STAM20 x 70 |
| 10. | ND021344 | [16] | BOLT | STAM20 x 50 |
| 11. | ND021328 | [1] | BOLT | STAM16 x 25 |
| 12. | ND021211 | [2] | BOLT | STAM12 x 60 |
| 13. | ND021241 | [16] | BOLT | STAM20 x 60 |
| 14. | ND021853 | [12] | NUT | STAM20 |
| 15. | ND021850 | [2] | NUT | STAM12 |
| 17. | ND035944 | [44] | WASHER | STAID 20 |
| 18. | ND035943 | [2] | WASHER | STAID 16 |
| 19. | ND035942 | [2] | WASHER | STAID 12 |
