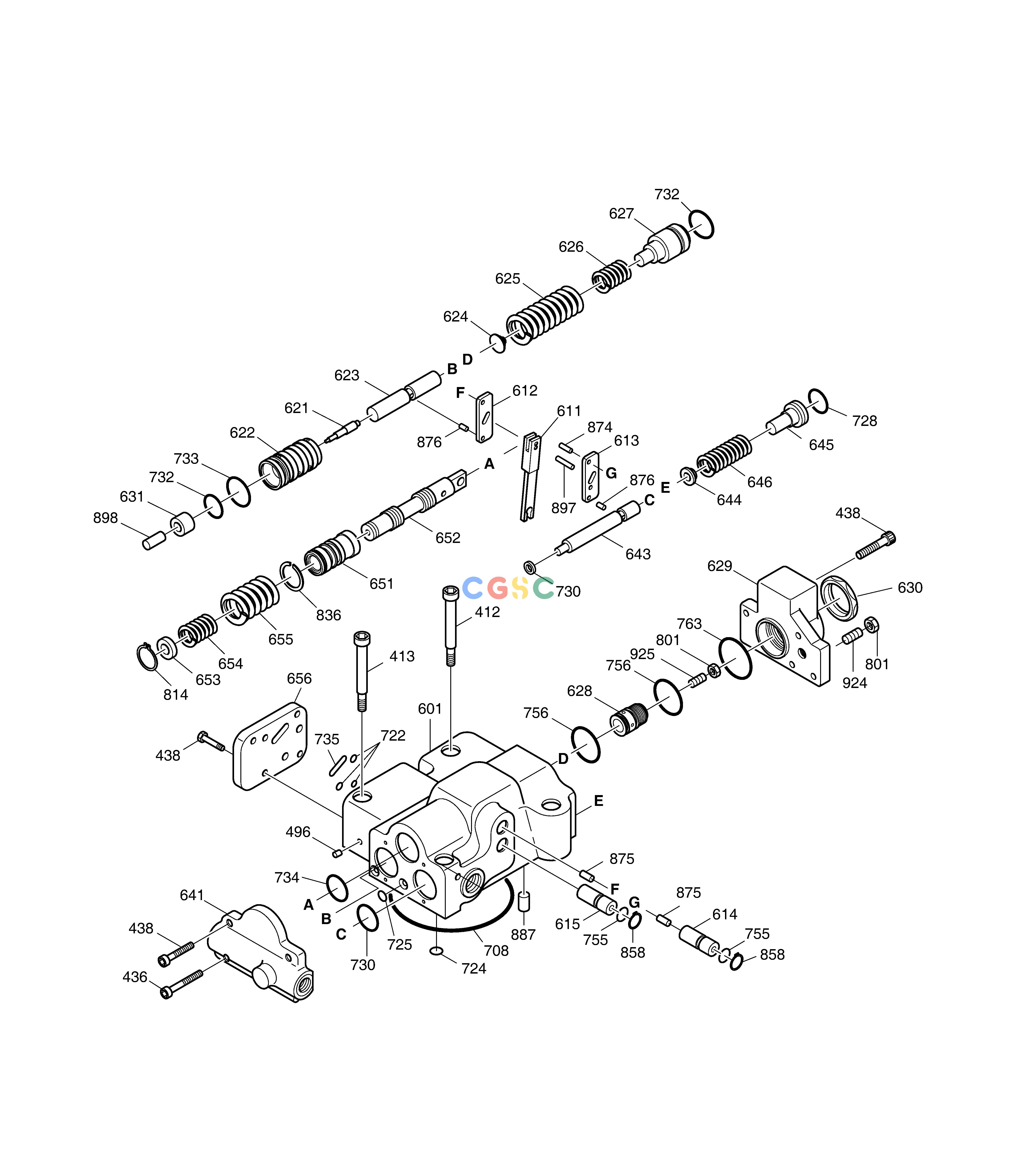

斗山零件查询REGULATOR DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
384 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9001833
|
[2] |
REGULATOR ASS'Y
|
|
| 412. |
S2209661
|
[2] |
BOLT
|
|
| 413. |
S2210071
|
[2] |
BOLT
|
|
| 436. |
S2205261
|
[2] |
BOLT
|
|
| 438. |
S2204861
|
[10] |
BOLT
|
|
| 496. |
181-00318
|
[5] |
BOLT;SOCKER
|
|
| 601. |
1.402-00055
|
[1] |
CASING(A)
|
|
| 611. |
1.357-00014
|
[1] |
LEVER;FEEDBACK(A)
|
|
| 612. |
1.357-00005
|
[1] |
LEVER 1(A)
|
|
| 613. |
1.357-00008
|
[1] |
LEVER 2(B)
|
|
| 614. |
1.181-00136
|
[1] |
PLUG;CENTER(A)
|
|
| 615. |
1.181-00090
|
[1] |
PLUG;ADJUST(A)
|
|
| 621. |
1.409-00189
|
[1] |
PISTON;COMPEN
|
|
| 622. |
1.402-00036
|
[1] |
CASE,PISTON
|
|
| 623. |
1.428-00208
|
[1] |
ROD;COMPEN
|
|
| 624. |
1.131-00165
|
[1] |
SEAT;SPRING(C)
|
|
| 625. |
1.131-00143
|
[1] |
SPRING;OUTER
|
|
| 626. |
1.131-00139
|
[1] |
SPRING;INNER
|
|
| 627. |
K9001834
|
[1] |
RING;ADJUST(C)
|
|
| 628. |
K9001835
|
[1] |
SCREW,ADJUST(C)
|
|
| 629. |
K9001836
|
[1] |
COVER C(A)
|
|
| 630. |
1.121-00044
|
[1] |
NUT;LOCK
|
|
| 631. |
K9001837
|
[1] |
SLEEVE;PF
|
|
| 641. |
K9001838
|
[1] |
COVER;PILOT
|
|
| 643. |
1.409-00204
|
[1] |
PISTON;PILOT
|
|
| 644. |
1.131-00170
|
[1] |
SEAT;SPRING(Q)
|
|
| 645. |
1.115-00171
|
[1] |
RING;ADJUST(Q)
|
|
| 646. |
1.131-00157
|
[1] |
SPRING;PILOT
|
|
| 651. |
1.425-00001
|
[1] |
SLEEVE
|
|
| 652. |
1.424-00038
|
[1] |
SPOOL(A)
|
|
| 653. |
1.131-00166
|
[1] |
SEAT;SPRING
|
|
| 654. |
1.131-00160
|
[1] |
SPRING;RETURN
|
|
| 655. |
1.131-00172
|
[1] |
SPRING;SET
|
|
| 656. |
1.430-00017
|
[1] |
COVER
|
|
| 708. |
S8010755
|
[1] |
O-RING 1BG-75
|
|
| 722. |
S8000061
|
[3] |
O-RING
|
|
| 724. |
S8000085
|
[9] |
O-RING
|
|
| 725. |
S8000111
|
[1] |
O-RING
|
|
| 728. |
S8000181
|
[1] |
O-RING
|
|
| 730. |
S8000221
|
[1] |
O-RING
|
|
| 732. |
S8000161
|
[1] |
O-RING
|
|
| 733. |
S8000201
|
[1] |
O-RING
|
|
| 734. |
S8010251
|
[1] |
O-RING
|
|
| 735. |
S8002721
|
[1] |
O-RING
|
|
| 755. |
S8000111
|
[2] |
O-RING
|
|
| 756. |
S8000261
|
[1] |
O-RING
|
|
| 763. |
S8010351
|
[1] |
O-RING
|
|
| 801. |
S4012533
|
[2] |
NUT
|
|
| 814. |
S6500100
|
[1] |
RING,SNAP
|
|
| 836. |
1.115-00366
|
[1] |
RING;STOP
|
|
| 858. |
S6510150
|
[2] |
RING,SNAP
|
|
| 874. |
1.123-00007
|
[1] |
PIN
|
|
| 875. |
1.123-00012
|
[2] |
PIN
|
|
| 876. |
1.123-00014
|
[2] |
PIN
|
|
| 887. |
1.123-00009
|
[1] |
PIN
|
|
| 897. |
1.123-00016
|
[1] |
PIN
|
|
| 898. |
K9001839
|
[1] |
PIN
|
|
| 924. |
S3524008
|
[1] |
SCREW,SET
|
|
| 925. |
120-00199
|
[1] |
SCREW,ADJUST(Qi)
|
|
