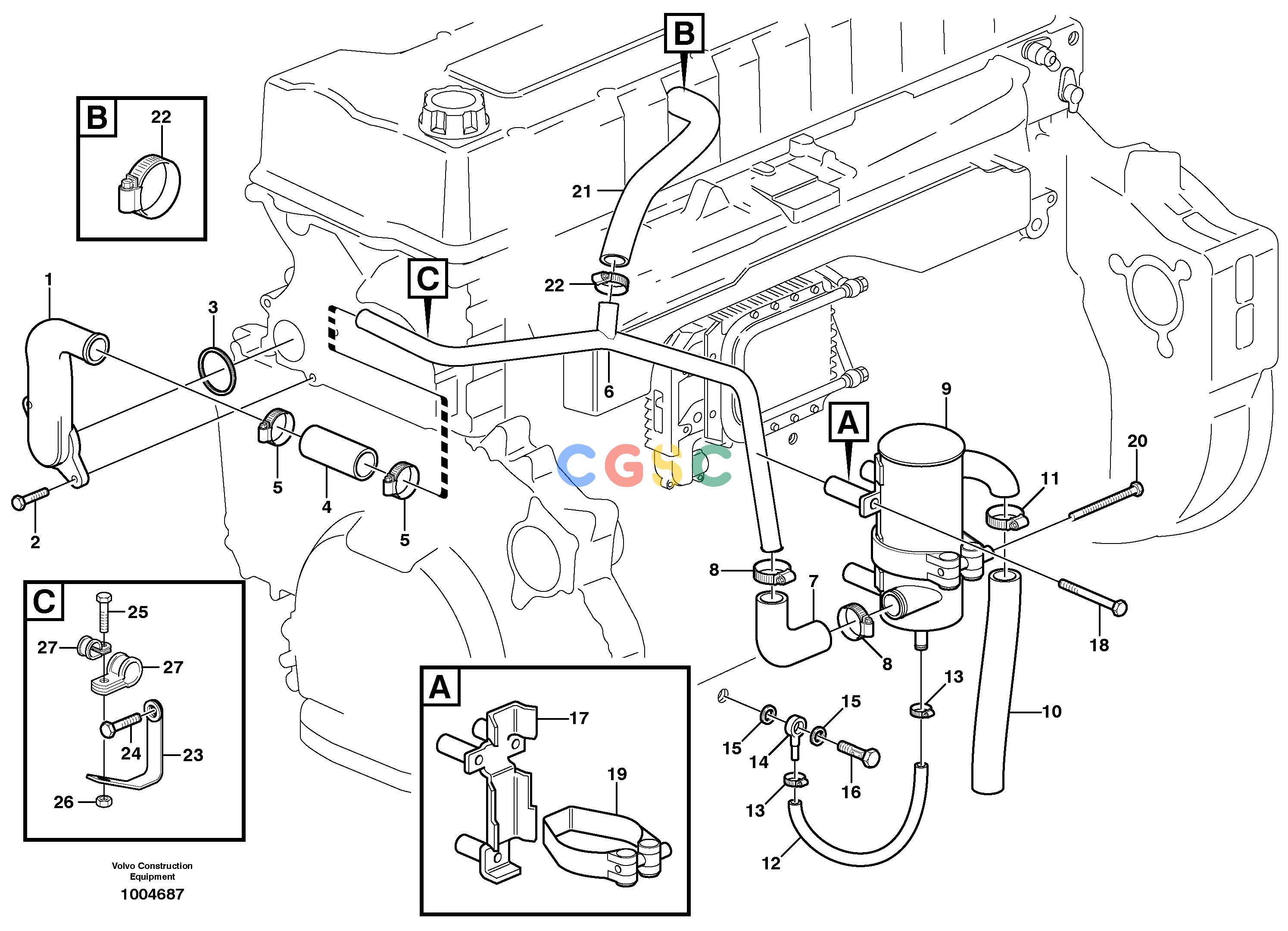

沃尔沃零件查询A40D Crankcase ventilationS/N 10001 - 14283 SWE S/N 70001 - 70374 BRA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11127358
|
[1] |
Flange pipe
|
|
| 2. |
VOE13945444
|
[2] |
Screw
|
|
| 3. |
VOE3165097
|
[3] |
Sealing ring
|
|
| 4. |
VOE11128750
|
[0001] |
Hose
|
L = 100
|
| 5. |
VOE943476
|
[2] |
Hose clamp
|
|
| 6. |
VOE11128612
|
[1] |
Pipe
|
ENG - 427820
|
| |
VOE11423117
|
[1] |
Tube
|
ENG 427821 -
|
| 7. |
VOE11128756
|
[1] |
Hose
|
|
| 8. |
VOE943476
|
[2] |
Hose clamp
|
|
| 9. |
VOE11033878
|
[1] |
Oil trap
|
|
| 10. |
VOE941799
|
[REQ] |
Hose
|
L = 550
|
| 11. |
VOE11059294
|
[1] |
Hose clamp
|
|
| 12. |
VOE983342
|
[REQ] |
Hose
|
L = 520
|
| 13. |
VOE943471
|
[2] |
Hose clamp
|
|
| 14. |
VOE11423224
|
[1] |
Tube
|
|
| 15. |
VOE976929
|
[2] |
Gasket
|
|
| 16. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 17. |
VOE11423146
|
[1] |
Attachment
|
|
| 18. |
VOE984758
|
[3] |
Flange screw
|
|
| 19. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 20. |
VOE1545257
|
[1] |
Screw
|
|
| 21. |
VOE11128751
|
[1] |
Hose
|
ENG - 427820
|
| |
VOE11128752
|
[0001] |
Hose
|
ENG 427821 -
|
| 22. |
VOE943476
|
[2] |
Hose clamp
|
|
| 23. |
VOE11127553
|
[1] |
Bracket
|
|
| 24. |
VOE969313
|
[1] |
Flange screw
|
|
| 25. |
VOE946934
|
[1] |
Flange screw
|
|
| 26. |
VOE945407
|
[1] |
Flange nut
|
|
| 27. |
VOE952638
|
[1] |
Clamp
|
|
