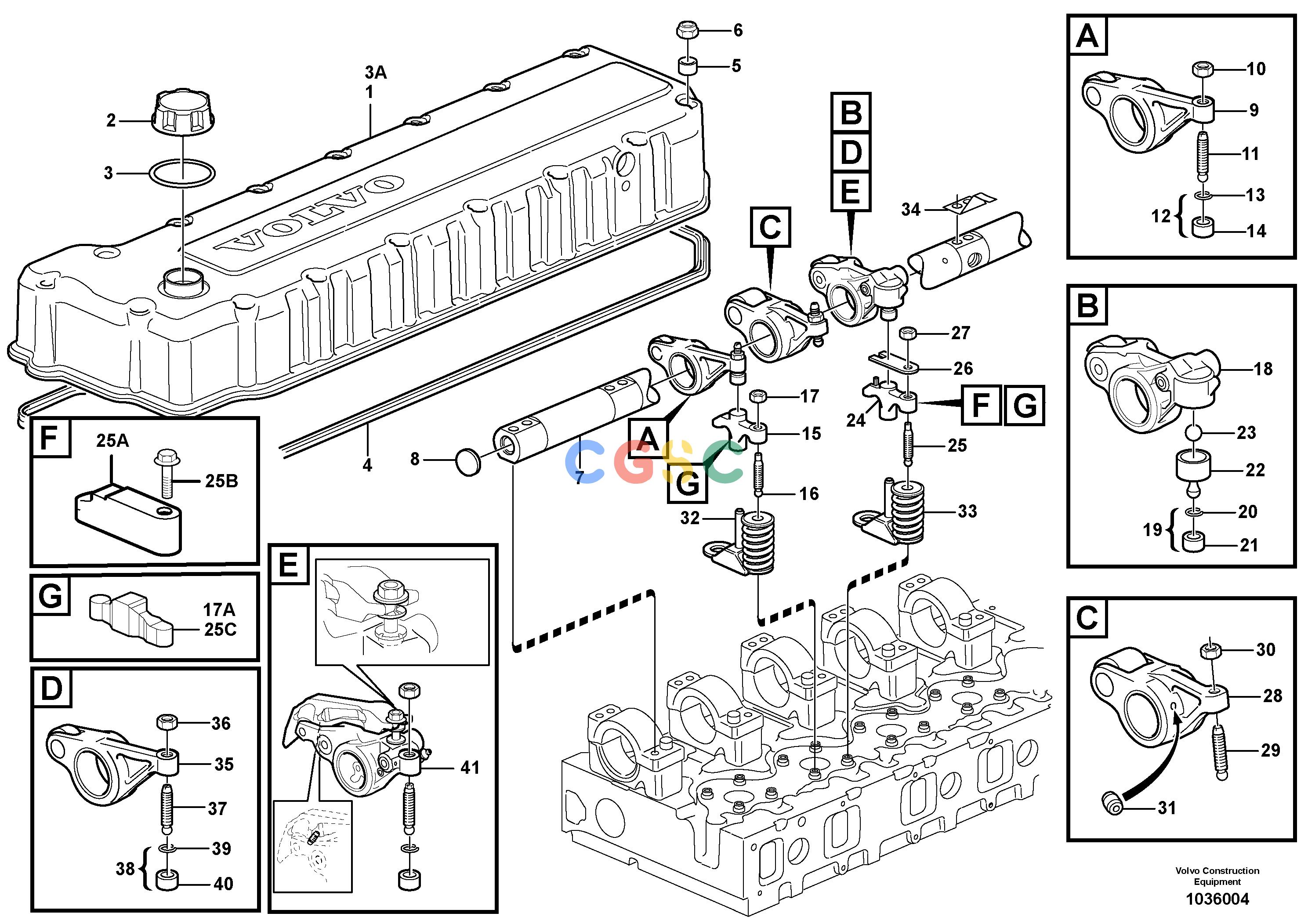

沃尔沃零件查询A40D Valve mechanismS/N 10001 - 14283 SWE S/N 70001 - 70374 BRA8188166, 8188171-8188778, 8188779VOE8188166NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8130100
|
[1] |
Valve cover
|
ENG - 296258
|
| 40. |
|
[6] |
Ball socket
|
|
| 41. |
|
|
Rocker Arm
|
EXHAUST
|
| 2. |
VOE1675839
|
[1] |
Oil filler cap
|
|
| 3. |
VOE1675841
|
[1] |
Gasket
|
|
| 3A. |
VOE20545676
|
[1] |
Valve Cover
|
ENG 296159 -
|
| |
VOE20545676
|
|
Valve Cover
|
|
| 4. |
VOE21123014
|
[1] |
Sealing strip
|
|
| |
VOE21123014
|
|
Sealing strip
|
|
| 5. |
VOE3964604
|
[16] |
Bushing
|
|
| 6. |
VOE8148488
|
[16] |
Lock nut
|
|
| 7. |
VOE8170158
|
[1] |
Rocker arm shaft
|
|
| 8. |
VOE980176
|
[2] |
Expansion plug
|
|
| 9. |
VOE21024794
|
[6] |
Rocker arm
|
INLET
|
| |
VOE21024794
|
|
Rocker arm
|
|
| 10. |
VOE13946911
|
[6] |
Nut
|
|
| 11. |
VOE1546458
|
[6] |
Ball stud
|
|
| 12. |
VOE20441753
|
[6] |
Ball socket
|
|
| 13. |
VOE944364
|
[6] |
O-ring
|
|
| 14. |
|
[6] |
Ball socket
|
|
| 15. |
VOE1547919
|
[6] |
Yoke
|
ENG - 286878
|
| 16. |
VOE1543368
|
[6] |
Adjusting screw
|
|
| 17. |
VOE13946911
|
[6] |
Nut
|
|
| 17A. |
VOE3183207
|
[6] |
Valve cap
|
ENG 286879 -
|
| |
VOE3183207
|
|
Valve cap
|
|
| 18. |
VOE21132207
|
[6] |
Rocker Arm
|
VEB
|
| 19. |
VOE20441753
|
[6] |
Ball socket
|
|
| 20. |
VOE944364
|
[6] |
O-ring
|
|
| 21. |
VOE20441755
|
[6] |
Ball socket
|
|
| 22. |
VOE20571206
|
[6] |
Piston
|
|
| 23. |
VOE67089
|
[6] |
Ball
|
|
| 24. |
VOE1547929
|
[6] |
Valve cap
|
ENG - 366819
|
| 25. |
VOE1547924
|
[6] |
Adjusting screw
|
|
| 25A. |
VOE20509561
|
[6] |
Valve bridge
|
ENG 366820 -
|
| |
VOE20509561
|
|
Valve bridge
|
|
| 25B. |
VOE13946670
|
[6] |
Flange screw
|
ENG 366820 -
|
| |
VOE13946670
|
|
Flange screw
|
|
| 25C. |
VOE3183207
|
|
Valve cap
|
|
| 26. |
VOE1547967
|
[REQ] |
Shim
|
THICK 2.00 MM
|
| |
VOE1547968
|
[REQ] |
Shim
|
THICK 2.05 MM
|
| |
VOE1547969
|
[REQ] |
Shim
|
THICK 2.10 MM
|
| |
VOE1547970
|
[REQ] |
Shim
|
THICK 2.15 MM
|
| |
VOE1547971
|
[REQ] |
Shim
|
THICK 2.20 MM
|
| |
VOE1547972
|
[REQ] |
Shim
|
THICK 2.25 MM
|
| |
VOE1547973
|
[REQ] |
Shim
|
THICK 2.30 MM
|
| |
VOE1547974
|
[REQ] |
Shim
|
THICK 2.35 MM
|
| |
VOE1547975
|
[REQ] |
Shim
|
THICK 2.40 MM
|
| |
VOE1547976
|
[REQ] |
Shim
|
THICK 2.45 MM
|
| |
VOE1547977
|
[REQ] |
Shim
|
THICK 2.50 MM
|
| |
VOE1547978
|
[REQ] |
Shim
|
THICK 2.55 MM
|
| |
VOE1547979
|
[REQ] |
Shim
|
THICK 2.60 MM
|
| |
VOE1547980
|
[REQ] |
Shim
|
THICK 2.65 MM
|
| |
VOE1547981
|
[REQ] |
Shim
|
THICK 2.70 MM
|
| |
VOE1547982
|
[REQ] |
Shim
|
THICK 2.75 MM
|
| |
VOE1547983
|
[REQ] |
Shim
|
THICK 2.80 MM
|
| |
VOE1547984
|
[REQ] |
Shim
|
THICK 2.85 MM
|
| |
VOE1677347
|
[REQ] |
Shim
|
THICK 2.90 MM
|
| |
VOE1677348
|
[REQ] |
Shim
|
THICK 2.95 MM
|
| |
VOE1677349
|
[REQ] |
Shim
|
THICK 3.00 MM
|
| |
VOE1677350
|
[REQ] |
Shim
|
THICK 3.05 MM
|
| |
VOE1677351
|
[REQ] |
Shim
|
THICK 3.10 MM
|
| |
VOE1677352
|
[REQ] |
Shim
|
THICK 3.15 MM
|
| |
VOE1677353
|
[REQ] |
Shim
|
THICK 3.20 MM
|
| |
VOE1677354
|
[REQ] |
Shim
|
THICK 3.25 MM
|
| |
VOE1677355
|
[REQ] |
Shim
|
THICK 3.30 MM
|
| |
VOE1677356
|
[REQ] |
Shim
|
THICK 3.35 MM
|
| |
VOE1677357
|
[REQ] |
Shim
|
THICK 3.40 MM
|
| |
VOE1677358
|
[REQ] |
Shim
|
THICK 3.45 MM
|
| |
VOE1677359
|
[REQ] |
Shim
|
THICK 3.50 MM
|
| |
VOE1677360
|
[REQ] |
Shim
|
THICK 3.55 MM
|
| |
VOE1677361
|
[REQ] |
Shim
|
THICK 3.60 MM
|
| |
VOE1677362
|
[REQ] |
Shim
|
THICK 3.65 MM
|
| |
VOE1677363
|
[REQ] |
Shim
|
THICK 3.70 MM
|
| |
VOE1677364
|
[REQ] |
Shim
|
THICK 3.75 MM
|
| |
VOE1677365
|
[REQ] |
Shim
|
THICK 3.80 MM
|
| |
VOE1677366
|
[REQ] |
Shim
|
THICK 3.85 MM
|
| |
VOE1677367
|
[REQ] |
Shim
|
THICK 3.90 MM
|
| |
VOE1677368
|
[REQ] |
Shim
|
THICK 3.95 MM
|
| |
VOE11712372
|
[1] |
Shim kit
|
|
| 27. |
VOE1677713
|
[6] |
Flange nut
|
|
| 28. |
VOE21089229
|
[6] |
Rocker arm
|
INJECTOR
|
| 29. |
VOE1546775
|
[6] |
Ball stud
|
|
| 30. |
VOE1677396
|
[6] |
Hexagon nut
|
|
| 31. |
VOE3964817
|
[12] |
Jet
|
|
| 32. |
|
[12] |
Guide pin
|
|
| 33. |
|
[24] |
Valve spring
|
|
| 34. |
VOE20570748
|
[6] |
Leaf Spring
|
|
| 35. |
VOE21024789
|
[6] |
Rocker arm
|
EXHAUST
|
| 36. |
VOE13946911
|
[6] |
Nut
|
|
| 37. |
VOE1546458
|
[6] |
Ball stud
|
|
| 38. |
VOE20441753
|
[6] |
Ball socket
|
|
| 39. |
VOE944364
|
[6] |
O-ring
|
|
