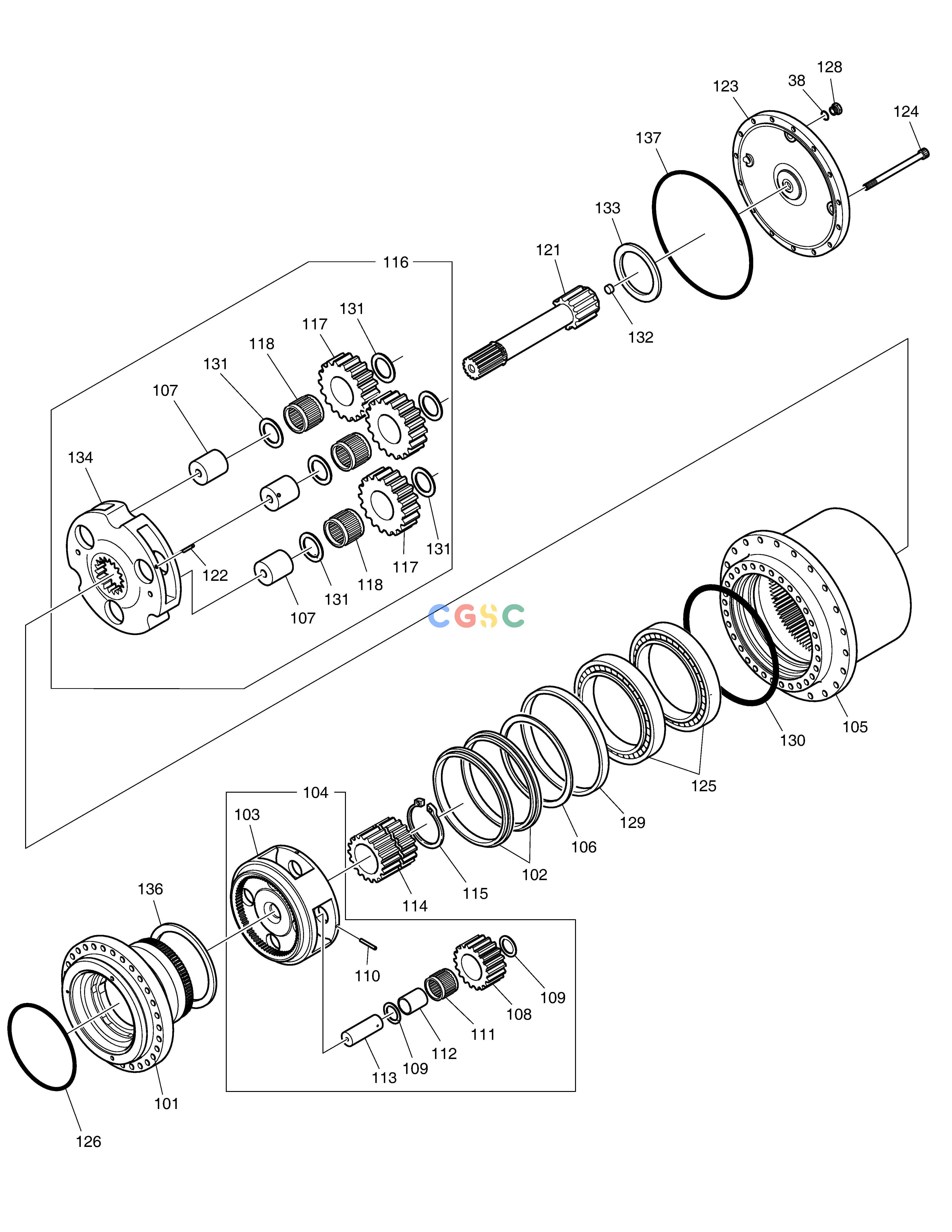

斗山零件查询TRAVEL REDUCTION GEAR DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9007404
|
[1] |
REDUCTION GEAR
|
170402-00028
|
| -. |
170402-00028
|
[1] |
|
|
| 101. |
K9007383
|
[1] |
SPINDLE
|
K9007383A
|
| 101. |
K9007383A
|
[1] |
|
|
| 102. |
1.180-00512
|
[1] |
SEAL;FLOATING
|
|
| 103. |
NA00325
|
[1] |
|
|
| 104. |
K9007412
|
[1] |
CARRIER NO 2 ASSY
|
|
| 105. |
K9007384
|
[1] |
HUB
|
|
| 105. |
900122-00079
|
[1] |
|
|
| 106. |
1.540-00003
|
[1] |
PIECE;DISTANCE
|
|
| 107. |
K9007388
|
[3] |
BEARING;SHAFT
|
|
| 108. |
K9007393
|
[4] |
GEAR;PLANETARY
|
|
| 109. |
K9007394
|
[8] |
WASHER;THRUST
|
|
| 110. |
S5740960
|
[4] |
PIN;SPRING
|
|
| 111. |
K9007402
|
[4] |
BEARING;NEEDLE
|
|
| 112. |
K9007396
|
[4] |
BUSH;FLOATING
|
|
| 113. |
K9007392
|
[4] |
SHAFT
|
|
| 114. |
K9007391
|
[1] |
GEAR;SUN
|
|
| 115. |
S6500750
|
[1] |
RING;RETAINING
|
|
| 116. |
K9007411
|
[1] |
CARRIER NO 1 ASSY
|
|
| 117. |
K9007387
|
[3] |
GEAR;PLANETARY
|
|
| 118. |
1.216-00017
|
[3] |
CAGE,NEEDLE
|
|
| 121. |
K9007390
|
[1] |
GEAR;DRIVE
|
|
| 122. |
S5740770
|
[3] |
PIN;SPRING
|
|
| 123. |
K9007385
|
[1] |
COVER
|
|
| 123. |
110508-09675
|
[1] |
|
|
| 124. |
S2212266
|
[16] |
BOLT
|
|
| 125. |
K9007403
|
[2] |
BEARING;ANGULAR BALL
|
|
| 126. |
S8012300
|
[1] |
O-RING
|
|
| 128. |
2181-1890D4
|
[3] |
PLUG
|
|
| 129. |
K9007386
|
[1] |
RING;SEAL
|
K9007386A
|
| 129. |
K9007386A
|
[1] |
|
|
| 130. |
1.180-00144
|
[1] |
O-RING
|
|
| 131. |
K9007389
|
[6] |
WASHER;THRUST
|
|
| 132. |
K9004304
|
[1] |
WASHER;THRUST
|
|
| 133. |
1.412-00157
|
[1] |
PLATE;THRUST
|
|
| 134. |
NA00324
|
[1] |
|
|
| 136. |
K9007395
|
[2] |
PLATE;SHIM
|
K9007395A
|
| 136. |
K9007395A
|
[2] |
|
|
| 137. |
401002-00739
|
[1] |
|
|
| 38. |
S8000181
|
[3] |
O-RING
|
|
