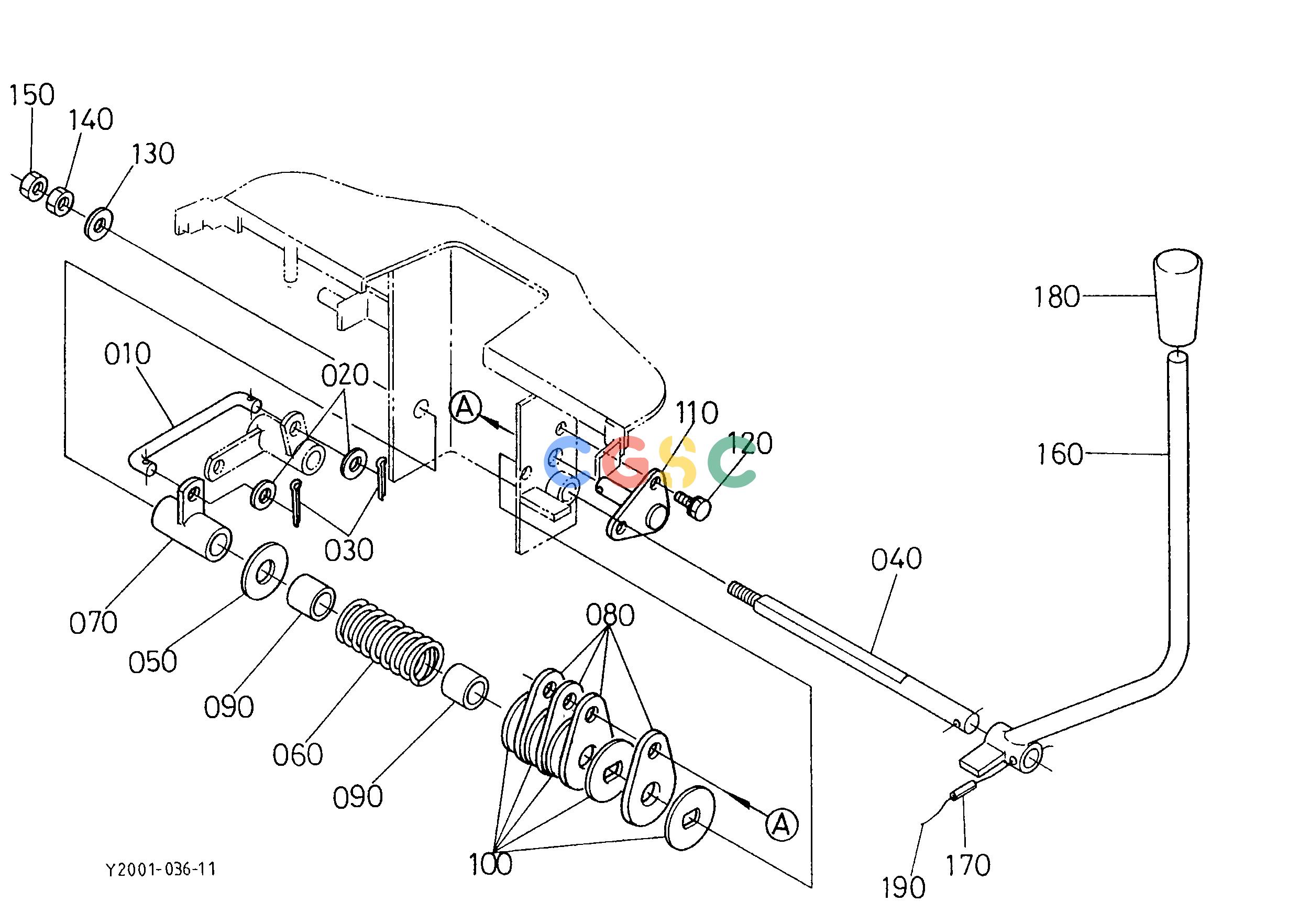

久保田零件查询T06400 SPEED SET LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
191 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706143550
|
[1] |
ROD
|
0.1100(lbs); 0.050
|
| 020. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 040. |
6641743570
|
[1] |
SHAFT SPEED LOCK
|
0.3300(lbs); 0.150
|
| 050. |
0401360120
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 060. |
6630143590
|
[1] |
SPRING
|
0.1540(lbs); 0.070
|
| 070. |
6641743590
|
[1] |
ARM
|
0.1540(lbs); 0.070
|
| 080. |
6630143610
|
[4] |
LEVER DISK
|
0.0220(lbs); 0.010
|
| 080. |
6641943660
|
[4] |
LEVER DISK
|
0.0000(lbs); 0.000
|
| 090. |
6630143660
|
[2] |
SEALING
|
0.0066(lbs); 0.003
|
| 100. |
6630143620
|
[5] |
PLATE STEEL
|
0.0264(lbs); 0.012
|
| 110. |
6641743540
|
[1] |
WASHER LOCK
|
0.1100(lbs); 0.050
|
| 120. |
0102350618
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 130. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 140. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 150. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 160. |
6641743470
|
[1] |
LEVER SPEED LOCK
|
0.9460(lbs); 0.430
|
| 170. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 180. |
5420123270
|
[1] |
GRIP
|
0.0440(lbs); 0.020
|
| 190. |
9999999999
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
