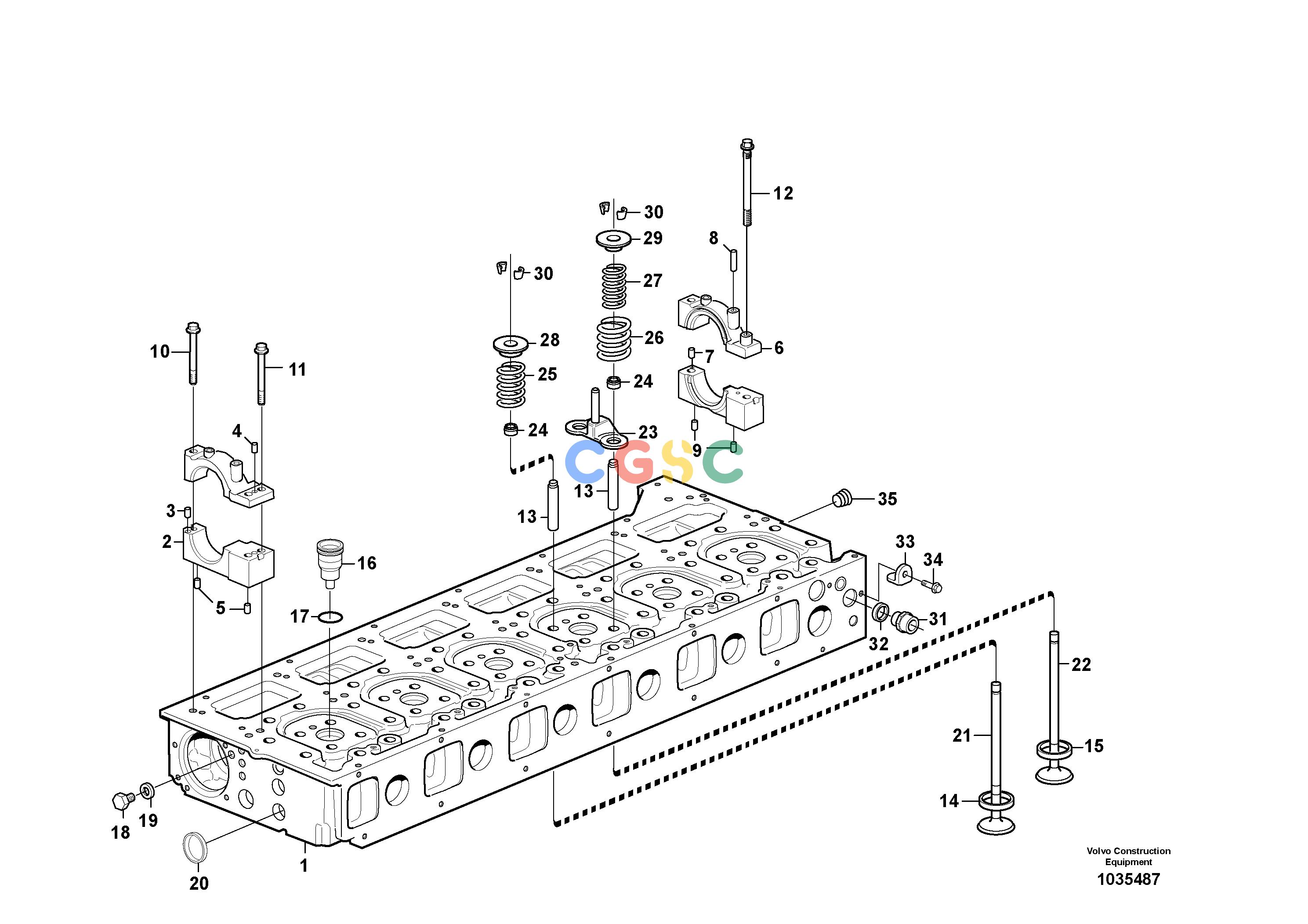

沃尔沃零件查询A40E Cylinder headS/N 11001 - 13879 NoneNoneENG - 21775Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE21072139
|
[1] |
Cylinder head
|
|
| |
|
[1] |
Cylinder head
|
|
| 1. |
VOE20743237
|
[1] |
Cylinder head
|
|
| 2. |
VOE20946882
|
[6] |
Bearing housing
|
|
| 3. |
VOE950542
|
[6] |
Pin
|
|
| 4. |
VOE950550
|
[6] |
Pin
|
|
| 5. |
VOE950562
|
[12] |
Pin
|
|
| 6. |
VOE20946876
|
[1] |
Bearing housing
|
|
| 7. |
VOE950542
|
[1] |
Pin
|
|
| 8. |
VOE1636468
|
[1] |
Sleeve
|
|
| 9. |
VOE950562
|
[2] |
Pin
|
|
| 10. |
VOE13975105
|
[7] |
Flange screw
|
|
| 11. |
VOE21344753
|
[12] |
Flange screw
|
|
| 12. |
VOE20412482
|
[1] |
Flange screw
|
|
| 13. |
VOE21067953
|
[24] |
Valve guide
|
|
| 14. |
VOE20709467
|
[12] |
Valve seat
|
|
| 15. |
VOE20564028
|
[12] |
Valve seat
|
|
| 16. |
VOE20750913
|
[6] |
Sleeve
|
|
| 17. |
VOE20536487
|
[6] |
O-ring
|
|
| 18. |
VOE960628
|
[1] |
Plug
|
|
| 19. |
VOE13947281
|
[1] |
Gasket
|
|
| 20. |
VOE24426721
|
[16] |
Expansion plug
|
OD = 29 MM
|
| |
VOE24426722
|
[6] |
Expansion plug
|
OD = 40 MM
|
| |
VOE24426723
|
[6] |
Expansion plug
|
OD = 50 MM
|
| 21. |
VOE20739057
|
[12] |
Inlet valve
|
INLET
|
| 22. |
VOE20513285
|
[12] |
Exhaust valve
|
EXHAUST
|
| 23. |
VOE20554268
|
[6] |
Guide pin
|
|
| 24. |
VOE20924435
|
[24] |
Valve stem seal
|
|
| 25. |
VOE21326667
|
[12] |
Valve spring
|
|
| |
VOE21591053
|
[12] |
Valve spring
|
|
| 26. |
VOE21476570
|
[12] |
Valve spring
|
|
| 27. |
VOE21324296
|
[12] |
Valve spring
|
|
| 28. |
VOE8131328
|
[12] |
Valve spring washer
|
|
| 29. |
VOE20551396
|
[12] |
Valve spring washer
|
|
| 30. |
VOE8170995
|
[48] |
Valve cotter
|
|
| 31. |
VOE20845995
|
[1] |
Plug
|
|
| 32. |
VOE1547252
|
[1] |
Sealing ring
|
|
| 33. |
VOE20844430
|
[1] |
Lock brace
|
|
| 34. |
VOE947107
|
[1] |
Flange screw
|
|
| 35. |
VOE13968062
|
[1] |
Plug
|
|
