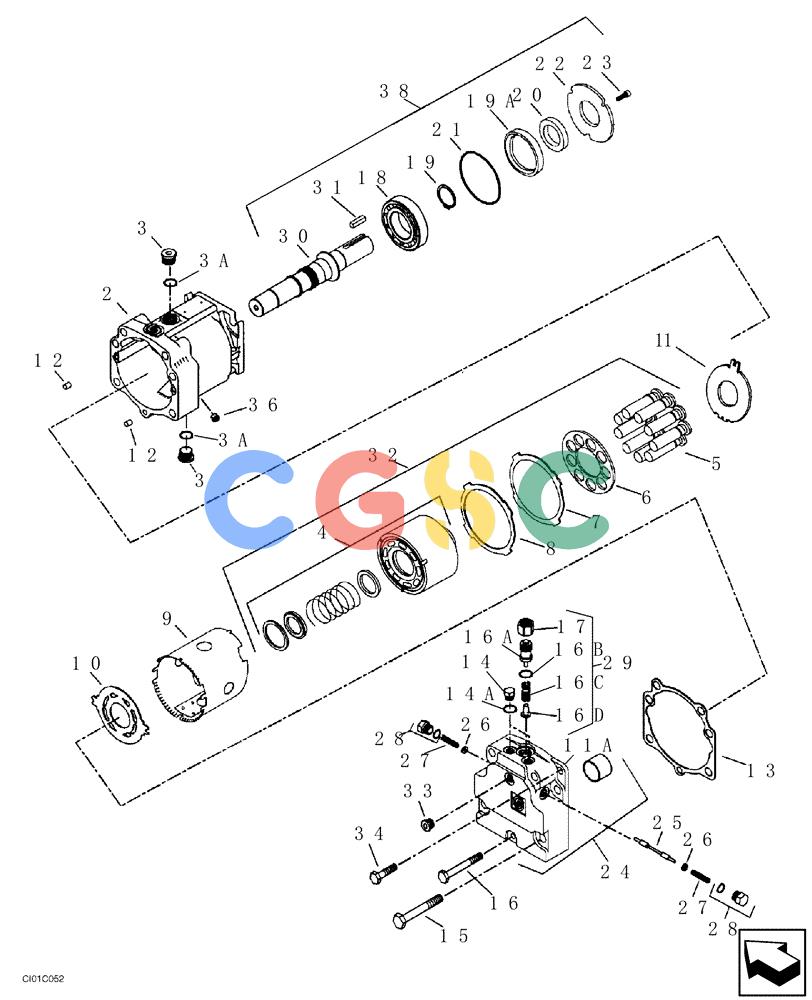

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (10-015-00[01]) - HYDRAULIC MOTOR - VIBRATION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND090922 | [1] | HYDRAULIC MOTOR | STA |
| . . | ND102408 | [1] | SEAL KIT | STA |
| 2. | ND102529 | [1] | BOX | STA |
| 3. | ND102302 | [2] | PLUG | STA |
| 3A. | ND102298 | [1] | O-RING | STA |
| 4. | ND102556 | [1] | CYLINDER BLOCK | STA |
| 5. | ND102523 | [9] | PISTON ASSY | STA |
| 6. | ND102546 | [1] | RETAINER | STA |
| 7. | ND102533 | [1] | GUIDE | STA |
| 8. | ND102397 | [1] | GUIDE | STA |
| 9. | ND102531 | [1] | HOUSING | STA |
| 10. | ND102383 | [1] | PLATE | STA |
| 11. | ND102396 | [1] | PLATE | STA |
| 11A. | ND102460 | [1] | COVER | STA |
| 12. | ND102301 | [2] | PIN | STA |
| 13. | ND102535 | [1] | GASKET | STA |
| 14. | ND102307 | [2] | PLUG | STA |
| 14A. | ND102311 | [1] | O-RING | STA |
| 15. | ND102341 | [6] | SCREW | STA |
| 16. | ND102682 | [1] | SCREW | STA |
| 16A. | ND102387 | [1] | SCREW | STA |
| 16C. | ND102339 | [1] | SPRING | STA |
| 16D. | ND102334 | [1] | CONE | STA |
| 17. | ND102337 | [1] | NUT | STA |
| 18. | ND102512 | [1] | BALL BEARING | STA |
| 19. | ND102361 | [1] | SNAP RING | STA |
| 19A. | ND102435 | [1] | GASKET | STA |
| 20. | ND102444 | [1] | SEAL | STA |
| 21. | ND102545 | [1] | O-RING | STA |
| 22. | ND102389 | [1] | PLATE | STA |
| 23. | ND102499 | [3] | SCREW | STA |
| 24. | ND102536 | [1] | COVER | STA |
| 25. | ND102356 | [1] | PISTON | STA |
| 26. | ND102365 | [1] | SPRING CUP | STA |
| 27. | ND102354 | [2] | SPRING | STA |
| 28. | ND102422 | [2] | PLUG | STA |
| 29. | ND102440 | [1] | HYDRAULIC VALVE | STA |
| 30. | ND102560 | [1] | SHAFT | STA |
| 31. | ND102310 | [1] | SPRING | STA |
| 32. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 38. | ND102559 | [1] | SHAFT | STA |
| . . | ND102537 | [2] | PIN | STA |
