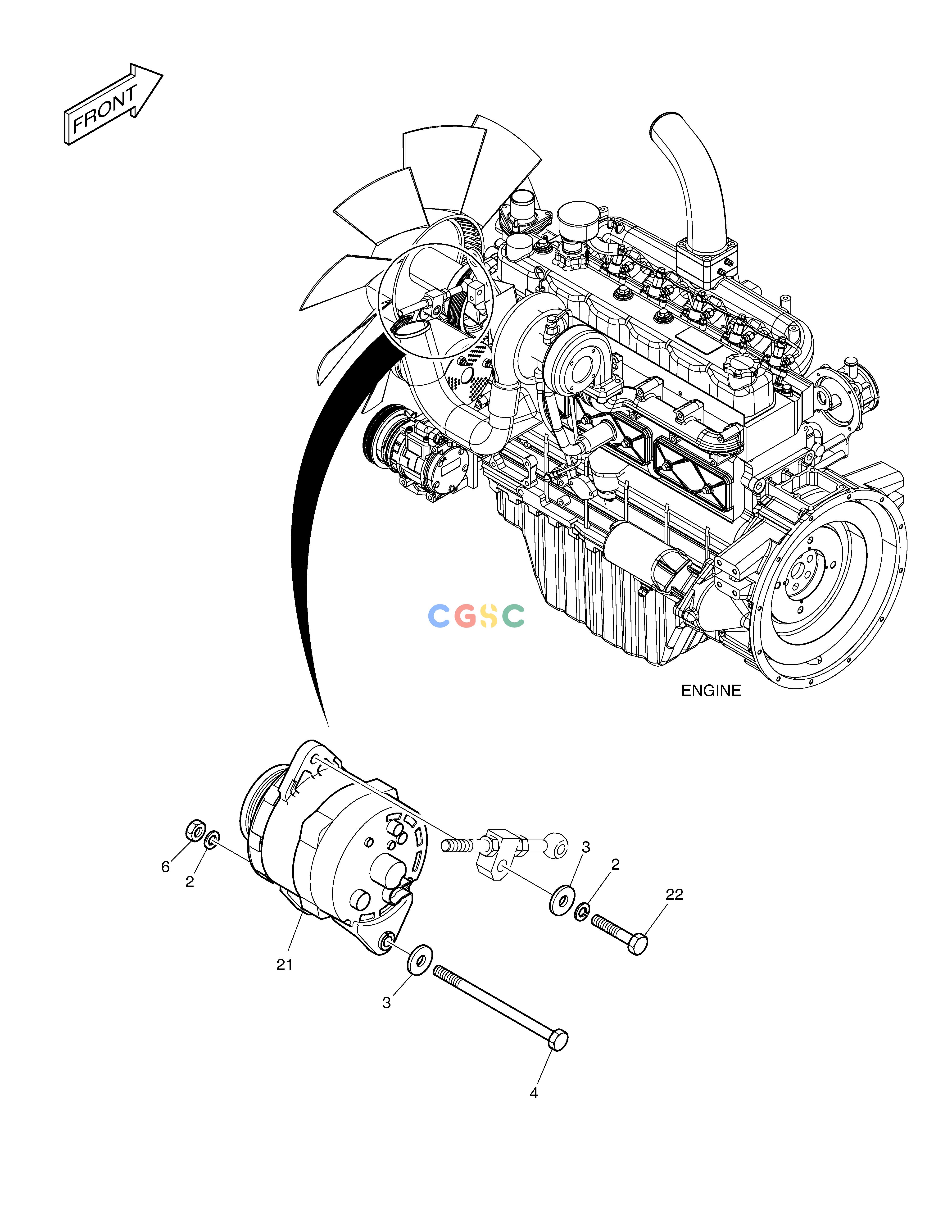

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 300619-01896 | [-] | ||
| 2. | S5102703 | [2] | WASHER | |
| 21. | 2502-9009 | [1] | ALTERNATOR | |
| 22. | S0786653 | [1] | BOLT M12X1.5X55 | |
| 3. | DS0401188 | [2] | WASHER | |
| 4. | S0562666 | [1] | BOLT | |
| 6. | S4012733 | [1] | NUT |
广数供应链运营团队, 14 02月, 2025，浏览： 817 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 300619-01896 | [-] | ||
| 2. | S5102703 | [2] | WASHER | |
| 21. | 2502-9009 | [1] | ALTERNATOR | |
| 22. | S0786653 | [1] | BOLT M12X1.5X55 | |
| 3. | DS0401188 | [2] | WASHER | |
| 4. | S0562666 | [1] | BOLT | |
| 6. | S4012733 | [1] | NUT |
