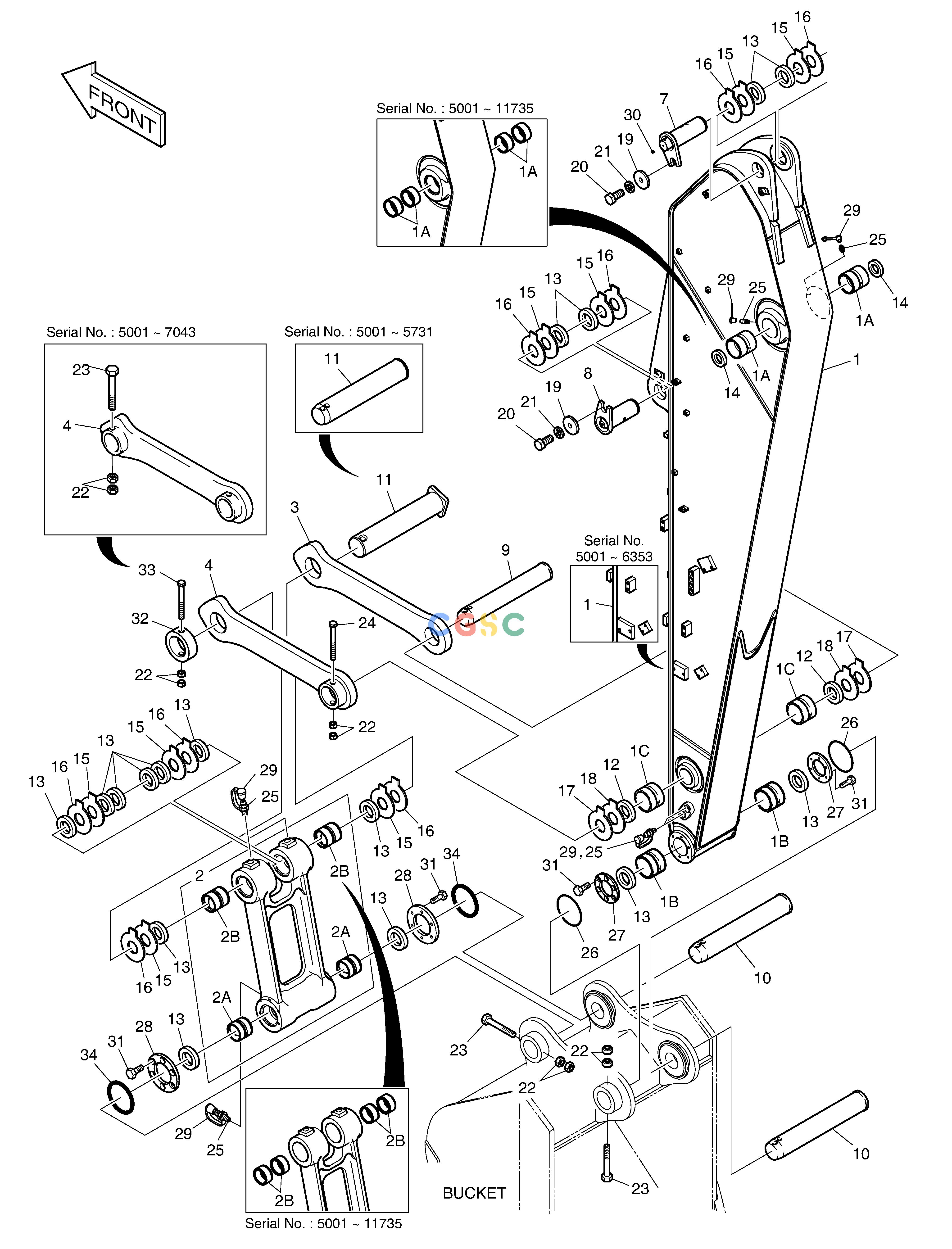

斗山零件查询ARM - 3.5m DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046239E
|
[-] |
ARM ASS'Y
|
|
| -. |
230201-00107
|
[-] |
|
|
| 1. |
K1046250B
|
[1] |
ARM SUB ASS'Y-3.5m
|
|
| 1. |
230204-00086A
|
[1] |
|
|
| 1. |
230204-00086C
|
[1] |
|
|
| 10. |
2123-2192E
|
[2] |
PIN
|
120501-01052
|
| 10. |
120501-01052
|
[2] |
|
|
| 11. |
K1007256A
|
[1] |
PIN
|
120501-00130
|
| 11. |
120501-00130
|
[1] |
|
|
| 12. |
2180-1106BD4
|
[2] |
SEAL;DUST
|
|
| 13. |
2180-1106BD24
|
[14] |
SEAL;DUST
|
|
| 14. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 15. |
DS7752012
|
[8] |
SHIM
|
|
| 16. |
DS7752013
|
[8] |
SHIM
|
|
| 17. |
DS7752006
|
[2] |
SHIM
|
|
| 18. |
DS7752007
|
[2] |
SHIM
|
|
| 19. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 1A. |
K1037848A
|
[4] |
BUSHING
|
131008-00064A
|
| 1A. |
131008-00064A
|
[2] |
|
|
| 1B. |
K1037849A
|
[2] |
BUSHING
|
K1000733
|
| 1B. |
K1000733
|
[2] |
BUSHING
|
|
| 1C. |
K1037850A
|
[2] |
BUSHING
|
K1000734
|
| 1C. |
K1000734
|
[2] |
BUSHING
|
|
| 2. |
K1041214A
|
[1] |
PUSH LINK ASS`Y
|
K1002294
|
| 2. |
K1002294
|
[1] |
PUSH LINK ASS`Y
|
|
| 20. |
S0521366
|
[2] |
BOLT
|
|
| 21. |
S5102903
|
[2] |
WASHER
|
|
| 22. |
S4012933
|
[8] |
NUT
|
|
| 23. |
DS0001084
|
[3] |
BOLT
|
|
| 23. |
DS0001084
|
[2] |
BOLT
|
|
| 24. |
DS0001083
|
[1] |
BOLT
|
|
| 25. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 26. |
180-00077D5
|
[2] |
O-RING
|
|
| 27. |
K1000911
|
[2] |
SPACER
|
|
| 28. |
K1000912B
|
[2] |
SPACER
|
|
| 29. |
160-00020
|
[7] |
CAP
|
|
| 2A. |
K1037852A
|
[2] |
BUSHING
|
110-00249
|
| 2A. |
110-00249
|
[2] |
BUSHING
|
|
| 2B. |
K1037851A
|
[4] |
BUSHING
|
K1000735
|
| 2B. |
K1000735
|
[2] |
BUSHING
|
|
| 3. |
2155-1299B
|
[1] |
LINK;GUIDE(R.H)
|
101540-00012
|
| 3. |
101540-00012
|
[1] |
|
|
| 30. |
2181-1116D1
|
[1] |
PLUG
|
|
| 31. |
S0712066
|
[24] |
BOLT
|
|
| 32. |
2116-1531A
|
[1] |
STOPPER
|
|
| 33. |
S0567066
|
[1] |
BOLT
|
|
| 34. |
180-00077D3
|
[2] |
O-RING
|
|
| 4. |
2155-1300B
|
[1] |
LINK;GUIDE(L.H)
|
|
| 4. |
101540-00028
|
[1] |
|
|
| 7. |
K1046927
|
[1] |
PIN
|
120501-01063
|
| 7. |
120501-01063
|
[1] |
|
|
| 8. |
K1002130A
|
[1] |
PIN
|
120501-01064
|
| 8. |
120501-01064
|
[1] |
|
|
| 9. |
K1007255A
|
[1] |
PIN
|
120501-01065
|
| 9. |
120501-01065
|
[1] |
|
|
