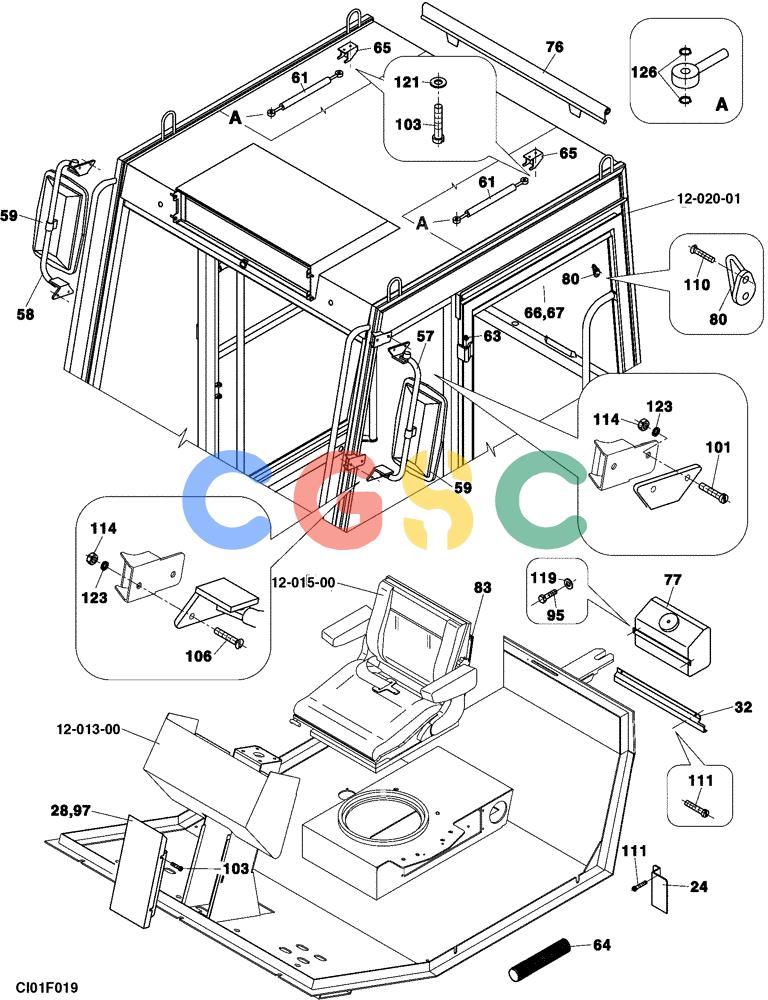

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (12-015-00[01]) - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
255 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 24. | ND103163 | [4] | CLAMP | STA |
| 28. | ND031632 | [1] | COVER | STA |
| 32. | ND103162 | [1] | COVER | STA |
| 50. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 57. | ND064405 | [1] | SUPPORT | STA |
| 58. | ND064406 | [1] | SUPPORT | STA |
| 59. | ND064404 | [2] | REAR VIEW MIRROR | STA Superseded by part number: ND064408 |
| 61. | ND064716 | [2] | GAS STRUT | STA |
| 63. | ND064758 | [6] | PLUG | STA |
| 64. | ND101587 | [1] | HOSE,170.00 mm | STA |
| 65. | ND078515 | [2] | COVER | STA |
| 66. | ND078509 | [12] | INSERT | STA |
| 67. | ND078508 | [12] | CLAMP | STA |
| 76. | ND063885 | [1] | SUNSHADE | STA |
| 77. | ND065424 | [1] | WINDSHIELD WASH RESERVOIR | STA24V |
| 80. | ND089998 | [2] | HOOK | STA |
| 83. | ND090877 | [1] | HOLDER | STA |
| 95. | ND023811 | [2] | BOLT | STAM8 x 16 Superseded by part number: ND021293 |
| 97. | ND021285 | [2] | BOLT | STAM5 x 12 |
| 101. | ND024135 | [4] | BOLT | STAM6 x 16 |
| 103. | ND024121 | [2] | BOLT | STAM5 x 10 |
| 106. | ND024381 | [4] | SCREW | STAM6 x 16 |
| 110. | ND025017 | [2] | BOLT | STAM4 x 16 |
| 111. | ND024966 | [4] | SELF-TAP SCREW | STAM4 x 12 |
| 114. | ND021847 | [8] | NUT | STAM6 |
| 119. | ND029249 | [2] | WASHER | STAID 8,4 |
| 121. | ND029247 | [4] | WASHER | STAID 5,3 |
| 123. | ND029309 | [8] | SPRING WASHER | STAID 6,1 |
| 126. | ND069816 | [4] | SNAP RING | STAID 10 |
