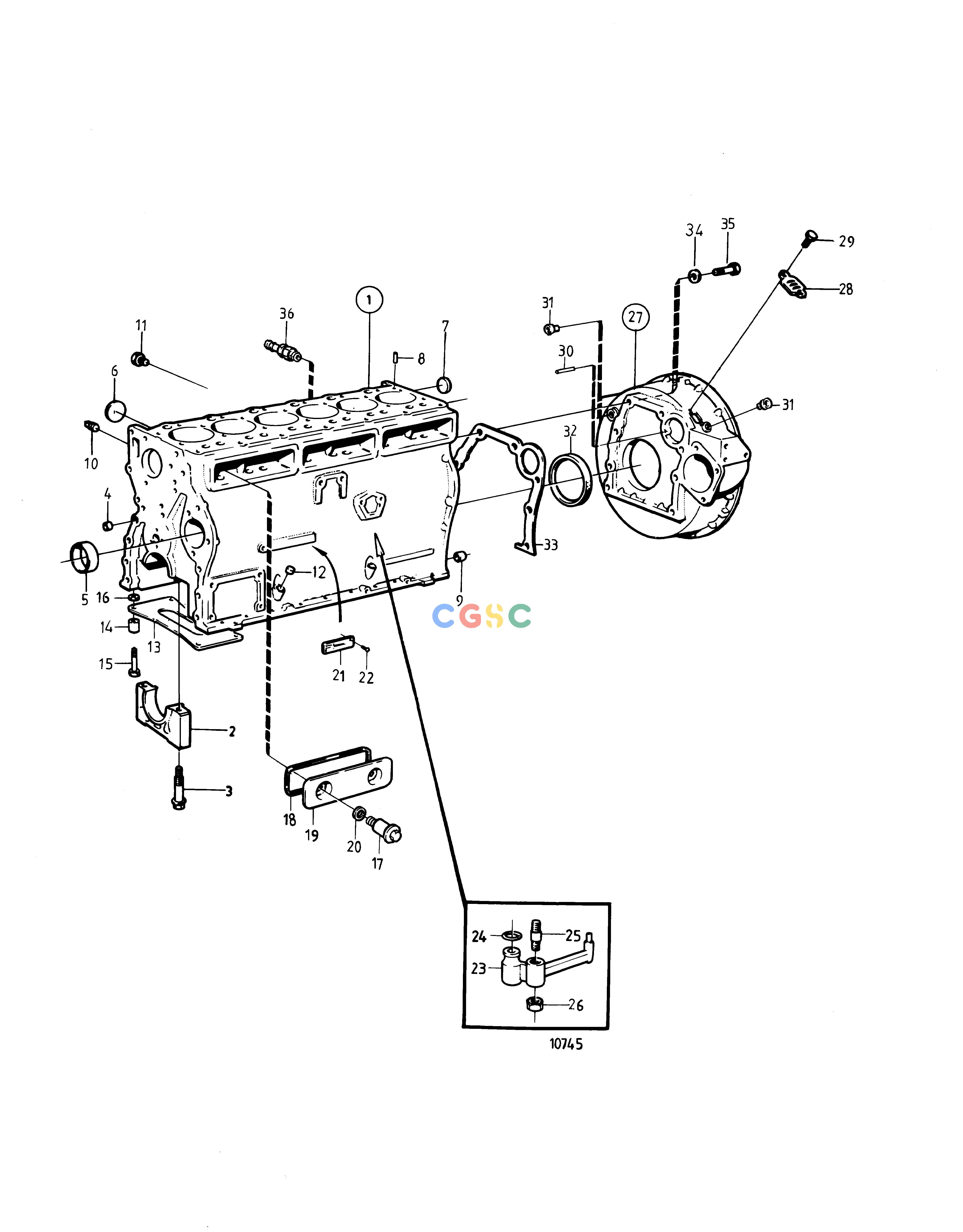

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AEngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861016
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
861005
|
[14] |
Screw
|
|
| 4. |
955083
|
[4] |
Cap plug
|
|
| 5. |
1542067
|
[7] |
Camshaft bushing
|
|
| 6. |
463905
|
[5] |
Expansion plug
|
|
| 7. |
1542263
|
[1] |
Expansion plug
|
|
| 8. |
946402
|
[2] |
Grooved pin
|
|
| 9. |
415311
|
[3] |
Guide sleeve
|
|
| 10. |
479977
|
[2] |
Plug
|
(952077)
|
| 11. |
479979
|
[3] |
Plug
|
(191026)
|
| 12. |
955082
|
[2] |
Cap plug
|
|
| 13. |
|
|
|
|
| 14. |
1545160
|
[4] |
Spacer sleeve
|
|
| 15. |
965187
|
[4] |
Flange screw
|
|
| 16. |
1545204
|
[4] |
Spacer sleeve
|
|
| 17. |
859447
|
[6] |
Shoulder screw
|
|
| 18. |
1542052
|
[3] |
Seal
|
|
| 19. |
1542050
|
[3] |
Inspection lid
|
|
| 20. |
469846
|
[6] |
Sealing ring
|
|
| 21. |
|
|
|
|
| 22. |
950885
|
[2] |
Drive screw
|
|
| 23. |
1542320
|
[6] |
Oil jet
|
|
| 24. |
955981
|
[6] |
O-ring
|
|
| 25. |
1542380
|
[6] |
Stud
|
|
| 26. |
946035
|
[6] |
Lock nut
|
|
| 27. |
860690
|
[1] |
Flywheel housing
|
|
| 28. |
407092
|
[1] |
Cover
|
|
| 29. |
965175
|
[2] |
Flange screw
|
|
| 30. |
404069
|
[1] |
Pin
|
|
| 31. |
860926
|
[2] |
Plug
|
|
| 32. |
3582851
|
[1] |
Sealing ring
|
|
| 33. |
829487
|
[1] |
Gasket
|
|
| 34. |
941908
|
[8] |
Spring washer
|
|
| 35. |
965185
|
[6] |
Flange screw
|
L=40mm
|
| 35. |
965220
|
[2] |
Flange screw
|
L=45mm
|
| 36. |
947893
|
[1] |
Shut-off cock
|
|
