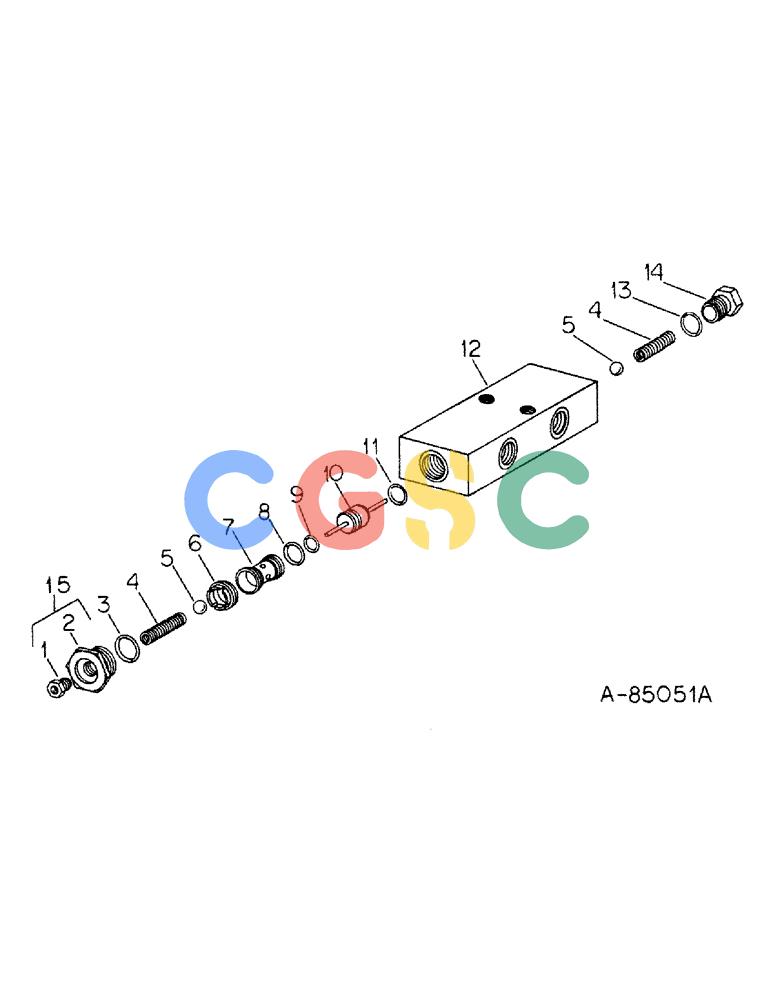

凯斯零件查询(2400) - INTERNATIONAL HARVESTER ROUND BALER (1/79-12/86) (B-31) - DOUBLE ACTION CHECK VALVE ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
673293R92
|
[1] |
VALVE
|
IH
ASSY, double check consists of the following parts
|
| 1. |
385702R91
|
[1] |
VALVE
|
IH
ASSY, thermal relief
|
| 2. |
377594R1
|
[1] |
PLUG
|
IH
check valve relief
|
| 3. |
368269R1
|
[1] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
IH
59/64 x 1-1/16 x 7/64 check valve relief plug Superseded by part number: 167266
|
| 4. |
372649R1
|
[2] |
SPRING
|
IH
check valve
|
| 5. |
17016R1
|
[2] |
BALL,1/2" Dia
|
IH
Check valve 1/2" Dia Superseded by part number: 211-1016
|
| 6. |
374172R1
|
[1] |
NUT
|
IH
check valve ball retainer
|
| 7. |
674540R1
|
[1] |
RETAINER
|
IH
check valve ball
|
| 8. |
384943R1
|
[1] |
O-RING,0.739" ID x 0.07" Width
|
IH
-018, 90 Duro, .739" ID x .070" Thk Ball Retainer Superseded by part number: G107675
|
| 9. |
383024R1
|
[1] |
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
|
IH
11/16 x 13/16 x 1/16 ball retainer Superseded by part number: 9861410
|
| 10. |
374085R11
|
[1] |
PISTON
|
IH
ASSY, check valve actuator
|
| 11. |
606271C1
|
[1] |
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
|
IH
5/8 x 13/16 x 3/32, check valve piston Superseded by part number: 9626944
|
| 13. |
364885R1
|
[1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
IH
3/4 x 15/16 x 3/32 check valve small Superseded by part number: 167269
|
| 14. |
374089R1
|
[1] |
PLUG
|
IH
check valve small
|
| 15. |
385559R91
|
[1] |
PLUG
|
IH
VALVE & PLUG ASSY
|
