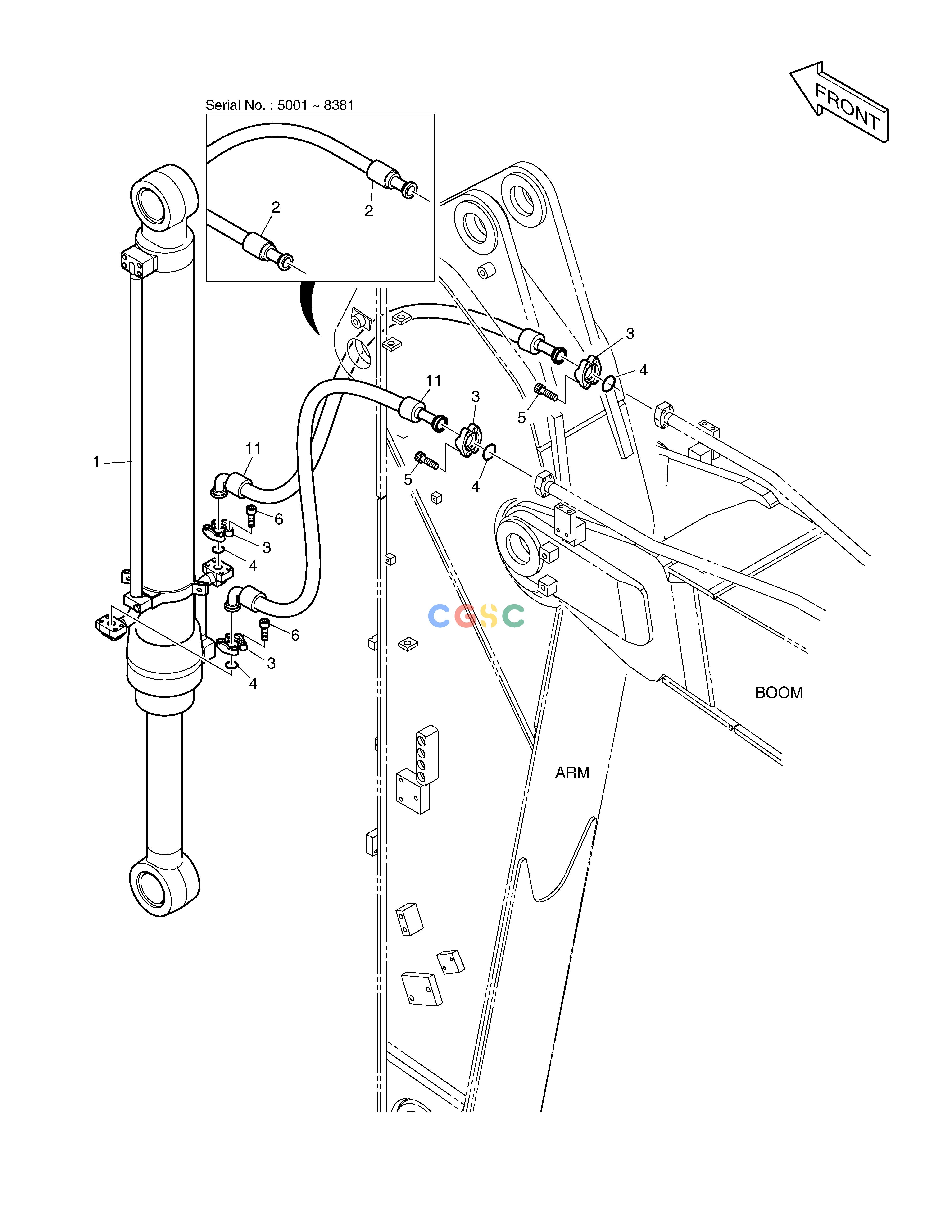

斗山零件查询ARM PIPING - ARM 2.4m DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
564 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046328
|
[-] |
ARM PIPING
|
|
| -. |
420212-05429
|
[-] |
|
|
| 1. |
K1046326
|
[1] |
CYLINDER;BUCKET
|
400310-00215
|
| 1. |
400310-00215
|
[1] |
|
400310-00215A
|
| 1. |
400310-00215A
|
[1] |
|
400310-00215B
|
| 1. |
400310-00215B
|
[1] |
|
400310-00508
|
| 1. |
400310-00508
|
[1] |
|
|
| 1. |
400310-00508A
|
[1] |
|
|
| 11. |
DS2130008
|
[2] |
|
DS20401141
|
| 11. |
DS20401141
|
[2] |
|
|
| 2. |
2184-1100D59
|
[2] |
HOSE
|
|
| 3. |
2181-9079
|
[8] |
FLANGE
|
|
| 4. |
2180-1026D2
|
[4] |
O-RING
|
|
| 5. |
S2212366
|
[8] |
BOLT
|
|
| 6. |
S2212266
|
[8] |
BOLT
|
|
