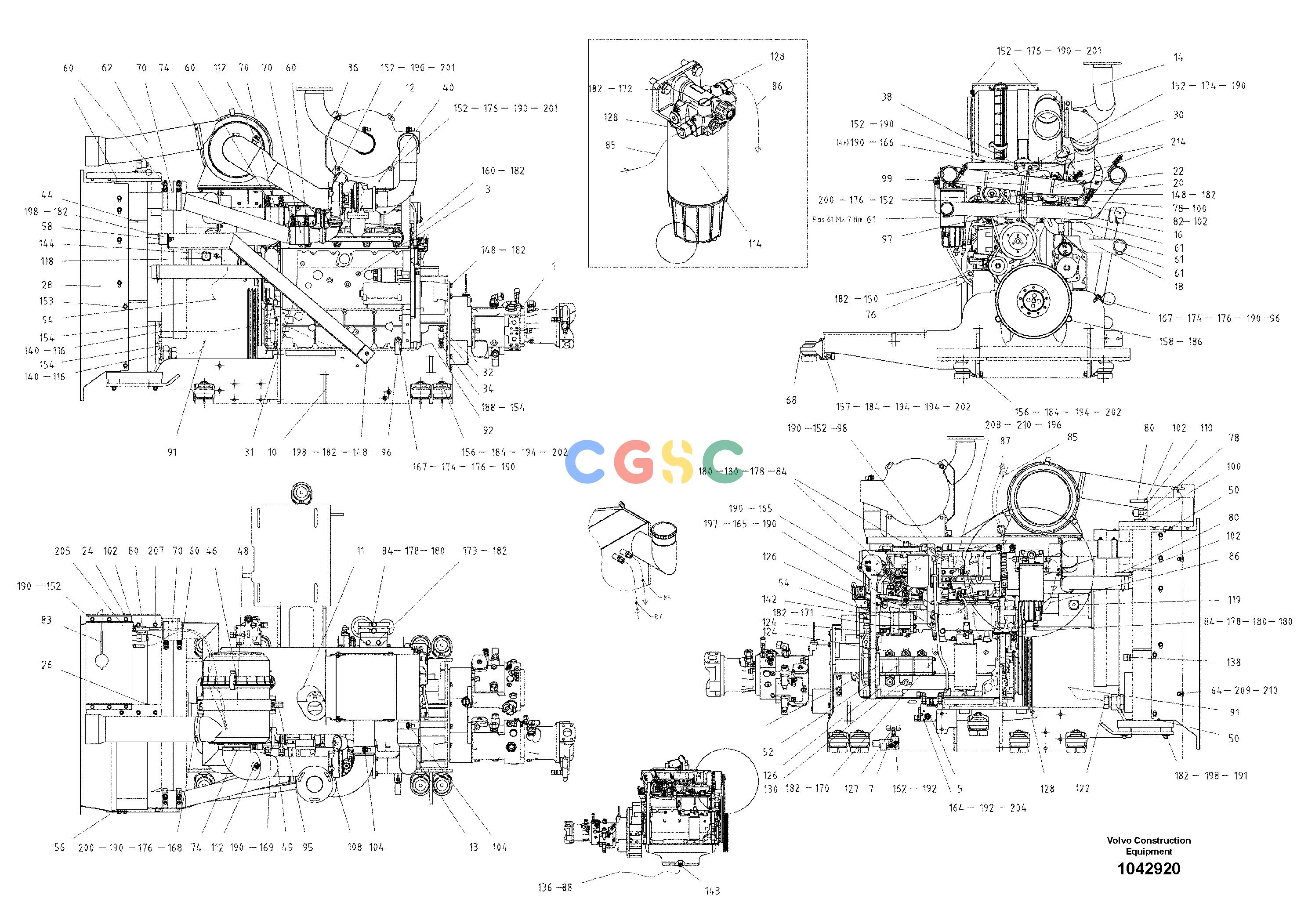

沃尔沃零件查询ABG6820 Basic EngineS/N 20836 - 70257580789225_5105-NoneNoneNone80789225Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM80621139
|
[1] |
Pump gearbox
|
|
| 164. |
RM96714290
|
[2] |
Hexagon screw
|
|
| 165. |
RM96713094
|
[2] |
Hexagon screw
|
|
| 166. |
RM96713185
|
[4] |
Hexagon screw
|
|
| 167. |
RM96702261
|
[2] |
Hexagon screw
|
|
| 168. |
RM96713052
|
[1] |
Hexagon screw
|
|
| 169. |
RM96713227
|
[1] |
Hexagon screw
|
|
| 170. |
RM54584677
|
[2] |
Hexagon screw
|
|
| 171. |
RM80631971
|
[2] |
Hex. socket screw
|
|
| 172. |
RM96704309
|
[2] |
Hexagon screw
|
|
| 173. |
RM96713342
|
[2] |
Hexagon screw
|
|
| 3. |
RM80789506
|
[1] |
Engine
|
|
| 174. |
RM96712799
|
[4] |
Hexagon nut
|
|
| 176. |
RM96712831
|
[6] |
Plain washer
|
|
| 178. |
RM58813999
|
[4] |
Hollow screw
|
|
| 180. |
RM58823881
|
[8] |
Ring
|
|
| 182. |
RM13907761
|
[24] |
Lock washer
|
|
| 184. |
RM14261002
|
[15] |
Lock washer
|
|
| 186. |
RM14261028
|
[4] |
Lock washer
|
|
| 188. |
RM14272462
|
[6] |
Lock washer
|
|
| 190. |
RM58854316
|
[20] |
Lock washer
|
S/N 19699-
|
| 191. |
RM14084016
|
[4] |
Plain washer
|
S/N 19699-
|
| 5. |
RM80731409
|
[1] |
Valve block
|
|
| 192. |
RM96712880
|
[4] |
Plain washer
|
|
| 194. |
RM96720131
|
[16] |
Plain washer
|
|
| 196. |
RM14084123
|
[2] |
Plain washer
|
S/N 19699-
|
| 197. |
RM14084057
|
[1] |
Plain washer
|
S/N 19699-
|
| 198. |
RM58838384
|
[6] |
Jam nut
|
|
| 200. |
RM14083455
|
[3] |
Jam nut
|
S/N 19699-
|
| 201. |
RM58833898
|
[6] |
Jam nut
|
|
| 202. |
RM96719174
|
[16] |
Hexagon nut
|
|
| 204. |
RM14083448
|
[2] |
Jam nut
|
|
| 205. |
RM96712914
|
[1] |
Hex. socket sunk screw
|
|
| 7. |
RM80612880
|
[1] |
Valve block
|
|
| 207. |
RM96720255
|
[5] |
Flange screw
|
|
| 208. |
RM96714241
|
[2] |
Hexagon screw
|
|
| 209. |
RM96714233
|
[2] |
Hexagon screw
|
|
| 210. |
RM58832916
|
[4] |
Lock washer
|
|
| 212. |
RM14280457
|
[4] |
Cable tie
|
|
| 214. |
RM13910864
|
[2] |
Cable tie
|
|
| |
VOE12777361
|
[1] |
Dipstick
|
S/N 700835 -
|
| 10. |
RM80789969
|
[1] |
Engine Frame
|
|
| 11. |
RM80790611
|
[1] |
Console
|
|
| 12. |
RM80732779
|
[1] |
Silencer
|
|
| 13. |
RM80843246
|
[1] |
Exhaust pipe
|
S/N 20373-
|
| 14. |
RM80846835
|
[1] |
End pipe
|
S/N - 21191
|
| 14. |
RM80846835
|
[1] |
End pipe
|
S/N 21192 -
|
| 16. |
RM80796139
|
[1] |
Cooler Pipe
|
|
| 18. |
RM80796147
|
[1] |
Cooler Pipe
|
|
| 20. |
RM80796154
|
[1] |
Air tube
|
|
| 22. |
RM80796162
|
[1] |
Air tube
|
|
| 24. |
RM80795933
|
[1] |
Holder
|
RH
|
| 26. |
RM80795925
|
[1] |
Holder
|
LH
|
| 28. |
RM80795107
|
[1] |
Radiator casing
|
|
| 30. |
RM80796832
|
[1] |
Bracket
|
|
| 31. |
RM80797145
|
[1] |
Cooler Holder
|
|
| 32. |
RM80718265
|
[2] |
Spacer plate
|
|
| 34. |
RM80718281
|
[2] |
Strip
|
|
| 36. |
RM80717895
|
[1] |
Insulating plate
|
|
| 38. |
RM80797053
|
[1] |
Bracket
|
|
| 40. |
RM80797137
|
[1] |
Muffler Holder
|
|
| 44. |
RM80792658
|
[1] |
Combi-cooler
|
|
| 46. |
RM80784770
|
[1] |
Air cleaner
|
|
| 48. |
RM80793789
|
[1] |
Bracket
|
|
| 49. |
RM80796626
|
[1] |
Reducer
|
|
| 50. |
RM80797657
|
[2] |
Seal Profile
|
|
| 52. |
RM54465042
|
[1] |
Gear pump
|
|
| 54. |
RM80613839
|
[1] |
Gear pump
|
|
| 56. |
RM80811144
|
[1] |
Sealing strip
|
|
| 58. |
RM14103931
|
[1] |
Rubber damper
|
|
| 60. |
RM80749419
|
[8] |
Clamp
|
|
| 61. |
RM80798622
|
[4] |
Hose clamp
|
|
| 62. |
RM80799471
|
[1] |
Hose
|
|
| 64. |
RM14144158
|
[2] |
Hose clamp
|
|
| 68. |
RM14261432
|
[8] |
Engine anchorage
|
|
| 70. |
RM80705585
|
[4] |
Hose coupling
|
|
| 74. |
RM80804065
|
[2] |
Worm Drive Hose Clamp
|
|
| 76. |
RM56285406
|
[1] |
Strap
|
|
| 78. |
RM80811284
|
[1] |
Hose
|
|
| 80. |
RM80811300
|
[1] |
Hose
|
|
| 82. |
RM80811292
|
[1] |
Hose
|
|
| 83. |
RM80811276
|
[1] |
Hose
|
|
| 84. |
RM80811110
|
[2] |
Fuel hose
|
|
| 85. |
RM80810278
|
[1] |
Fuel hose
|
|
| 86. |
RM80810286
|
[1] |
Hose
|
|
| 87. |
RM80810294
|
[1] |
Fuel hose
|
|
| 88. |
RM80629777
|
[1] |
Hose
|
|
| 91. |
RM80629686
|
[1] |
Hose
|
|
| 92. |
RM80813991
|
[1] |
Hose
|
|
| 94. |
RM80732290
|
[1] |
Hose
|
|
| 95. |
RM14262059
|
[1] |
Clamp
|
S/N 19699-
|
| 96. |
RM14154686
|
[2] |
Clamp
|
|
| 97. |
RM80798184
|
[1] |
Hose clamp
|
|
| 98. |
RM14154678
|
[1] |
Clamp
|
|
| 99. |
RM80779481
|
[1] |
Hose clamp
|
|
| 100. |
RM13909577
|
[2] |
Clip
|
|
| 102. |
RM13936992
|
[4] |
Hose clamp
|
|
| 104. |
RM80826167
|
[2] |
Hose clamp
|
S/N 19699-
|
| 108. |
RM56289150
|
[1] |
Hose clamp
|
|
| 110. |
VOE21091529
|
[1] |
Switch
|
|
| 112. |
RM14025308
|
[1] |
Contact unit
|
|
| 114. |
VOE21088129
|
[1] |
Fuel filter
|
|
| 116. |
VOE935309
|
[4] |
Flange half
|
|
| 118. |
RM13908959
|
[1] |
Coupling piece
|
|
| 119. |
RM14090906
|
[1] |
Coupling piece
|
|
| 122. |
RM80627755
|
[1] |
Valve
|
|
| 124. |
RM13905765
|
[5] |
Elbow
|
|
| 126. |
RM13929435
|
[3] |
Elbow
|
|
| 127. |
RM14090351
|
[1] |
Fitting
|
|
| 128. |
RM58854183
|
[3] |
Stud
|
|
| 130. |
RM14200893
|
[1] |
Union
|
|
| 136. |
RM56240153
|
[1] |
Plug
|
|
| 138. |
RM58900960
|
[1] |
Stud
|
|
| 140. |
RM58864679
|
[2] |
O-ring
|
|
| 142. |
VOE20460516
|
[1] |
Gasket
|
|
| 143. |
RM14198550
|
[1] |
Stud
|
|
| 144. |
RM58813932
|
[1] |
Stud
|
|
| 146. |
RM14105944
|
[1] |
Fitting
|
S/N -21890
|
| 148. |
RM96713326
|
[10] |
Hexagon screw
|
|
| 150. |
RM96713300
|
[1] |
Hexagon screw
|
|
| 152. |
RM96718820
|
[17] |
Hexagon screw
|
|
| 154. |
RM96725015
|
[14] |
Hex. socket screw
|
|
| 156. |
RM96718895
|
[14] |
Hexagon screw
|
|
| 157. |
RM96702667
|
[2] |
Hexagon screw
|
|
| 158. |
RM96720651
|
[4] |
Hexagon screw
|
|
| 160. |
RM96713318
|
[2] |
Hexagon screw
|
|
| 162. |
RM96714134
|
[2] |
Hexagon screw
|
|
