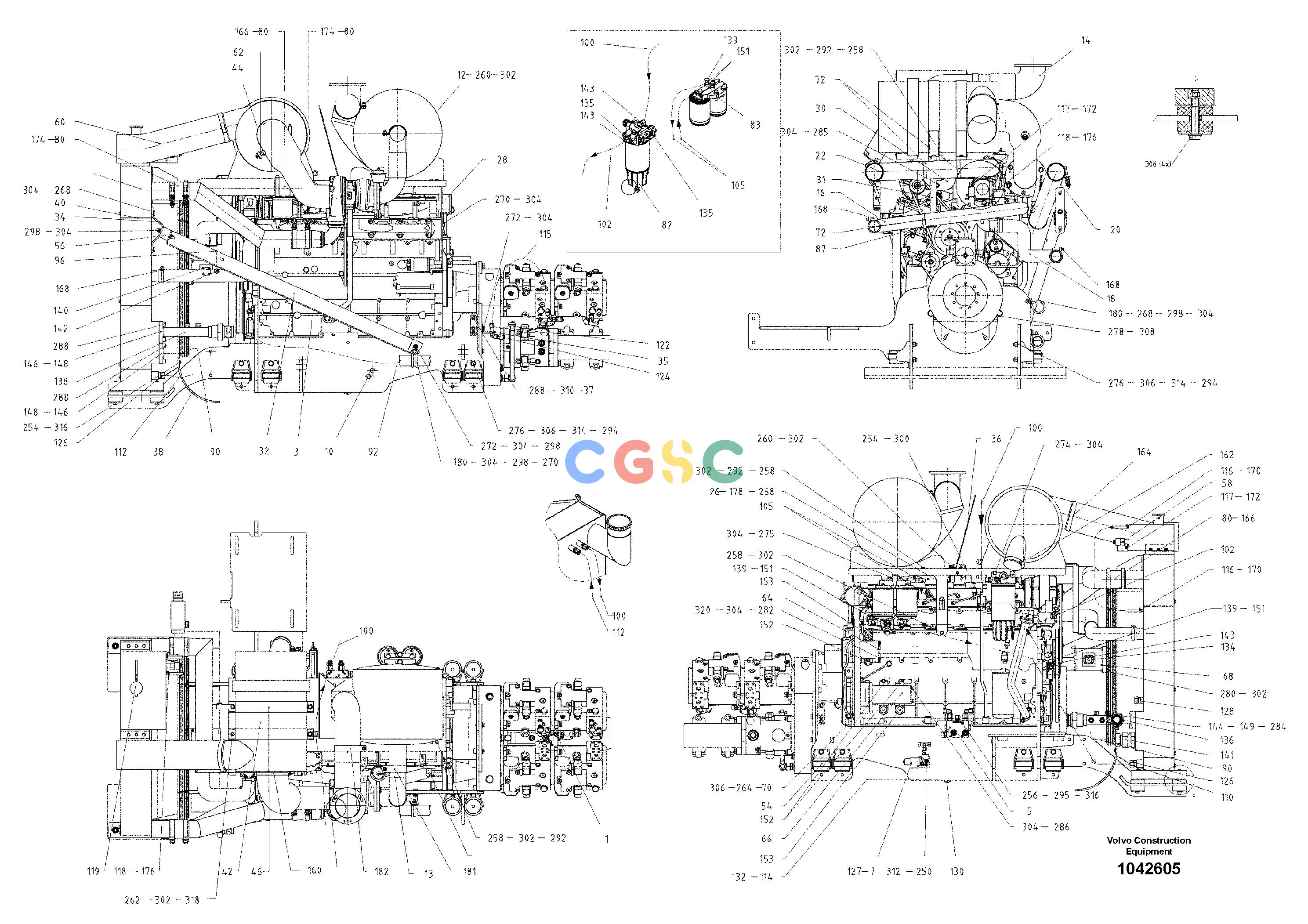

沃尔沃零件查询ABG8820/ABG8820B Basic EngineABG8820 S/N 21098-23354 ABG8820B S/N 23355-80741846_5108-NoneNoneNone80741846Autodata Volvo online_沃尔沃Volvo Construction_工程机械

Pos.	Part No	Qty	Parts name	Comments
1.	RM80764319	[1]	Distributor Gear Compl.
168.	RM80798622	[4]	Hose clamp	S/N 18658-
170.	RM13936992	[2]	Hose clamp
172.	RM13909577	[2]	Clip
173.	RM14110944	[1]	Clip	S/N 21390-
174.	RM80764079	[4]	Clamp
176.	RM13907506	[2]	Hose clamp
178.	RM14262059	[1]	Clamp	S/N 19127-
179.	RM13911565	[1]	Clamp	S/N 21283-
180.	RM14154686	[2]	Clamp
181.	RM80625981	[1]	Clamp
3.	RM80728785	[1]	Engine	S/N 21098 - 23354
182.	RM80625999	[1]	Clamp
250.	RM96714134	[2]	Hexagon screw
254.	RM96714241	[6]	Hexagon screw	S/N 19127-
256.	RM96714290	[2]	Hexagon screw
258.	RM96718820	[8]	Hexagon screw
260.	RM96713185	[6]	Hexagon screw
262.	RM96713052	[4]	Hexagon screw
264.	RM96720644	[1]	Hexagon screw
268.	RM96718838	[4]	Hexagon screw	S/N 18000-
270.	RM96713318	[8]	Hexagon screw	S/N 18000-
3.	VOE15064600	[1]	Engine	S/N 23355 -
272.	RM96713326	[7]	Hexagon screw	S/N 18000-
274.	RM96704309	[2]	Hexagon screw
275.	RM96713342	[2]	Hexagon screw	S/N 18000-
276.	RM96718895	[12]	Hexagon screw
278.	RM96720651	[4]	Hexagon screw
280.	RM96709126	[4]	Hex. socket screw
282.	RM96713516	[2]	Hexagon screw	S/N 18000-
284.	RM96713854	[4]	Hex. socket screw
285.	RM96704739	[1]	Hexagon screw
286.	RM80784606	[2]	Screw	S/N 18000-
5.	RM80693823	[1]	Valve block	S/N 18000-
288.	RM96725015	[14]	Hex. socket screw
292.	RM96712799	[7]	Hexagon nut
294.	RM96719174	[12]	Hexagon nut
295.	RM14083448	[3]	Jam nut
298.	RM58838384	[5]	Jam nut	S/N 18000-
300.	RM58832916	[2]	Lock washer	S/N 19127-
302.	RM58854316	[23]	Lock washer
304.	RM13907761	[30]	Lock washer	S/N 18000-
306.	RM14261002	[13]	Lock washer
308.	RM14261028	[4]	Lock washer
7.	RM80612880	[1]	Valve block
310.	RM14272462	[6]	Lock washer
312.	RM96712880	[2]	Plain washer	S/N 18334-
314.	RM96720131	[12]	Plain washer
316.	RM14084123	[6]	Plain washer	S/N 18334-
318.	RM58867052	[4]	Plain washer
320.	RM14084057	[2]	Plain washer	S/N 18000-
10.	RM80750185	[1]	Engine Frame
11.	RM80802846	[1]	Panel Complete	S/N 19127-
12.	RM80806847	[1]	Silencer	S/N 19126-
13.	RM80743297	[1]	Exhaust pipe
14.	RM80804859	[1]	End pipe	S/N 19127 - 701446 WITH FLANGE
14.	VOE12779780	[1]	End pipe	S/N 701447 -
16.	RM80789522	[1]	Cooling Liquid Pipe	S/N 18658-
18.	RM80789530	[1]	Cooling Liquid Pipe	S/N 18437-
20.	RM80636210	[1]	Air tube
22.	RM80622897	[1]	Air tube
26.	RM80791049	[1]	Retainer	S/N 18334-
28.	RM80741929	[1]	Bracket
30.	RM80627342	[1]	Bracket
31.	RM80792013	[1]	Angle plate	S/N 18658-
32.	RM80610652	[1]	Cooler Brace
34.	RM80616279	[1]	Bracket
35.	RM80765894	[1]	Retainer
36.	RM80616568	[1]	Thermal Protective Plate
37.	RM80718281	[2]	Strip
38.	RM80631740	[1]	Rubber plate	APRON
40.	RM80728710	[1]	Oil cooler
42.	RM56283484	[1]	Air cleaner
44.	RM80621592	[1]	Connecting pipe	S/N -21389
44.	RM80845647	[1]	Reducer	S/N 21390-
46.	RM56283369	[2]	Bracket
48.	RM80621584	[1]	Elbow	S/N -21389
50.	RM80625973	[1]	Pipe Socket	S/N -21389
52.	RM80625908	[1]	Elbow	S/N -21389
54.	RM13952528	[8]	Engine anchorage
56.	RM14103931	[1]	Rubber damper
58.	VOE21091529	[1]	Switch	LEVEL CONTROL
60.	RM80759186	[1]	Hose
62.	RM14025308	[1]	Contact unit	MAINTENANCE
64.	RM80766058	[1]	Gear pump
66.	VOE12819149	[1]	Gear Pump
68.	RM80762289	[1]	Hydraulic motor
	VOE17243481	[1]	Seal
70.	RM56285406	[1]	Strap	WITHOUT TERMINAL
72.	RM13910864	[5]	Cable tie	S/N 18658-
80.	RM80703093	[4]	Hose clamp
82.	VOE21088129	[1]	Fuel filter
83.		[1]	Fuel Filter
87.	RM80800253	[1]	Sealing strip	S/N 18658-
90.	RM80629686	[1]	Hose
92.	RM80687585	[1]	Hose
96.	RM80697410	[1]	Hose
100.	RM80818826	[1]	Hose	S/N 19127-
102.	RM80761554	[1]	Hose
105.	RM80811110	[2]	Fuel hose	S/N 19127-
110.	RM80761570	[1]	Hose
112.	RM80761562	[1]	Hose
114.	RM80687601	[1]	Hose
115.	RM80766439	[1]	Hose
116.	RM80626831	[1]	Hose
117.	RM80765704	[1]	Hose
118.	RM80727233	[1]	Hose
119.	RM80626823	[1]	Hose
122.	RM58833138	[1]	Fitting
124.	RM14280259	[1]	Coupling piece	WITH SCREW COUPLING
126.	RM14280432	[2]	Stud
127.	RM14090351	[1]	Fitting	S/N 19127-
128.	RM58900960	[1]	Stud
130.	RM58832908	[1]	Fitting
132.	RM56240153	[1]	Plug
134.	RM14090906	[1]	Coupling piece
135.	RM13967245	[2]	Screw	S/N 19127-
136.	RM80686629	[1]	Return line
138.	RM80684947	[1]	Return line
139.	RM58813999	[4]	Hollow screw	S/N 19127-
140.	RM13908959	[1]	Coupling piece
141.	RM80627755	[1]	Valve	5BAR
142.	RM58813932	[1]	Stud
143.	RM58854183	[3]	Stud	S/N 18000-
144.	RM14108302	[2]	Flange half
146.	VOE935309	[4]	Flange half
148.	RM58864679	[2]	O-ring
149.	RM13954557	[1]	O-ring
151.	RM58823881	[8]	Ring	S/N 19127-
152.	RM13905765	[3]	Elbow
153.	RM13929435	[3]	Elbow
160.	RM14200117	[1]	Hose clamp	S/N 21390-
160.	RM14200117	[4]	Hose clamp	S/N -21389
162.	RM13942024	[1]	Hose clamp
164.	RM80759103	[1]	Hose clamp
166.	RM56289150	[4]	Hose clamp
