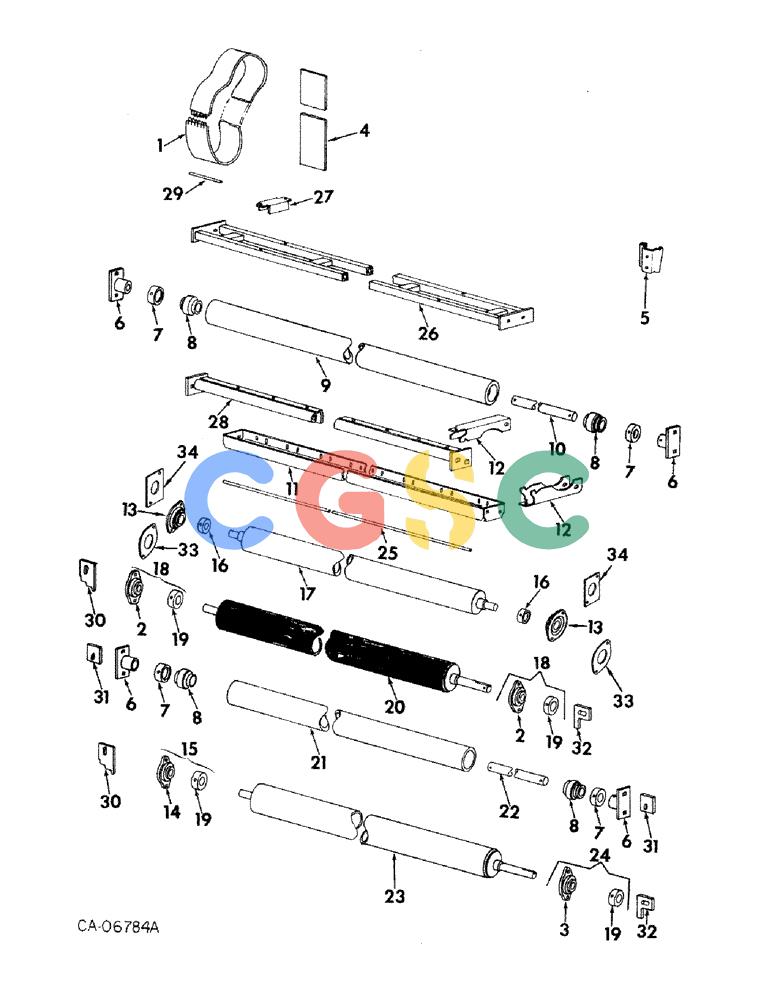

| 1. |
208510C92
|
[9] |
CONVEYOR BELT,101.50 mm W x 10960.10 mm L
|
IH
BELT, CONVEYOR , Assy, Upper 101.50 mm W x 10960.10 mm L
|
| . . |
218322
|
[18] |
WASHER,0.12" ID x 0.31" OD x 0.03" Thk
|
IH
.125 x .312 x .025 Superseded by part number: 495-31012
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT, No. 4-1/2 lacing belt
|
| 2. |
256557R92
|
[2] |
BALL BEARING,36.51mm ID x 72mm OD x 19mm W
|
IH
ASSY
|
| 3. |
570043R91
|
[1] |
BALL BEARING,1.4375" ID x 72 mm OD x 2.1"
|
IH
ASSY, front roll drive Superseded by part number: T25346
|
| 4. |
218992C1
|
[1] |
BELT,101.50 mm W x 2438.50 mm L
|
IH
Upper splice 101.50 mm W x 2438.50 mm L
|
| 5. |
363919R1
|
[1] |
SOCKET
|
IH
light bracket Superseded by part number: 398976R1
|
| 6. |
208515C1
|
[4] |
BRACKET
|
IH
ASSY, roller support
|
| . . |
17351R1
|
[8] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
482256R1
|
[8] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8-16 znd hex lock Superseded by part number: 247780
|
| 7. |
557115R11
|
[6] |
COLLAR
|
IH
COLLAR W/SET SCREW, brg locking Superseded by part number: 45876
|
| 8. |
208482C91
|
[6] |
BEARING ASSY
|
IH
Superseded by part number: 87446552
|
| 9. |
208481C1
|
[1] |
PIPE
|
IH
roll POS. No. 6
|
| 10. |
208757C1
|
[1] |
SHAFT
|
IH
top idler
|
| . . |
576517R1
|
[1] |
LOCK PIN,1/4" x 1 1/2", Slotted
|
IH
Pin, 1/4" x 1 1/2", Slotted Superseded by part number: 87406
|
| 11. |
208783C2
|
[3] |
STAY
|
IH
CHANNEL, belt guide finger
|
| . . |
18778R1
|
[8] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 znd hex-hd mach Superseded by part number: 180120
|
| . . |
18495R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 hex-hd mach Superseded by part number: 180124
|
| 12. |
208782C2
|
[30] |
FINGER
|
IH
belt guide
|
| . . |
669637R1
|
[30] |
SELF-TAP SCREW
|
IH
5/16-18 x 1/2 znd hex-hd self tap
|
| 13. |
214490C91
|
[4] |
BALL BEARING,25.4mm ID
|
IH
BEARING ASSY, idler roller, roll POS. 8 and 9, roll POS. 4, serial No. 4033 and below
|
| . . |
18764R1
|
[8] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 type 1 Superseded by part number: 424-512
|
| . . |
19575R1
|
[4] |
|
P
BOLT, 5/16 x 1-1/8 type 1
|
| . . |
938017R1
|
[12] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16 flange lock Superseded by part number: 145458
|
| 13. |
1302001C91
|
[2] |
ROLLER BEARING,28.57mm ID
|
IH
idler roller, roll POS. 4, serial No. 4034 and above
|
| 14. |
218584C91
|
[1] |
BEARING ASSY,36.52mm ID x 72mm OD x 19mm W
|
IH
|
| 15. |
218575C91
|
[1] |
BEARING ASSY,36.51mm ID
|
IH
BEARING W/HOUSING, front roller drive
|
| . . |
18684R1
|
[2] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 crg type 1 Superseded by part number: 550796R1
|
| 16. |
218423C1
|
[6] |
COLLAR
|
IH
W/SET SCREW, brg locking, roll POS. 8 and 9, roll POS. 4, serial No. 4033 and below Superseded by part number: 47577183
|
| 17. |
211285C1
|
[2] |
TUBE,1.8" OD, 1628 mm Length
|
IH
ASSY, idler roller, roll POS. 8 and 9, roll POS. 4, serial No. 4033 and below
|
| 17. |
211288C1
|
[1] |
TUBE
|
IH
ASSY, idler roller, roll POS. 4, serial No. 4034 and above
|
| 18. |
208509C91
|
[2] |
BEARING ASSY
|
IH
W/HOUSING, front roller drive Superseded by part number: 218575C91
|
| . . |
16684R1
|
[4] |
PLUG,Expansion, 3 1/4"
|
IH
BOLT, 3/8 x 1-1/4 crg type 1 Superseded by part number: 41-3052
|
| 19. |
557113R11
|
[4] |
COLLAR
|
IH
brg locking
|
| 20. |
218677C1
|
[1] |
ROLL
|
IH
ASSY, upper drive, roll POS. No. 3
|
| 21. |
208499C1
|
[2] |
PIPE
|
IH
roll POS. No. 2 and No. 10
|
| 22. |
208518C1
|
[2] |
SHAFT
|
IH
lower arm roller, gate
|
| . . |
18658R1
|
[2] |
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2
|
IH
1/4 x 1-3/4 znd hex-hd mach Superseded by part number: 87404
|
| . . |
938016R1
|
[2] |
FLANGE NUT,Flg, USR, 1/4"-20
|
IH
1/4 flange lock Superseded by part number: 523282
|
| . . |
Q162
|
[8] |
WASHER
|
IH
1.156 x 1.750 x .054 pln Superseded by part number: 495-81188
|
| 23. |
208502C1
|
[1] |
TUBE
|
IH
ASSY, front roller drive, roll POS. No. 1
|
| 24. |
213557C91
|
[1] |
ROLLER BEARING
|
IH
BEARING ASSY W/HOUSING FRT ROLLER DRIVE Superseded by part number: 213558C91
|
| 25. |
208781C1
|
[3] |
ROD
|
IH
belt retainer
|
| 26. |
214346C1
|
[1] |
GUIDE
|
IH
ASSY, belt
|
| 27. |
218420C1
|
[4] |
CHANNEL
|
IH
belt guide
|
| . . |
172451
|
[8] |
SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"
|
IH
SCREW, 5/16 x 5/8 h/hd tap Superseded by part number: 276-14810
|
| 28. |
218999C91
|
[1] |
GUIDE
|
IH
W/PRODUCT GRAPHIC, belt
|
| 29. |
218075C1
|
[9] |
ELECTRICAL WIRE
|
IH
PIN, upper belt
|
| 30. |
214418C1
|
[2] |
BRACKET
|
IH
BLADE, upper drive roll RH
|
| 31. |
214419C1
|
[2] |
BLADE
|
IH
BAR, idler roll blade
|
| 32. |
218578C1
|
[2] |
BLADE
|
IH
BAR, drive roll blade LH
|
| 33. |
210695C1
|
[12] |
DISC
|
IH
FLANGE, bearing spacer, roll POS. 8 and 9, roll POS. 4, serial No. 4033 and below
|
| . . |
18474R1
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 type 1 Superseded by part number: 424-516
|
| . . |
18765R1
|
[4] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
|
IH
5/16 x 1-1/2 type 1 Superseded by part number: 180083
|
| 34. |
211057C1
|
[2] |
CONNECTOR, ELEC
|
IH
FLANGE, bearing spacer, roll POS. 4, serial No. 4034 and above
|
| . . |
18494R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 type 1 Superseded by part number: 424-616
|
| . . |
211306C91
|
[2] |
PACKAGE
|
IH
upper conveyor, consists of, belt (NSS), lacing (NSS)
|
| . . |
211304C1
|
[1] |
PACKAGE
|
IH
BELT
|
| . . |
211305C1
|
[1] |
PIN
|
IH
instructions (NSS)
|
