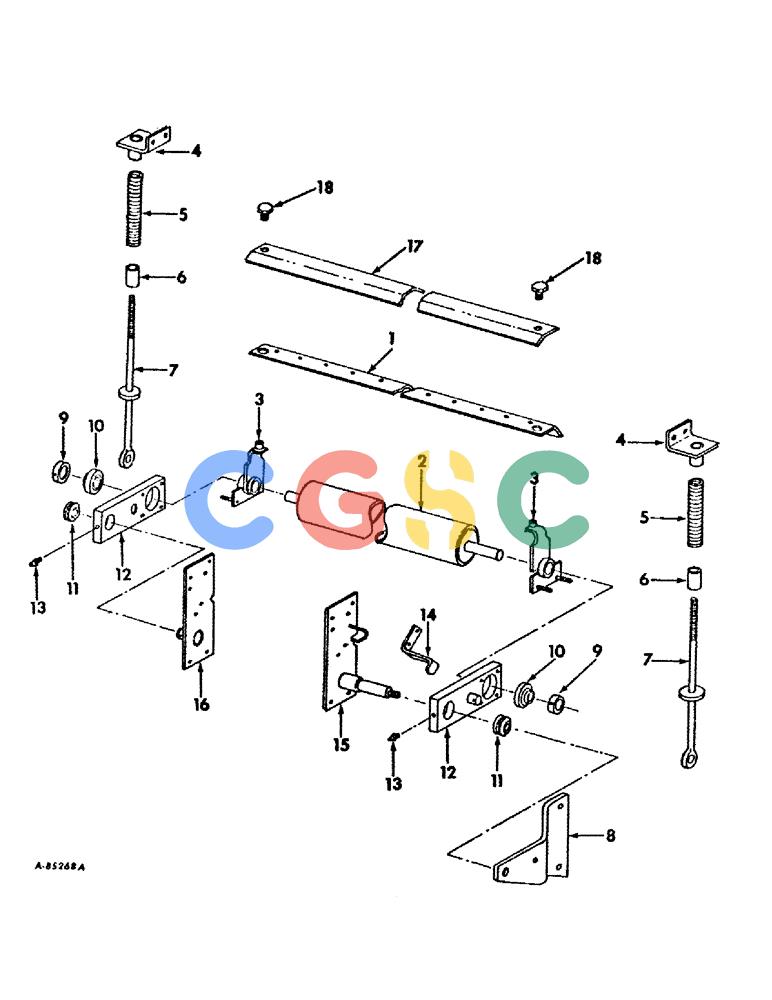

| 2. |
204681C2
|
[1] |
ROLL
|
IH
ASSY, press, T1COR, roll POS, No. 18
|
| 3. |
218579C1
|
[2] |
BASE
|
IH
ASSY, pressure roll scraper
|
| . . |
482256R1
|
[4] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8-16 znd hex. lock Superseded by part number: 247780
|
| 4. |
210315C1
|
[2] |
BRACKET
|
IH
ASSY, spring adj
|
| . . |
18494R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 znd hex-hd mach Superseded by part number: 424-616
|
| 5. |
659348R1
|
[2] |
SPRING
|
IH
press roll pivot
|
| . . |
22050R1
|
[2] |
WASHER
|
IH
1.281 x 1.750 x .054 znd Superseded by part number: 87613234
|
| 6. |
208493C2
|
[2] |
TUBE
|
IH
bearing housing screw
|
| 7. |
208763C1
|
[2] |
BOLT
|
IH
EYEBOLT ASSY, spring adj
|
| . . |
425-1410
|
[4] |
JAM NUT,Jam, 5/8"-11, G5
|
CAS
5/8-11 znd hex. jam Superseded by part number: 86632556
|
| . . |
103374
|
[2] |
COTTER PIN,3/32" x 1"
|
IH
Pin, Split (Cotter), 3/32" x 1" Superseded by part number: 280251
|
| . . |
21796R1
|
[2] |
WASHER
|
IH
.656 x 1.000 x .054 znd Superseded by part number: 495-81176
|
| 8. |
208540C2
|
[1] |
BRACKET
|
IH
press roll pivot strap
|
| 9. |
455104R11
|
[2] |
COLLAR
|
IH
W/SET SCREW, press roll brg Superseded by part number: 47508357
|
| 10. |
587015R92
|
[2] |
BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W
|
IH
ASSY, press roll
|
| 11. |
149401H1
|
[2] |
BUSHING
|
IH
BEARING, press roll pivot ball bushing Superseded by part number: 70668028
|
| 12. |
208527C93
|
[2] |
ARM
|
IH
ASSY, press roll
|
| 13. |
87569
|
[2] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 45 deg angle lub
|
| 14. |
208797C1
|
[1] |
GUIDE
|
IH
main drive chain
|
| 15. |
208532C4
|
[1] |
SHAFT
|
IH
ASSY, press roll pivot LH
|
| . . |
9413973
|
[1] |
LOCK NUT,7/8"-9, GB
|
CAS
NUT, 7/8 cad P/T lock type 5 Superseded by part number: 280658
|
| 16. |
208535C2
|
[1] |
SHAFT
|
IH
ASSY, press roll pivot RH
|
| . . |
17351R1
|
[6] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
18684R1
|
[2] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd sq-nk crg Superseded by part number: 550796R1
|
| . . |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Pin, Split (Cotter), 3/16" x 1 3/4" Superseded by part number: 87400
|
| 17. |
218766C1
|
[2] |
BLADE
|
IH
press roll
|
| . . |
614452R1
|
[2] |
WASHER
|
IH
.0406 x 1.250 x .090 Superseded by part number: 86625257
|
| . . |
178375R1
|
[4] |
WASHER
|
IH
.781 x 1.250 x .054 Superseded by part number: 249100
|
| . . |
21757R1
|
[2] |
WASHER
|
IH
.781 x 1.250 x .027 Superseded by part number: 87613196
|
| 18. |
218344C1
|
[2] |
BOLT,3/8" - 16 x 0.654"
|
IH
scraper mounting
|
