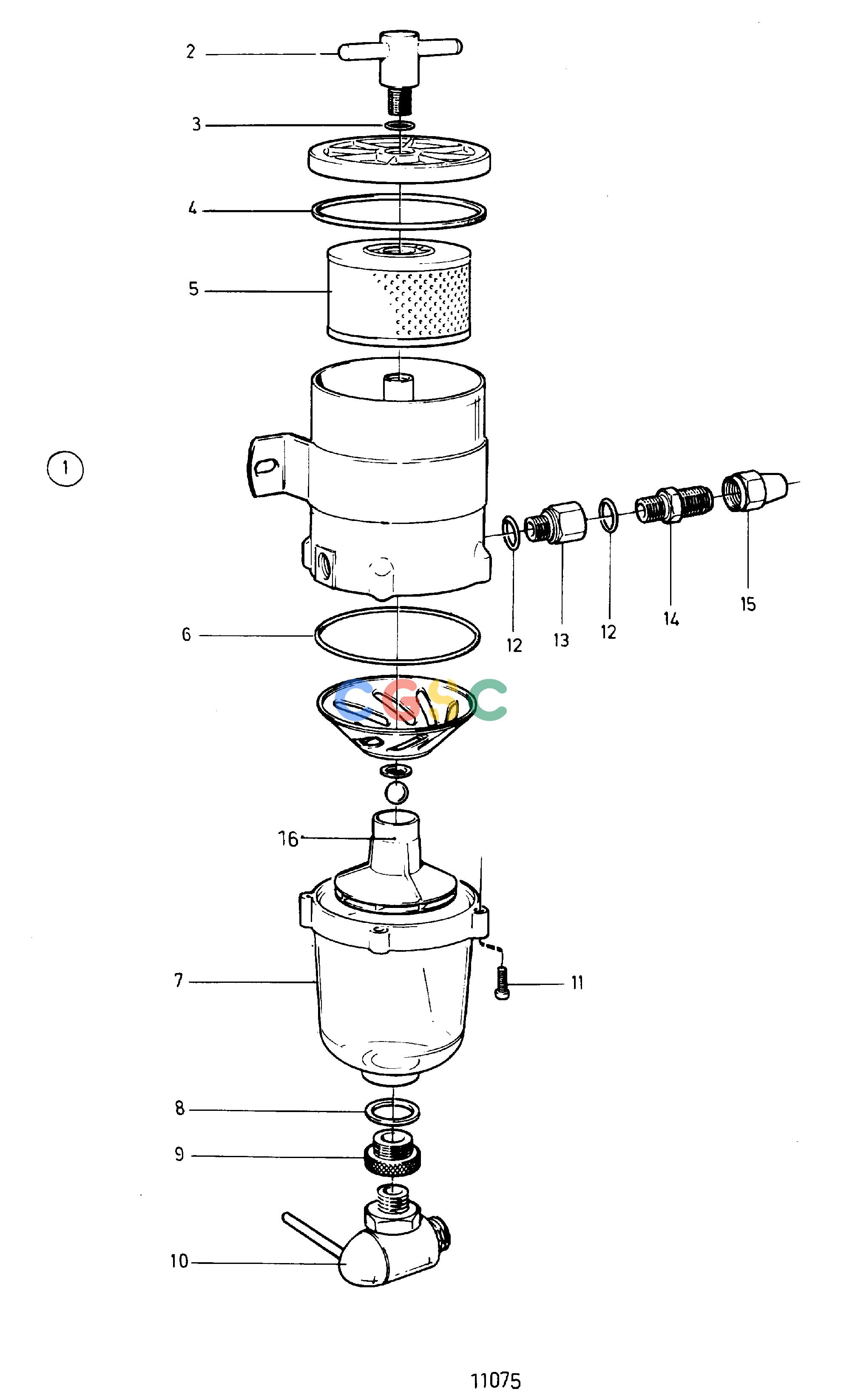

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AFuel SystemFuel Filter and Water SeparatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828958
|
[1] |
Fuel filter kit
|
Replaced by 861143.
|
| 2. |
|
|
|
|
| 3. |
1140250
|
[1] |
Gasket
|
|
| 4. |
1140252
|
[1] |
Gasket
|
|
| 5. |
861014
|
[1] |
Insert
|
(828897)
|
| 6. |
1140251
|
[1] |
Gasket
|
|
| 7. |
860930
|
[1] |
Bowl
|
|
| 8. |
860931
|
[1] |
Outlet valve
|
|
| 9. |
860932
|
[1] |
Reduction valve
|
|
| 10. |
860933
|
[1] |
Shut-off cock
|
|
| 11. |
|
|
|
|
| 12. |
858601
|
[4] |
O-ring
|
|
| 13. |
828937
|
[2] |
Nipple
|
|
| 14. |
828942
|
[2] |
Nipple
|
|
| 15. |
954323
|
[2] |
Fitting nut
|
|
| 16. |
860929
|
[1] |
Insert
|
|
