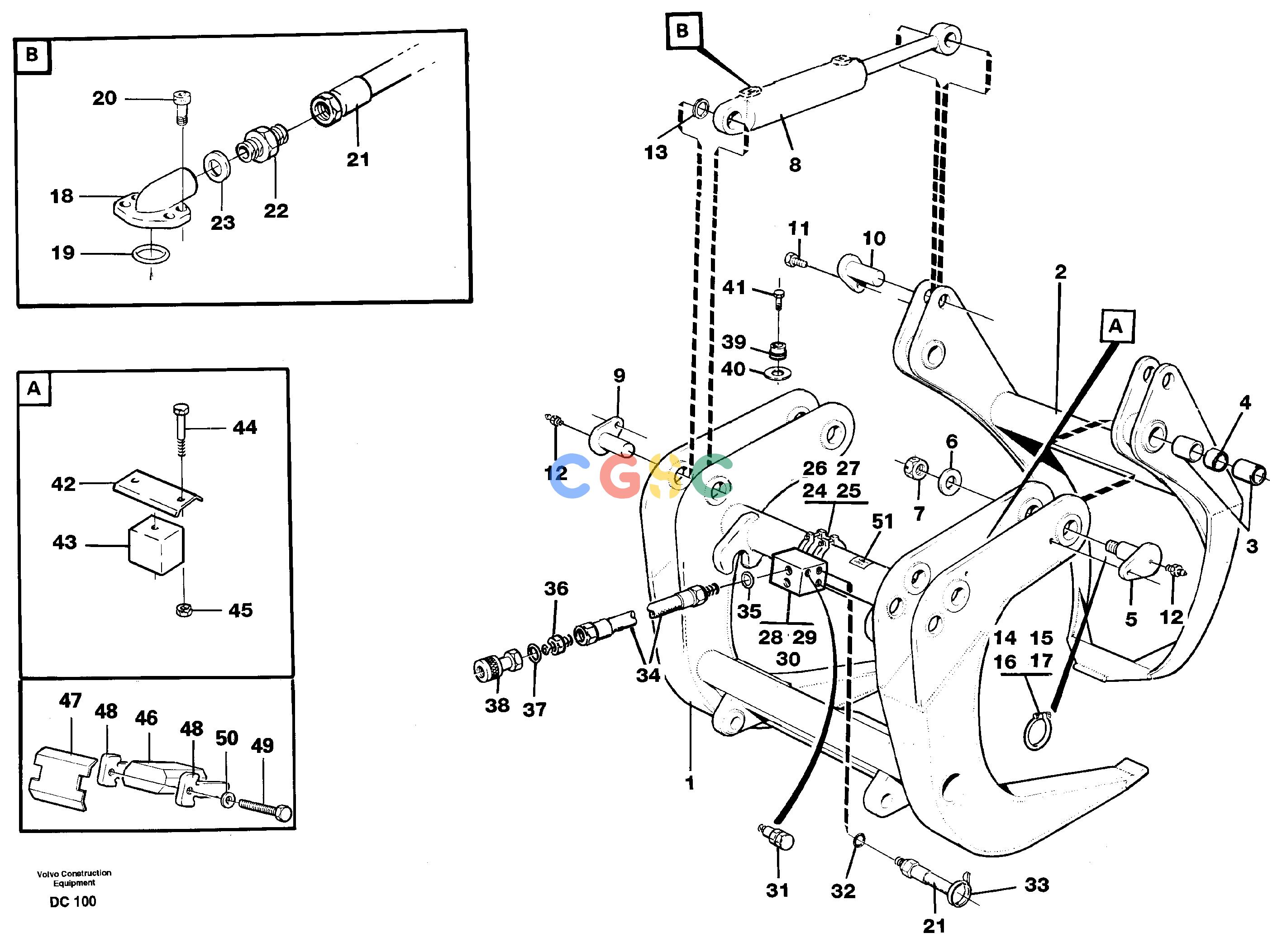

沃尔沃零件查询ATTACHMENTS Unloading grappleATTACHMENTS MISCELLANEOUS90350-90353VOE90350L90/B, L120/BAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Unloading grapple
|
|
| |
|
|
Unloading grapple
|
L90/B, L120
|
| 1. |
|
[1] |
Framework
|
|
| 2. |
|
[1] |
Top Clamp
|
|
| 3. |
VOE4890051
|
[4] |
Bushing
|
|
| 4. |
VOE4880464
|
[2] |
Bushing
|
|
| 5. |
VOE4887206
|
[2] |
Pin
|
|
| 6. |
VOE4809212
|
[2] |
Washer
|
|
| 7. |
VOE13963112
|
[2] |
Lock nut
|
|
| 8. |
VOE4784387
|
[2] |
Hydraulic cylinder
|
|
| |
VOE4833311
|
|
Hydraulic cylinder
|
|
| 9. |
VOE4763267
|
[2] |
Pin
|
|
| 10. |
VOE4761320
|
[2] |
Pin
|
|
| 11. |
VOE13973144
|
[6] |
Hexagon screw
|
|
| 12. |
VOE784323
|
[2] |
Nipple
|
|
| 13. |
VOE4782564
|
[8] |
Link bearing seal
|
|
| 14. |
VOE4824481
|
[4] |
O-ring
|
|
| 15. |
VOE955257
|
[4] |
Hexagon screw
|
|
| 16. |
VOE13940090
|
[8] |
Washer
|
|
| 17. |
VOE13963104
|
[4] |
Lock nut
|
|
| 18. |
VOE11156849
|
[4] |
Connector
|
|
| 19. |
VOE990742
|
[4] |
O-ring
|
|
| 20. |
VOE959238
|
[16] |
Hex. socket screw
|
|
| 21. |
VOE931719
|
[4] |
Hose assembly
|
|
| 22. |
VOE13943986
|
[4] |
Nipple
|
|
| 23. |
VOE14013069
|
[4] |
Sealing washer
|
|
| 24. |
|
[4] |
Clamp
|
|
| 25. |
VOE13970962
|
[4] |
Hexagon screw
|
|
| 26. |
VOE941908
|
[4] |
Spring washer
|
|
| 27. |
VOE971071
|
[4] |
Hexagon nut
|
|
| 28. |
VOE4888229
|
[1] |
Oil distributor
|
|
| 29. |
VOE997446
|
[2] |
Hexagon screw
|
|
| 30. |
VOE940280
|
[2] |
Spring washer
|
|
| 31. |
VOE17506433
|
[1] |
Overflow valve
|
|
| |
VOE964114
|
[1] |
O-ring
|
|
| |
VOE955987
|
[1] |
O-ring
|
|
| |
VOE6212561
|
[2] |
Back-up ring
|
|
| 32. |
VOE958227
|
[4] |
O-ring
|
|
| 33. |
VOE4881440
|
[8] |
Cable tie
|
|
| 34. |
VOE13932650
|
[2] |
Hose assembly
|
|
| 35. |
VOE958228
|
[2] |
O-ring
|
|
| 36. |
VOE13943988
|
[2] |
Nipple
|
|
| 37. |
VOE14013070
|
[2] |
Sealing washer
|
|
| 38. |
VOE4786201
|
[2] |
Snap-on coupling
|
E PROD
|
| |
VOE927286
|
[2] |
O-ring
|
ID=30,2
|
| |
VOE925064
|
[2] |
O-ring
|
ID=32,2
|
| |
VOE11043021
|
[2] |
Sleeve
|
L PROD
|
| |
VOE11993255
|
[2] |
O-ring
|
INNER
|
| |
VOE11993256
|
[2] |
O-ring
|
OUTER
|
| |
VOE11993257
|
[2] |
Back-up ring
|
|
| 39. |
VOE4885042
|
[2] |
Plug
|
|
| 40. |
VOE4885043
|
[2] |
Washer
|
|
| 41. |
VOE955297
|
[2] |
Hexagon screw
|
|
| 42. |
|
[2] |
Clamp
|
E PROD
|
| 43. |
|
[2] |
Damper
|
E PROD
|
| 44. |
VOE13970958
|
[4] |
Hexagon screw
|
E PROD
|
| 45. |
VOE13971083
|
[4] |
Lock nut
|
E PROD
|
| 46. |
VOE4859480
|
[2] |
Absorber
|
L PROD
|
| 47. |
VOE4859482
|
[2] |
Clamp
|
L PROD
|
| 48. |
VOE4859483
|
[4] |
Anchorage
|
L PROD
|
| 49. |
VOE13970947
|
[4] |
Hexagon screw
|
L PROD
|
| 50. |
VOE976945
|
[4] |
Washer
|
L PROD
|
| 51. |
VOE11011926
|
[1] |
Decal
|
|
