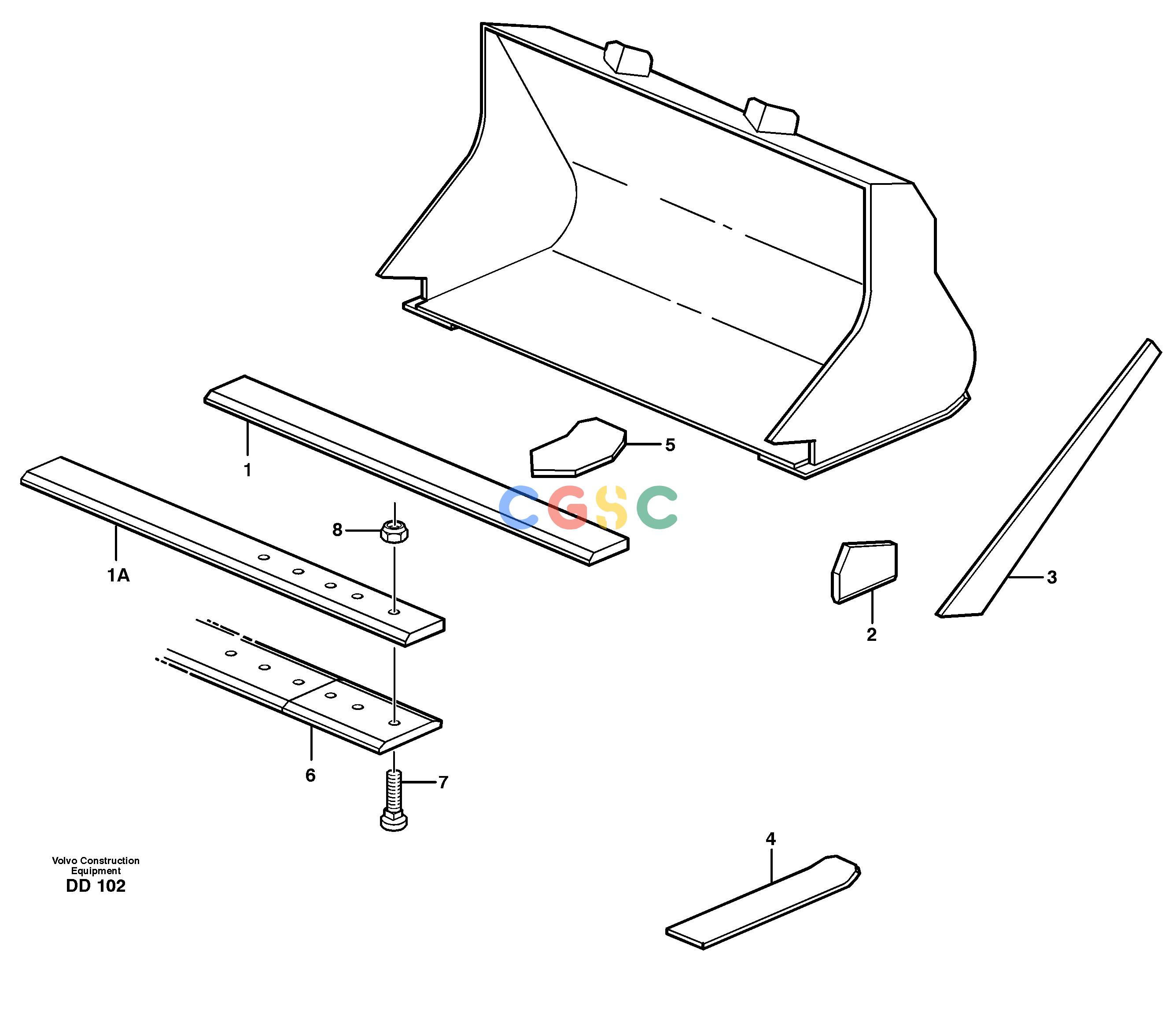

沃尔沃零件查询ATTACHMENTS Bucket, straight lip without teethATTACHMENTS WHEEL LOADERS GEN. - C97989-90039VOE97989L50Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Bucket, 1,0 Cu M
|
WID=2000 MM
|
| |
|
|
Bucket, 1,15 Cu M
|
WID=2250 MM
|
| 1. |
VOE11990983
|
[1] |
Cutting edge
|
E PROD
|
| 1A. |
VOE4857501
|
[1] |
Cutter
|
L PROD
|
| |
VOE4857502
|
|
Cutter
|
|
| 2. |
|
[REQ] |
Corner steel
|
|
| 3. |
|
[REQ] |
Edge steel
|
|
| 4. |
|
[REQ] |
Wearing plate
|
|
| 5. |
VOE4805333
|
[2] |
Wear plate
|
|
| |
VOE4805212
|
|
Wear plate
|
|
| 6. |
VOE4857492
|
[3] |
Bolt on edge
|
|
| |
VOE4857493
|
|
Bolt On Edge
|
|
| 7. |
VOE13930787
|
[9] |
Screw
|
|
| 8. |
VOE955785
|
[9] |
Hexagon nut
|
|
