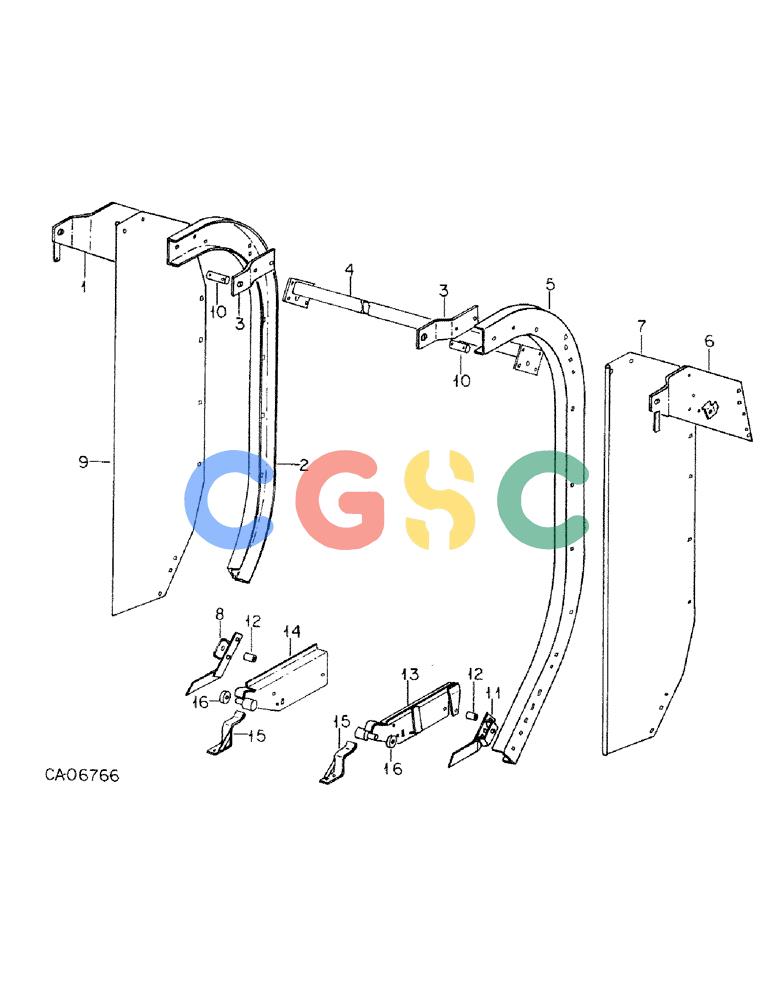

| 1. |
208312C2
|
[1] |
ANCHOR
|
IH
ASSY, hyd cyl RH
|
| . . |
18496R1
|
[6] |
BOLT,Hex, 1/2"-13 x 1 1/2", G2
|
IH
1/2 x 1-1/2 znd hex-hd mach Superseded by part number: 179885
|
| . . |
487374R1
|
[6] |
BEARING LOCK NUT,Flg, USR, 1/2"-13
|
IH
1/2-13 znd hex. lock Superseded by part number: 86512371
|
| 3. |
208420C1
|
[2] |
STRAP
|
IH
rear gate
|
| 2. |
208419C2
|
[1] |
CHANNEL
|
IH
rear gate RH
|
| . . |
180179
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
|
IH
SCREW, 1/2-13 x 1-3/4 znd hex-hd cap Superseded by part number: 113-412
|
| . . |
9413956
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2 PHC P/T lock type 5 Superseded by part number: 231-4138
|
| 4. |
208309C1
|
[1] |
ANCHOR
|
IH
ASSY, cross beam
|
| 5. |
208418C2
|
[1] |
CHANNEL
|
IH
rear gate LH
|
| 6. |
208311C2
|
[1] |
ANCHOR
|
IH
ASSY, hyd cyl LH
|
| 7. |
208315C2
|
[1] |
COVER
|
IH
rear gate LH
|
| 8. |
214327C1
|
[1] |
STOP
|
IH
ASSY, rear gate pivot RH
|
| . . |
495967R1
|
[2] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
|
IH
BOLT, 3/8 x 1 crg type 5 Superseded by part number: 80280503
|
| . . |
482256R1
|
[2] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8 flange lock Superseded by part number: 247780
|
| 9. |
208316C2
|
[1] |
COVER
|
IH
rear gate RH
|
| 10. |
208386C1
|
[2] |
PIN
|
IH
rear gate pivot
|
| . . |
608700R1
|
[4] |
WASHER
|
IH
1.281 x 2.000 x .054 Superseded by part number: 495-81205
|
| . . |
20341R1
|
[4] |
COTTER PIN,1/4" x 2"
|
IH
Pin, Split (Cotter), 1/4" x 2" Superseded by part number: 88182
|
| 11. |
214322C1
|
[1] |
STOP
|
IH
ASSY, rear gate pivot LH
|
| 12. |
208665C1
|
[2] |
SPACER
|
IH
arm pivot
|
| 13. |
208422C2
|
[1] |
PLATE
|
IH
ASSY, lower roller pivot LH
|
| . . |
180190
|
[1] |
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
|
IH
BOLT, 1/2 x 3 type 5 Superseded by part number: 179893
|
| . . |
664573R1
|
[1] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex. lock Superseded by part number: 231-4218
|
| 14. |
208427C2
|
[1] |
PLATE
|
IH
ASSY, lower roller pivot RH
|
| 15. |
214344C1
|
[1] |
ANGLE
|
IH
rear gate guide, left
|
| 15. |
214345C1
|
[1] |
ANGLE
|
IH
rear gate guide, right
|
| . . |
16897R1
|
[6] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 znd sq-nk crg Superseded by part number: 412-512
|
| . . |
938017R1
|
[6] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 znd hex. lock Superseded by part number: 145458
|
| 16. |
11457RA
|
[2] |
RING
|
IH
ROLLER, cam
|
| . . |
576485R1
|
[2] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Superseded by part number: 300868
|
| . . |
21220R1
|
[4] |
WASHER
|
IH
29/32 x 1-1/4 x 11 ga znd Superseded by part number: 495-81052
|
