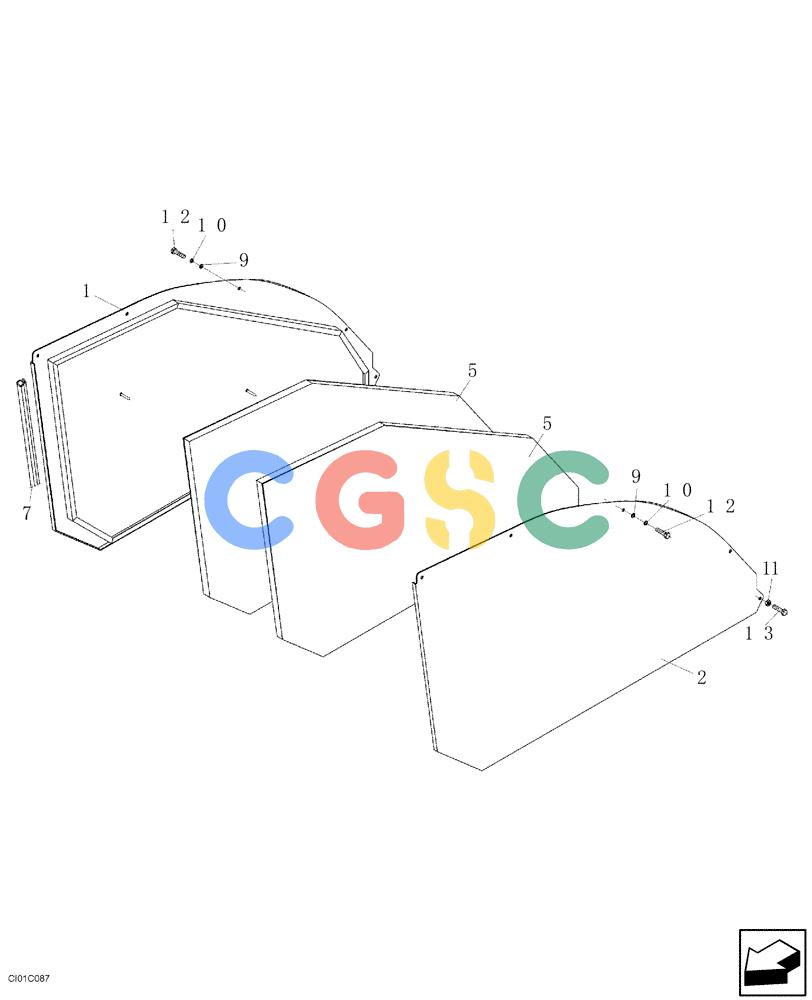

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ND018296 | [1] | FENDER | STA |
| 2. | ND018298 | [1] | FENDER | STA |
| 5. | ND030789 | [2] | INSULATOR | STA |
| 7. | ND075757 | [2] | SEAL | STA1800mm |
| 9. | ND029310 | [10] | WASHER | STAID8,2 |
| 10. | ND029291 | [10] | WASHER | STAID9 |
| 11. | ND026416 | [2] | NUT | STAM8 Superseded by part number: ND034087 |
| 12. | ND023812 | [8] | SCREW | STAM8 x 18 Superseded by part number: ND110079 |
| 13. | ND021295 | [2] | BOLT | STAM8 x 25 |
