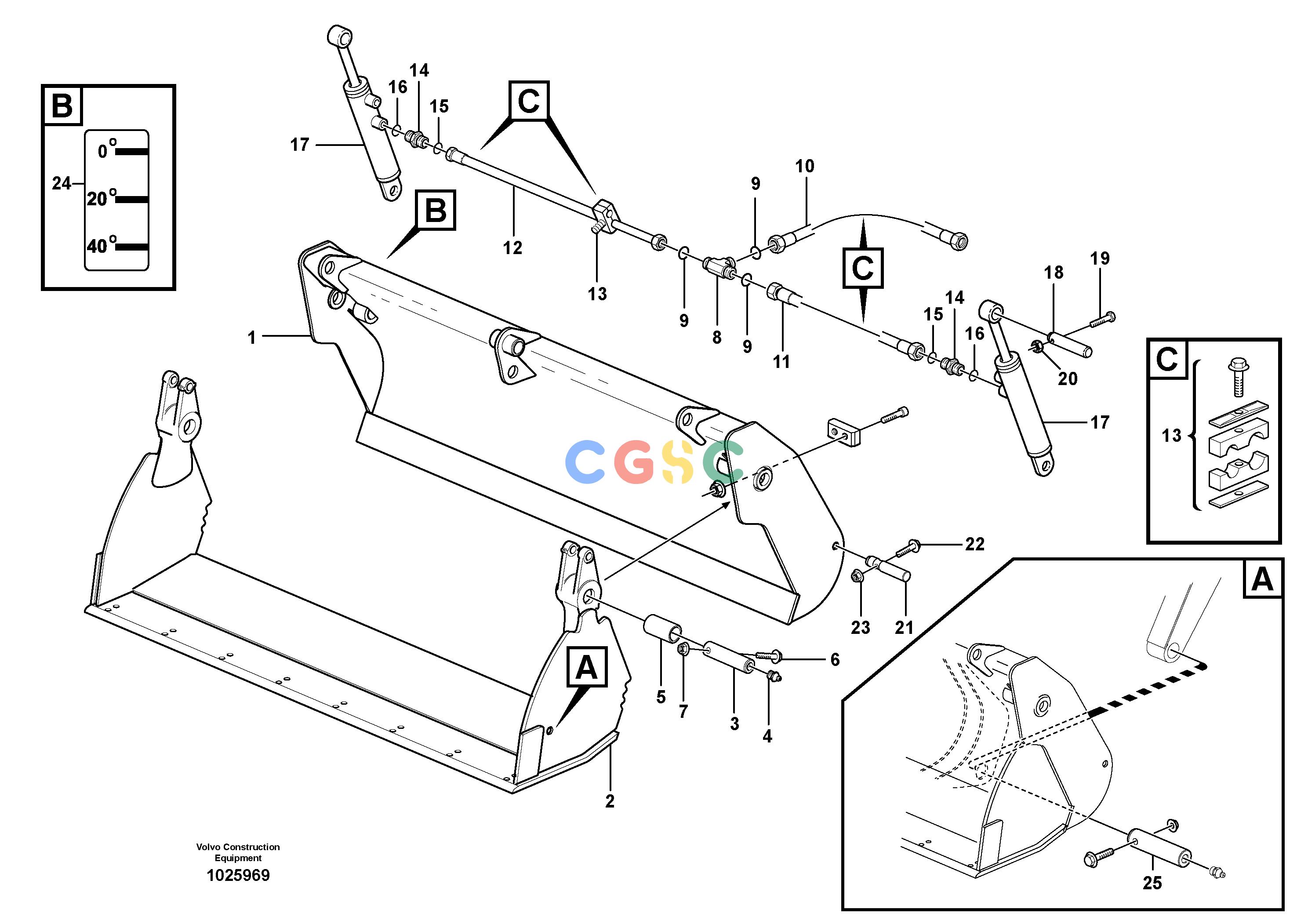

沃尔沃零件查询ATTACHMENTS Multi-purpose bucketATTACHMENTS BACKHOE LOADERS NoneNone11891541Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11887763
|
[1] |
Bucket
|
|
| 1. |
|
[1] |
Backrest Frame
|
|
| |
VOE11888648
|
[1] |
Bucket blade
|
|
| 2. |
|
[1] |
Plate
|
|
| 3. |
VOE11881091
|
[2] |
Pin
|
|
| 4. |
VOE914167
|
[2] |
Lubricating nipple
|
|
| 5. |
VOE11881154
|
[2] |
Bushing
|
|
| 6. |
VOE60113105
|
[2] |
Flange screw
|
|
| 7. |
VOE13971098
|
[2] |
Flange nut
|
|
| 8. |
VOE935453
|
[2] |
T-nipple
|
|
| 9. |
VOE990738
|
[6] |
O-ring
|
|
| 10. |
VOE11888254
|
[2] |
Hose
|
|
| 11. |
VOE11886567
|
[2] |
Hose assembly
|
|
| 12. |
VOE937950
|
[1] |
Hose assembly
|
|
| 13. |
VOE11886153
|
[4] |
Clamp
|
|
| 14. |
VOE935091
|
[4] |
Nipple
|
|
| 15. |
VOE990738
|
[4] |
O-ring
|
|
| 16. |
VOE993320
|
[4] |
O-ring
|
|
| 17. |
VOE11887168
|
[2] |
Cylinder
|
|
| 18. |
VOE11881149
|
[2] |
Pin
|
|
| 19. |
VOE13965182
|
[2] |
Screw
|
|
| 20. |
VOE948645
|
[2] |
Flange lock nut
|
|
| 21. |
VOE11888216
|
[2] |
Pin
|
|
| 22. |
VOE984758
|
[2] |
Flange screw
|
|
| 23. |
VOE13971098
|
[2] |
Flange nut
|
|
| 24. |
VOE11883252
|
[1] |
Decal
|
|
| 25. |
|
[1] |
Attaching kit
|
|
