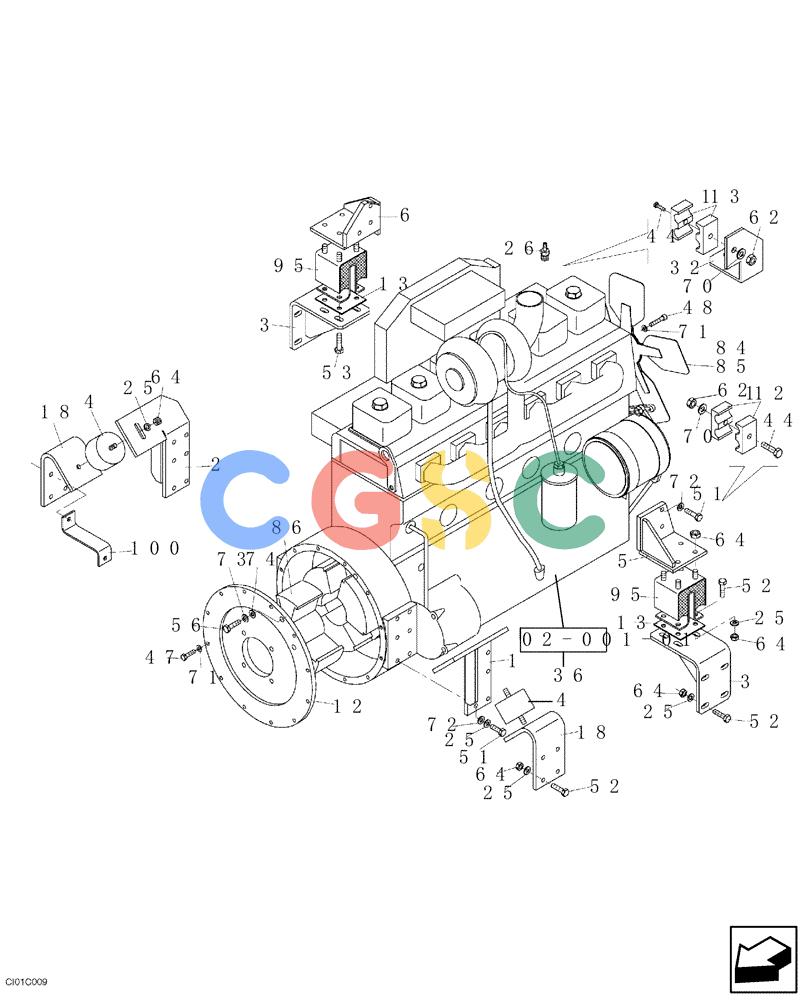

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (02-001-00[01]) - ENGINE - ENGINE MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
779 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND028621 | [1] | SUPPORT | STA |
| 2. | ND028625 | [1] | SUPPORT | STA |
| 3. | ND030802 | [2] | SUPPORT | STA |
| 4. | ND046074 | [2] | RUBBER MOUNTING | STA |
| 5. | ND029756 | [1] | SUPPORT | STA |
| 6. | ND029753 | [1] | SUPPORT | STA |
| 12. | ND031279 | [1] | FLANGE | STA |
| 13. | ND049398 | [4] | PLATE | STA |
| 18. | ND030873 | [2] | SUPPORT | STA |
| 25. | ND042815 | [34] | WASHER | STAID 12 Superseded by part number: ND029267 |
| 26. | ND030807 | [1] | HYD CONNECTOR | STA |
| 32. | ND029207 | [1] | SUPPORT | STA |
| 36. | ND093295 | [1] | ENGINE | STA |
| 44. | ND021187 | [2] | BOLT | STAM8 x 50 |
| 47. | ND021195 | [12] | BOLT | STAM10 x 35 |
| 48. | ND024266 | [4] | BOLT | STAM10 x 80 |
| 51. | ND021311 | [18] | BOLT | STAM12 x 35 |
| 52. | ND021312 | [24] | BOLT | STAM12 x 40 |
| 53. | ND021313 | [1] | BOLT | STAM12 x 45 |
| 56. | ND023846 | [2] | SCREW | STAM16 x 20 Superseded by part number: ND021327 |
| 62. | ND021848 | [2] | NUT | STAM8 Superseded by part number: ND034087 |
| 64. | ND034086 | [36] | NUT | STAM12 |
| 70. | ND035940 | [4] | SPRING WASHER | STAID 8 |
| 71. | ND035941 | [16] | WASHER | STAID 10 |
| 72. | ND035942 | [20] | WASHER | STAID 12 |
| 73. | ND035943 | [2] | WASHER | STAID 16 |
| 74. | ND029253 | [2] | WASHER | STAID 17 |
| 84. | ND104468 | [1] | FAN | STA |
| 85. | ND104467 | [1] | SPACER | STA |
| 86. | ND091164 | [1] | SPACER | STA |
| 95. | ND064129 | [2] | RUBBER MOUNTING | STA |
| 100. | ND066152 | [1] | WIRE HARNESS | STA |
| 112. | ND062019 | [2] | CLAMP | STA |
| 113. | ND064807 | [2] | CLAMP | STA |
