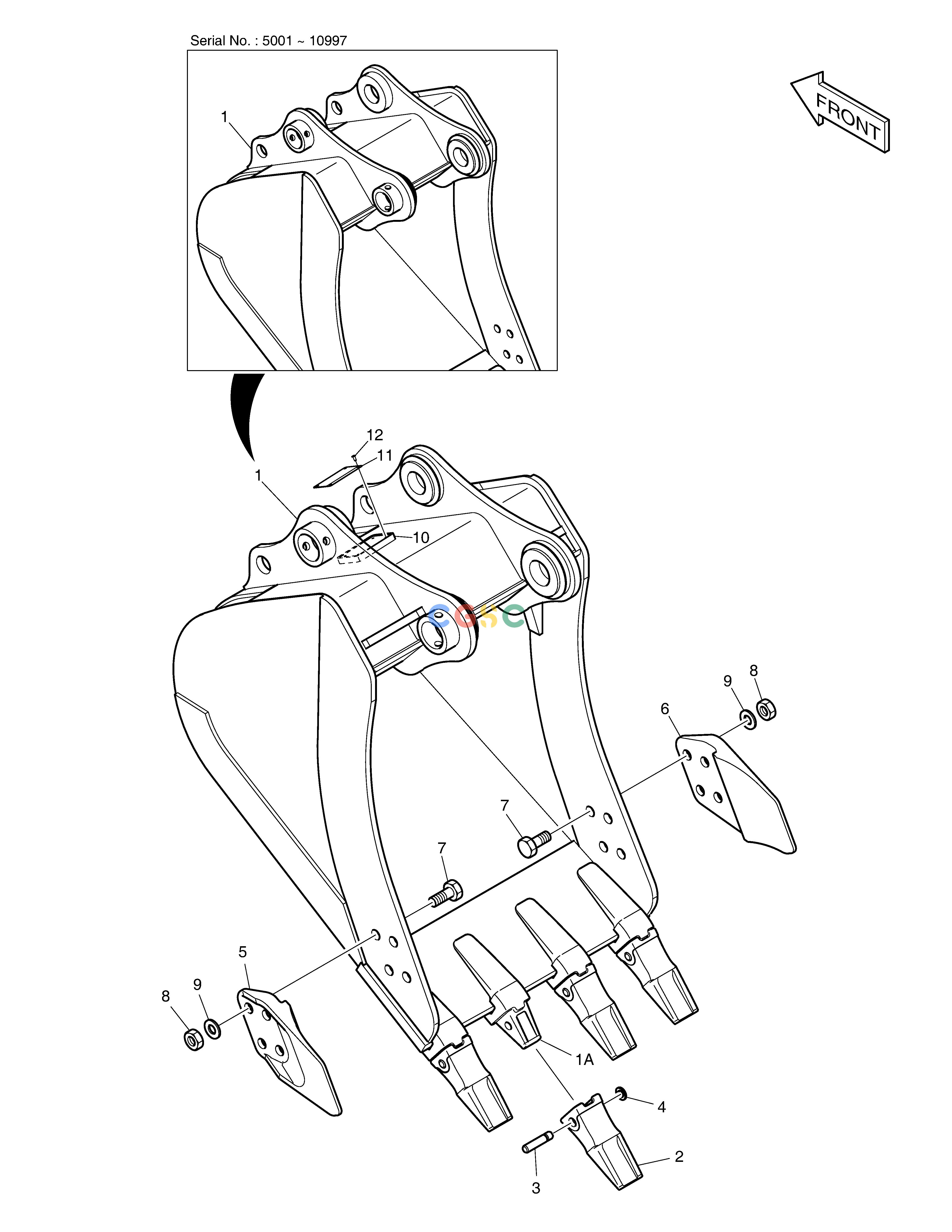

斗山零件查询BUCKET ASS'Y - 0.39m³ DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01198
|
[1] |
|
230104-01198A
|
| -. |
230104-01198A
|
[1] |
|
|
| -. |
K1007635E
|
[1] |
BUCKET ASS'Y- 0.39㎥
|
230104-01198
|
| 1. |
230104-01199
|
[1] |
|
230104-01199A
|
| 1. |
230104-01199A
|
[1] |
|
|
| 1. |
K1007636E
|
[1] |
BUCKET - 0.39㎥
|
230104-01199
|
| 10. |
110913-00289A
|
[1] |
|
|
| 11. |
950209-04415A
|
[1] |
|
|
| 12. |
DS0501007
|
[4] |
|
|
| 1A. |
2713-1222B
|
[4] |
.. ADAPTER,TOOTH
|
|
| 2. |
713-00057C
|
[4] |
. POINT,TOOTH
|
|
| 3. |
2705-1022
|
[4] |
. PIN,LOCKING
|
|
| 4. |
2114-1859
|
[4] |
. WASHER,LOCKING
|
|
| 5. |
2713-1229A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 6. |
2713-1228A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 7. |
S0574561
|
[8] |
BOLT M24X3.0X60
|
|
| 8. |
S4013333
|
[8] |
. NUT
|
|
| 9. |
2114-1831A
|
[8] |
. WASHER
|
|
