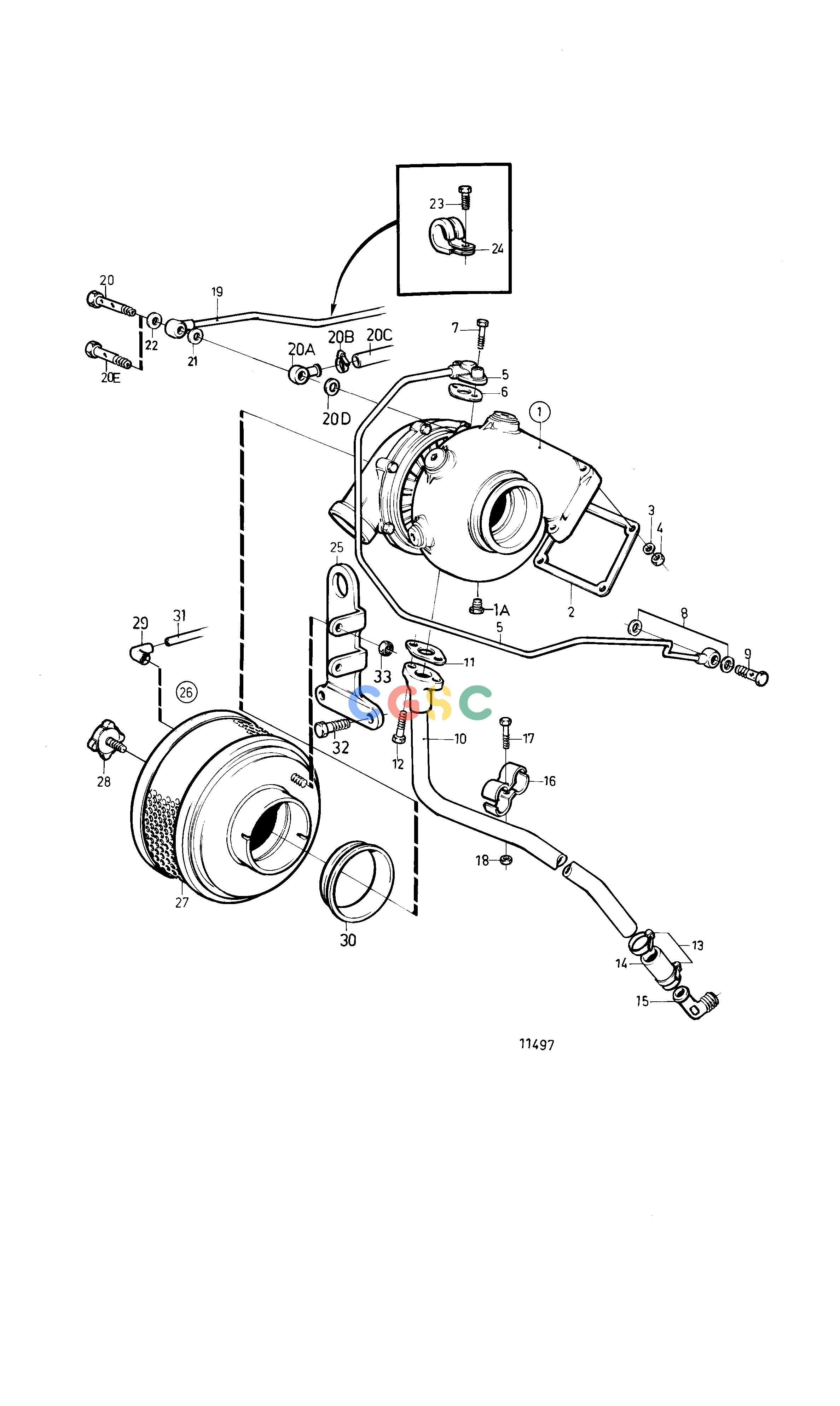

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AIntake and Exhaust SystemTurbocharger and Air Filter: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
784 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3802070
|
[1] |
Turbocharger
|
Product no. 868666, 868667, 868668, 868669, 868670, 868671.
|
| 1A. |
192134
|
[1] |
Plug
|
|
| 2. |
859111
|
[1] |
Gasket
|
|
| 3. |
955895
|
[4] |
Washer
|
|
| 4. |
940183
|
[4] |
Hexagon nut
|
|
| 5. |
838869
|
[1] |
Oil pressure pipe
|
|
| 6. |
420641
|
[1] |
Plane gasket
|
|
| 7. |
945444
|
[1] |
Flange screw
|
L=25mm
|
| 7. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 8. |
969011
|
[2] |
Gasket
|
|
| 9. |
25167
|
[1] |
Hollow screw
|
|
| 10. |
838820
|
[1] |
Oil return pipe
|
|
| 11. |
860105
|
[1] |
Gasket
|
|
| 12. |
945444
|
[2] |
Flange screw
|
|
| 13. |
994559
|
[2] |
Hose clamp
|
|
| 14. |
466328
|
[1] |
Hose
|
|
| 15. |
843879
|
[1] |
Elbow nipple
|
|
| 16. |
820851
|
[2] |
Clamp
|
|
| 17. |
968855
|
[1] |
Flange screw
|
|
| 18. |
945407
|
[1] |
Flange nut
|
|
| 19. |
860215
|
[1] |
Air vent hose
|
Turbo-thermostat housing.
|
| 20. |
947975
|
[1] |
Hollow screw
|
M12
|
| 20A. |
858750
|
[1] |
Banjo nipple
|
|
| 20B. |
945652
|
[1] |
Hose clamp
|
|
| 20C. |
942700
|
[1] |
Hose
|
Expansion tank-Turbo.
|
| 20D. |
11994
|
[1] |
Gasket
|
|
| 21. |
11994
|
[1] |
Gasket
|
|
| 22. |
11994
|
[1] |
Gasket
|
|
| 23. |
965175
|
[2] |
Flange screw
|
|
| 24. |
952624
|
[2] |
Clamp
|
|
| 25. |
838829
|
[1] |
Lifting iron
|
|
| 26. |
861434
|
[1] |
Air cleaner
|
|
| 27. |
858488
|
[1] |
Air filter insert
|
|
| 28. |
859729
|
[1] |
Knob
|
|
| 29. |
861391
|
[1] |
Protecting sleeve
|
|
| 30. |
838855
|
[1] |
Sealing ring
|
|
| 31. |
946234
|
[1] |
Tube
|
L=380mm
|
| 32. |
973083
|
[2] |
Flange screw
|
|
| 33. |
945407
|
[2] |
Flange nut
|
|
