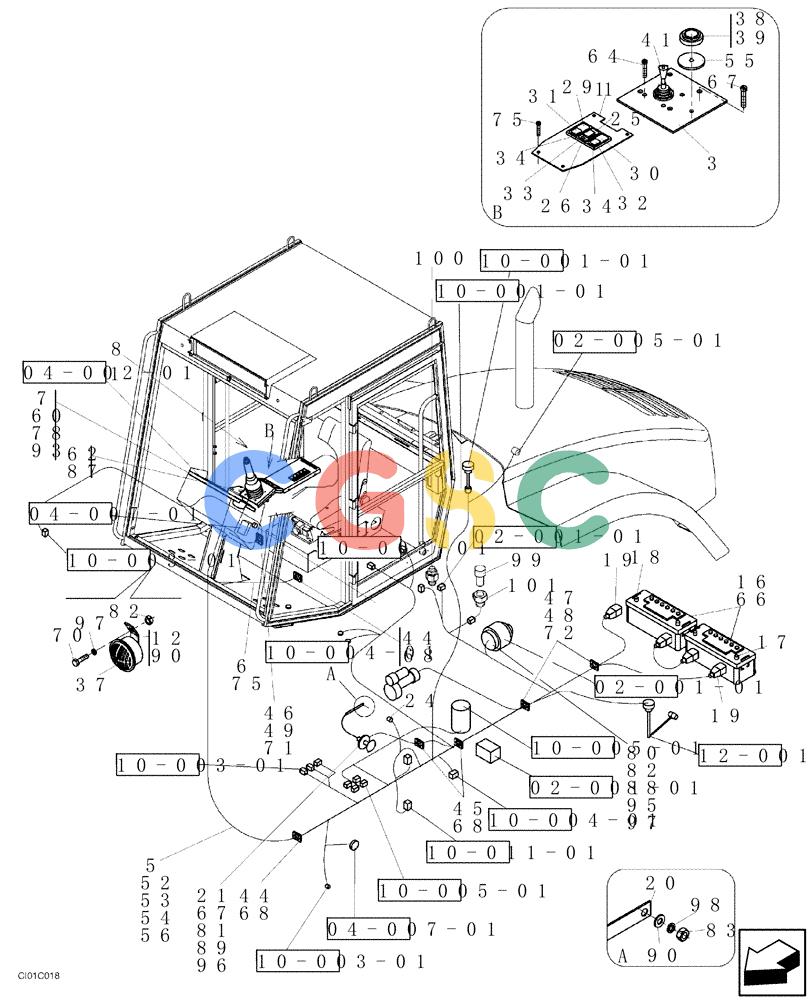

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (04-001-00[01]) - ELECTRICAL CIRCUIT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103121 | [1] | INSTRUMENT PANEL | STA |
| 3. | ND031697 | [1] | PANEL | STA |
| 5. | ND103123 | [1] | WIRE HARNESS | STA |
| 6. | ND103164 | [1] | WIRE HARNESS | STA |
| 7. | ND103122 | [1] | WIRE HARNESS | STA Superseded by part number: ND109539 |
| 8. | ND103165 | [1] | WIRE HARNESS | STA |
| 11. | ND050584 | [1] | COVER PLATE | STA |
| 12. | ND054607 | [1] | SUPPORT | STA |
| 16. | ND067075 | [2] | WET BATTERY | STA Superseded by part number: ND111780 |
| 17. | ND067070 | [2] | TERMINAL | STA Superseded by part number: ND111732 |
| 18. | ND067071 | [2] | TERMINAL | STA Superseded by part number: ND111733 |
| 19. | ND067073 | [4] | COVER | STA Superseded by part number: ND111783 |
| 20. | ND066152 | [1] | WIRE HARNESS | STA |
| 21. | ND064972 | [1] | CIRCUIT BREAKER | STA |
| 24. | ND064523 | [1] | LAMP SOCKET | STA |
| 25. | ND064516 | [1] | SWITCH | STA |
| 26. | ND064520 | [1] | COVER PLATE | STA |
| 29. | ND065382 | [1] | SWITCH | STA |
| 30. | ND065315 | [1] | SWITCH | STAPark Brake |
| 31. | ND065401 | [1] | LENS | STA |
| 32. | ND065350 | [1] | GLASS | STA |
| 33. | ND065310 | [1] | TERMINAL | STA |
| 34. | ND065309 | [2] | BEZEL | STA |
| 37. | ND064679 | [1] | HORN | STA |
| 38. | ND065735 | [1] | COVER | STA |
| 39. | ND065736 | [1] | SWITCH | STAStop Control Switch |
| 40. | ND065786 | [1] | SWITCH | STAThrottle Sensor |
| 41. | ND090940 | [1] | MANIPULATOR | STA Superseded by part number: 84593572 |
| 44. | ND062001 | [7] | CLAMP | STA |
| 45. | ND064814 | [2] | CLAMP | STA |
| 46. | ND064849 | [1] | SLEEVE | STA |
| 47. | ND064841 | [4] | SLEEVE | STA |
| 48. | ND064822 | [4] | COVER | STA |
| 49. | ND064807 | [1] | CLAMP | STA |
| 52. | ND078445 | [20] | SECURING STRAP | STA |
| 53. | ND078447 | [5] | CABLE TIE | STA |
| 54. | ND066061 | [1] | TAPE | STA |
| 55. | ND081766 | [1] | DECAL | STA |
| 56. | ND081909 | [1] | DECAL | STA |
| 60. | ND024102 | [4] | BOLT | STAM3 x 12 |
| 62. | ND023783 | [4] | BOLT | STAM4 x 10 |
| 64. | ND024121 | [6] | BOLT | STAM5 x 12 |
| 66. | ND021287 | [1] | BOLT | STAM6 x 12 |
| 67. | ND024137 | [6] | BOLT | STAM6 x 20 |
| 68. | ND024234 | [18] | BOLT | STAM6 x 30 |
| 70. | ND021295 | [1] | BOLT | STAM8 x 25 |
| 71. | ND021184 | [1] | BOLT | STAM8 x 35 |
| 72. | ND021186 | [4] | BOLT | STAM8 x 45 |
| 75. | ND024965 | [8] | SELF-TAP SCREW | STAM4 x 10 |
| 78. | ND026412 | [4] | NUT | STAM3 |
| 80. | ND021846 | [1] | NUT | STAM5 |
| 81. | ND021847 | [2] | NUT | STAM6 |
| 82. | ND021848 | [2] | NUT | STAM8 Superseded by part number: ND034087 |
| 83. | ND021849 | [1] | NUT | STAM10 Superseded by part number: ND034088 |
| 87. | ND029246 | [4] | WASHER | STAID 4,3 |
| 88. | ND029247 | [1] | WASHER | STAID 5,3 |
| 89. | ND029248 | [2] | WASHER | STAID 6,4 |
| 90. | ND029250 | [2] | WASHER | STAID 10,5 |
| 93. | ND029305 | [4] | WASHER | STAID 3,1 |
| 95. | ND029308 | [1] | WASHER | STAID 5,1 |
| 96. | ND029309 | [2] | SPRING WASHER | STAID 6,1 |
| 97. | ND029310 | [2] | WASHER | STAID 8,2 |
| 98. | ND029311 | [1] | WASHER | STAID 10,2 |
| 99. | ND098755 | [1] | SENSOR | STA |
| 100. | ND067921 | [1] | SENSOR | STA |
| 101. | ND028174 | [1] | HYD CONNECTOR | STA |
