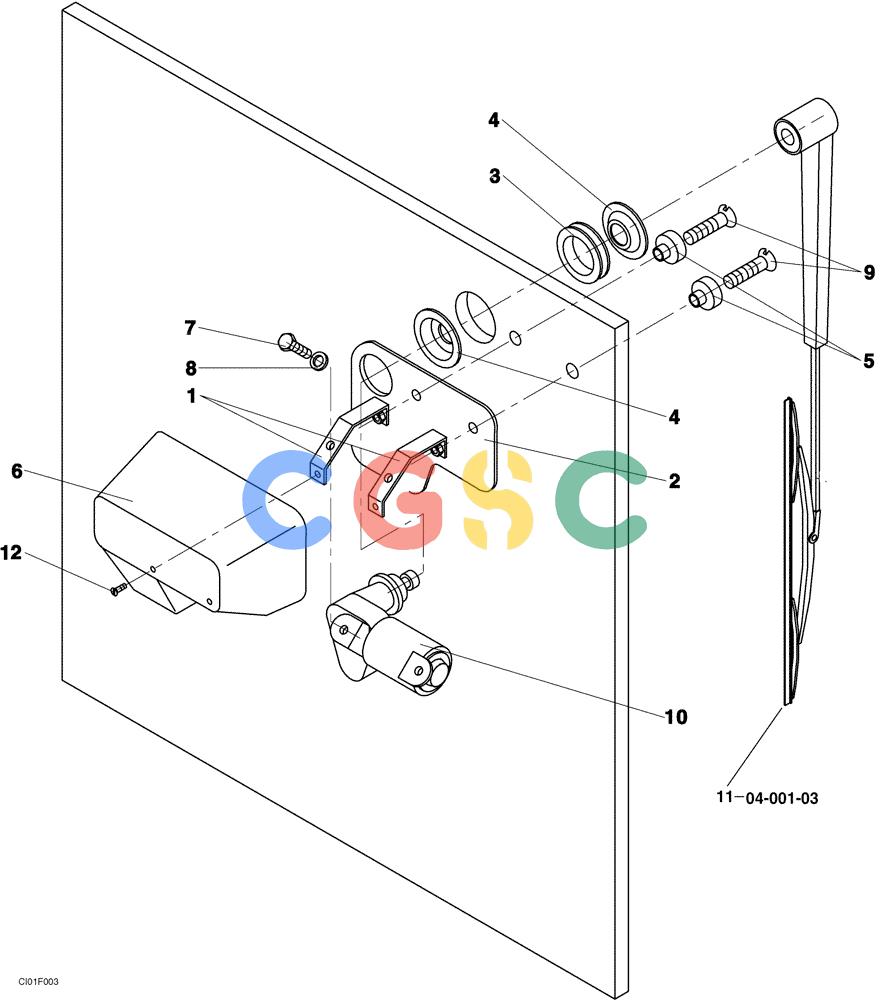

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (04-001-02[01]) - REAR WINDSCREEN WIPER - CAB New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND078512 | [2] | SUPPORT | STA |
| 2. | ND078503 | [1] | PLATE | STA |
| 3. | ND078513 | [1] | GROMMET | STA |
| 4. | ND078514 | [2] | FLANGE | STA |
| 5. | ND078499 | [2] | WASHER | STA |
| 6. | ND078502 | [1] | COVER | STA |
| 7. | ND021285 | [2] | BOLT | STAM5 x 12 |
| 8. | ND029308 | [2] | WASHER | STAID 5,1 |
| 9. | ND024392 | [2] | SCREW | STAM8 x 30 |
| 10. | ND065190 | [1] | WIPER MOTOR | STA24V |
| 11. | ND065202 | [1] | WIPER BLADE | STA |
| 12. | ND024440 | [2] | SCREW | STAM5 x 12 |
