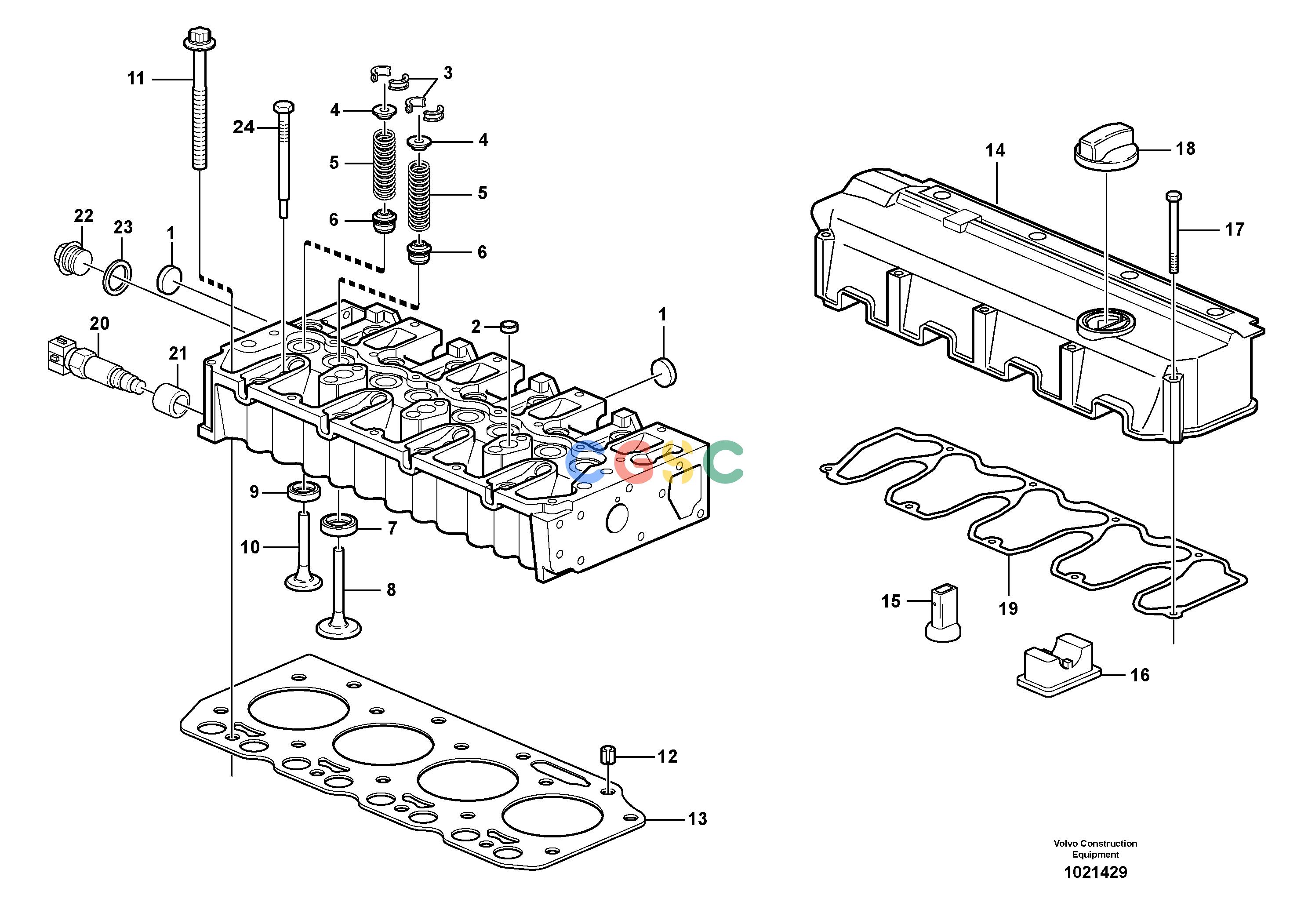

沃尔沃零件查询BL61 Cylinder headNone11886395-11887321VOE11886395E PROD - 01/2006Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20590598
|
[1] |
Cylinder head
|
|
| 1. |
VOE20412745
|
[3] |
Core plug
|
|
| 2. |
VOE20412733
|
[3] |
Core plug
|
|
| 3. |
VOE20459857
|
[16] |
Valve sleeve
|
|
| 4. |
VOE20535037
|
[8] |
Washer
|
|
| 5. |
VOE20459851
|
[8] |
Valve spring
|
|
| 6. |
VOE20459855
|
[8] |
Valve seal
|
|
| 7. |
VOE20459852
|
[4] |
Valve seat
|
|
| 8. |
VOE20482741
|
[4] |
Inlet valve
|
|
| 9. |
VOE20459854
|
[4] |
Valve seat
|
|
| 10. |
VOE20482742
|
[4] |
Exhaust valve
|
|
| 11. |
VOE20459838
|
[13] |
Bolt
|
|
| 12. |
VOE20459839
|
[2] |
Bushing
|
|
| 13. |
VOE20882841
|
[1] |
Cylinder head gasket
|
1,2 MM
|
| 13. |
VOE20882839
|
[1] |
Cylinder head gasket
|
1,3 MM
|
| 13. |
VOE20882838
|
[1] |
Cylinder head gasket
|
1,4 MM
|
| 14. |
VOE20558934
|
[1] |
Valve Cover
|
|
| 15. |
VOE20459836
|
[1] |
Nozzle
|
|
| 16. |
VOE20459835
|
[1] |
Cover
|
|
| 17. |
VOE20459830
|
[9] |
Screw
|
|
| 18. |
VOE20412589
|
[1] |
Filler cap
|
|
| 19. |
VOE20459833
|
[1] |
Gasket
|
ENG - 09/2003
|
| 19. |
VOE20558924
|
[1] |
Gasket
|
ENG 10/2003 -
|
| 20. |
VOE20924084
|
[1] |
Sensor
|
|
| 21. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 22. |
VOE20464451
|
[1] |
Plug
|
|
| 23. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 24. |
VOE21455743
|
[1] |
Plug
|
|
| |
VOE21291286
|
|
Glow plug
|
|
