纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (04-005-00[01]) - HORN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
516 次

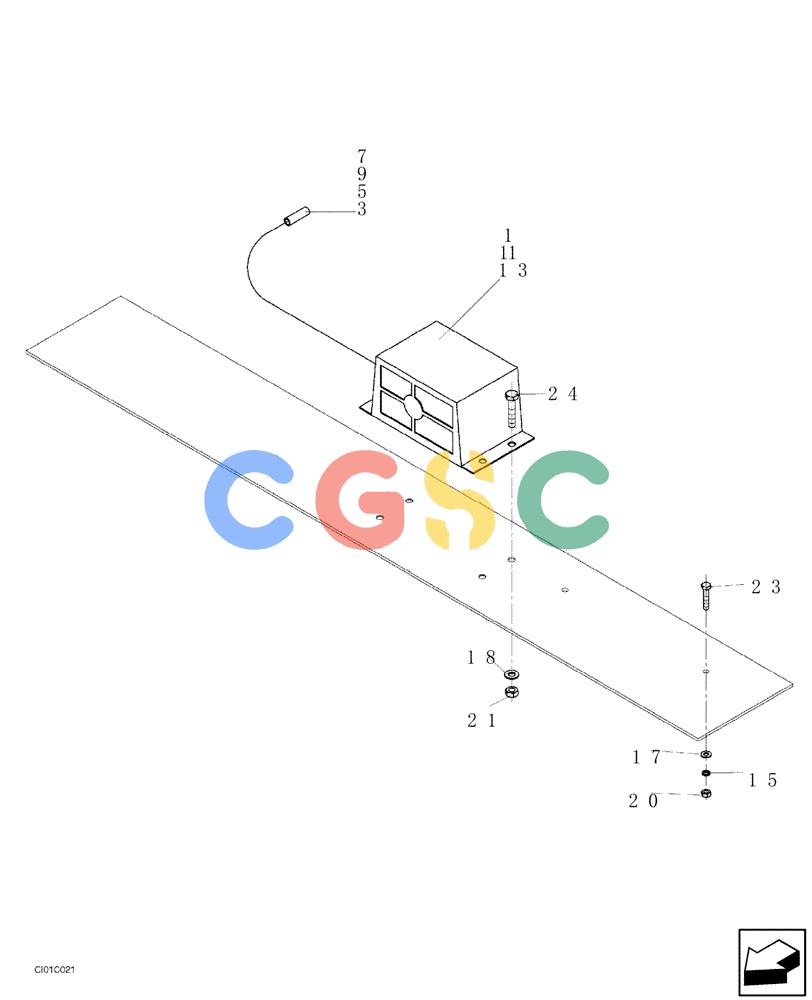

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND064455 | [1] | HORN | STA |
| 3. | ND065943 | [3] | PIN | STA |
| 5. | ND065980 | [2] | WIRE CONNECTOR | STA |
| 7. | ND103214 | [1] | ELECTRIC CABLE | STA4000mm |
| 9. | ND103215 | [1] | ELECTRIC CABLE | STA800mm |
| 11. | ND063148 | [2] | CLAMP | STA |
| 13. | ND063143 | [2] | CLAMP | STA |
| 15. | ND029309 | [2] | SPRING WASHER | STAID 6,1 |
| 17. | ND029248 | [2] | WASHER | STAID 6,4 |
| 18. | ND029249 | [4] | WASHER | STAID 8,4 |
| 20. | ND027300 | [2] | NUT | STAM6 |
| 21. | ND027301 | [4] | NUT | STAM8 |
| 23. | ND021289 | [2] | BOLT | STAM6 x 20 |
| 24. | ND021294 | [4] | BOLT | STAM8 x 20 |
