凯斯零件查询(241) - INTERNATIONAL HARVESTER BIGROLL ROUND BALER (1/74-12/79) (A-27) - BALE SIZE INDICATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
373 次

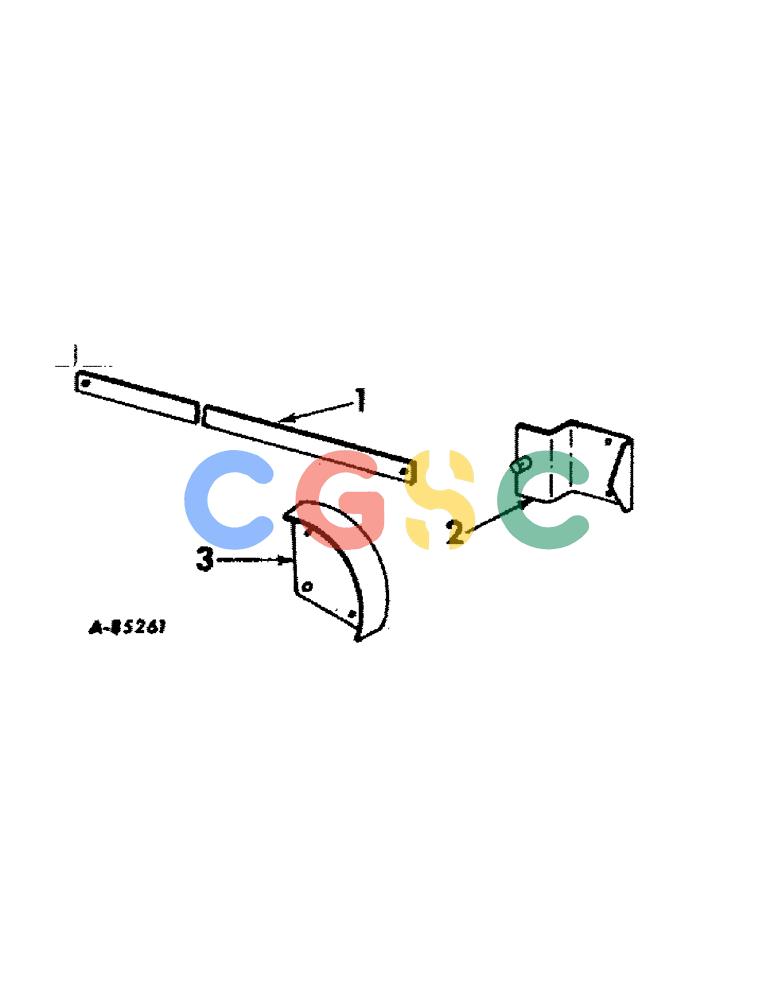

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
208652C1
|
[1] |
STRAP
|
IH
indicator adjustment
|
| . . |
477242R1
|
[2] |
WASHER
|
IH
.406 x 1.000 x .027 ga znd
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| 2. |
208658C1
|
[1] |
POINT
|
IH
ASSY, bale indicator
|
| . . |
17739D
|
[1] |
|
P
PIN, 3/8 x .625 std-hd
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| . . |
482256R1
|
[2] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8 flange lock Superseded by part number: 247780
|
| . . |
127507H
|
[2] |
WASHER
|
IH
.406 x .875 x .164 pln Superseded by part number: 21309R1
|
| 3. |
208649C1
|
[1] |
RING
|
IH
ASSY, indicator
|
| . . |
21888R1
|
[1] |
HEADED PIN,3/8" x 3/4", G2
|
IH
PIN, 3/8 x 3/4 znd std-hd Superseded by part number: 86624060
|
