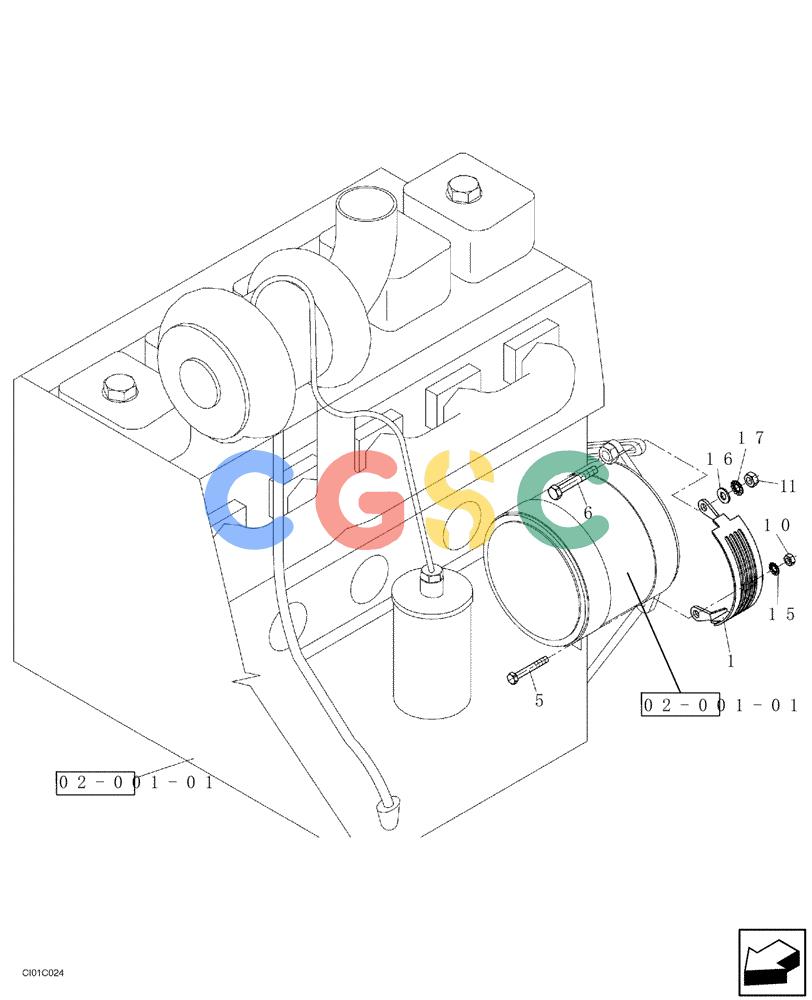

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (04-008-00[01]) - ALTERNATEUR SHIELD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND102186 | [1] | COVER | STA |
| 5. | ND021298 | [1] | BOLT,Hex, 99mm | STAM8 x 40 |
| 6. | ND054330 | [1] | SCREW | STAM10 x 110 |
| 10. | ND021848 | [1] | NUT | STAM8 Superseded by part number: ND034087 |
| 11. | ND021849 | [1] | NUT | STAM10 Superseded by part number: ND034088 |
| 15. | ND035940 | [1] | SPRING WASHER | STAID 8 |
| 16. | ND029250 | [1] | WASHER | STAID 10,5 |
| 17. | ND035941 | [1] | WASHER | STAID 10 |
