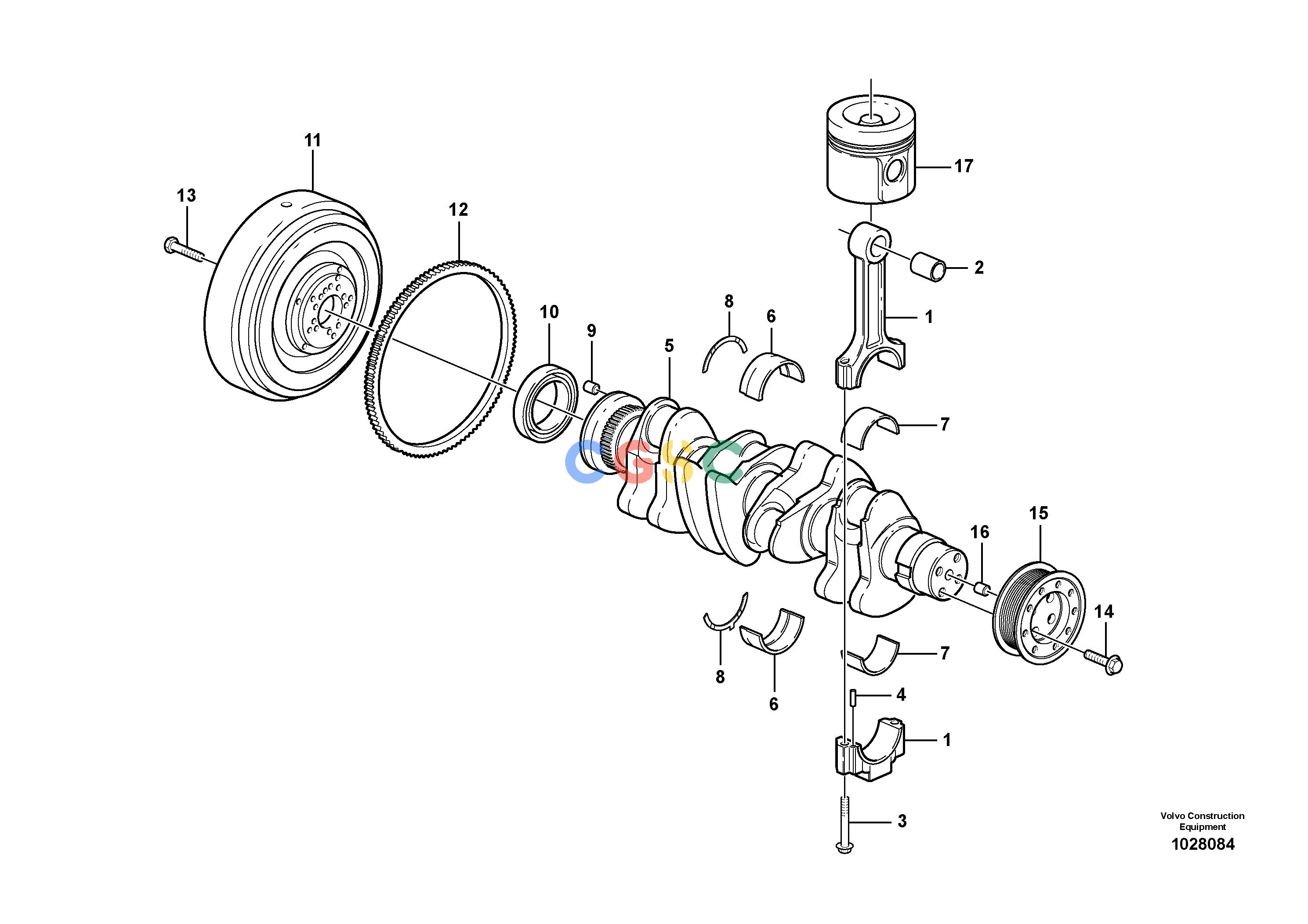

沃尔沃零件查询BL61PLUS Crankshaft and related partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20882905
|
[4] |
Connecting rod
|
|
| 2. |
VOE20523284
|
[4] |
Bushing
|
|
| 3. |
VOE20459133
|
[8] |
Bolt
|
|
| 4. |
VOE20459134
|
[8] |
Pin
|
|
| 5. |
VOE21351381
|
[1] |
Crankshaft
|
|
| 6. |
VOE20459140
|
[5] |
Main bearing
|
STD = 84,00 MM
|
| |
VOE20459139
|
[5] |
Main Bearing
|
U SZ = 83,75 MM
|
| 7. |
VOE20480536
|
[4] |
Bearing
|
STD = 63,00 MM
|
| |
VOE20522433
|
[4] |
Bearing
|
U SZ = 62,75 MM
|
| 8. |
VOE20459149
|
[00 1] |
Thrust washer
|
STD
WID = 14 MM
|
| |
VOE20459148
|
[00 1] |
Thrust Washer
|
WID = 14 MM
THICK = 2,2 MM
|
| |
VOE20459143
|
[00 1] |
Washer
|
STD
WID = 10 MM
|
| |
VOE20459142
|
[1] |
Thrust Washer
|
WID = 10 MM
THICK = 2,2 MM
|
| 9. |
VOE20459144
|
[10] |
Insert
|
|
| 10. |
VOE21628356
|
[1] |
Crankshaft seal
|
|
| 11. |
VOE20459124
|
[1] |
Flywheel
|
|
| 12. |
VOE21033328
|
[1] |
Starter gear ring
|
|
| 13. |
VOE20405654
|
[10] |
Bolt
|
|
| 14. |
VOE20405724
|
[4] |
Screw
|
|
| 15. |
VOE24426216
|
[1] |
Pulley
|
|
| 16. |
VOE20405634
|
[1] |
Spring pin
|
|
| 17. |
|
[1] |
Piston
|
|
