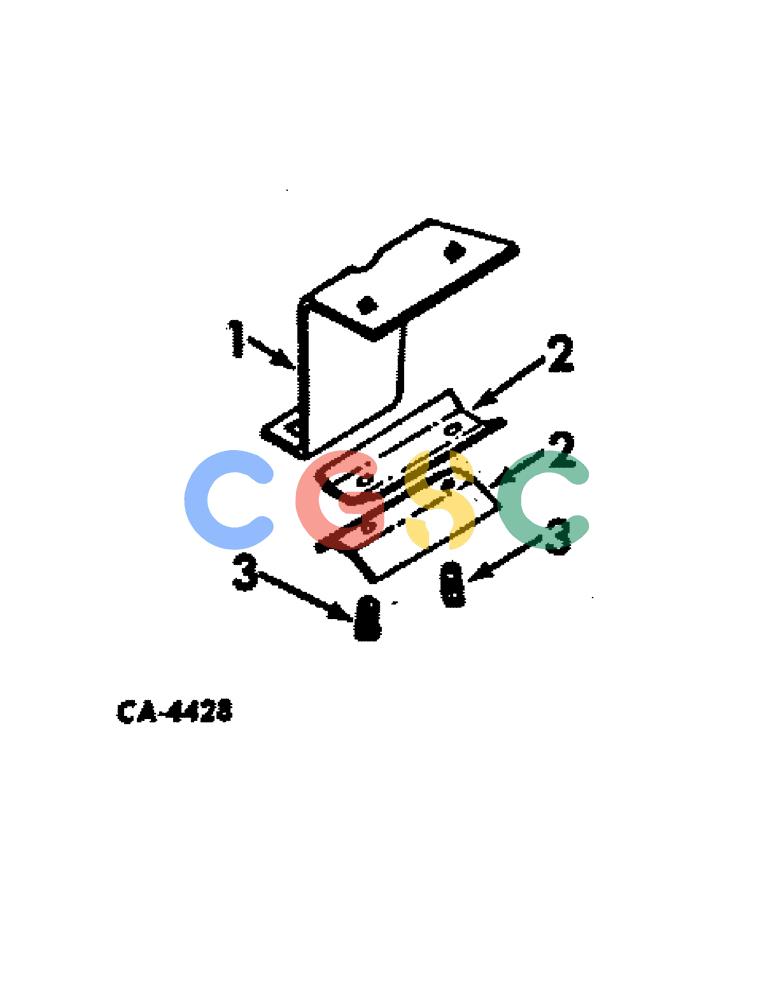

凯斯零件查询(241) - INTERNATIONAL HARVESTER BIGROLL ROUND BALER (1/74-12/79) (A-30) - TWINE TENSION PACKAGE, SERIAL NO. 7810 AND BELOW Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
204804C91
|
[1] |
PACKAGE
|
IH
TWINE TENSION SERVICE PACKAGE, consists of
|
| 1. |
214432C1
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT, twine tension
|
| 2. |
662380R1
|
[2] |
GUIDE
|
IH
PLATE, twine tension
|
| 3. |
2064A
|
[2] |
SPRING
|
IH
twine tension
|
| . . |
18634R1
|
[2] |
BOLT
|
IH
1/4 x 2-3/4 crg type 1
|
| . . |
126177
|
[2] |
WING NUT
|
IH
NUT, 1/4 wing Superseded by part number: 129-409, 129-409, 86627130
|
| . . |
120392
|
[2] |
WASHER,1/4", SAE
|
IH
.281 x .625 x .051 Superseded by part number: 87361
|
| . . |
12653R1
|
[2] |
BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2
|
IH
BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2 Superseded by part number: 598795R1
|
| . . |
938016R1
|
[2] |
FLANGE NUT,Flg, USR, 1/4"-20
|
IH
1/4 flange lock Superseded by part number: 523282
|
