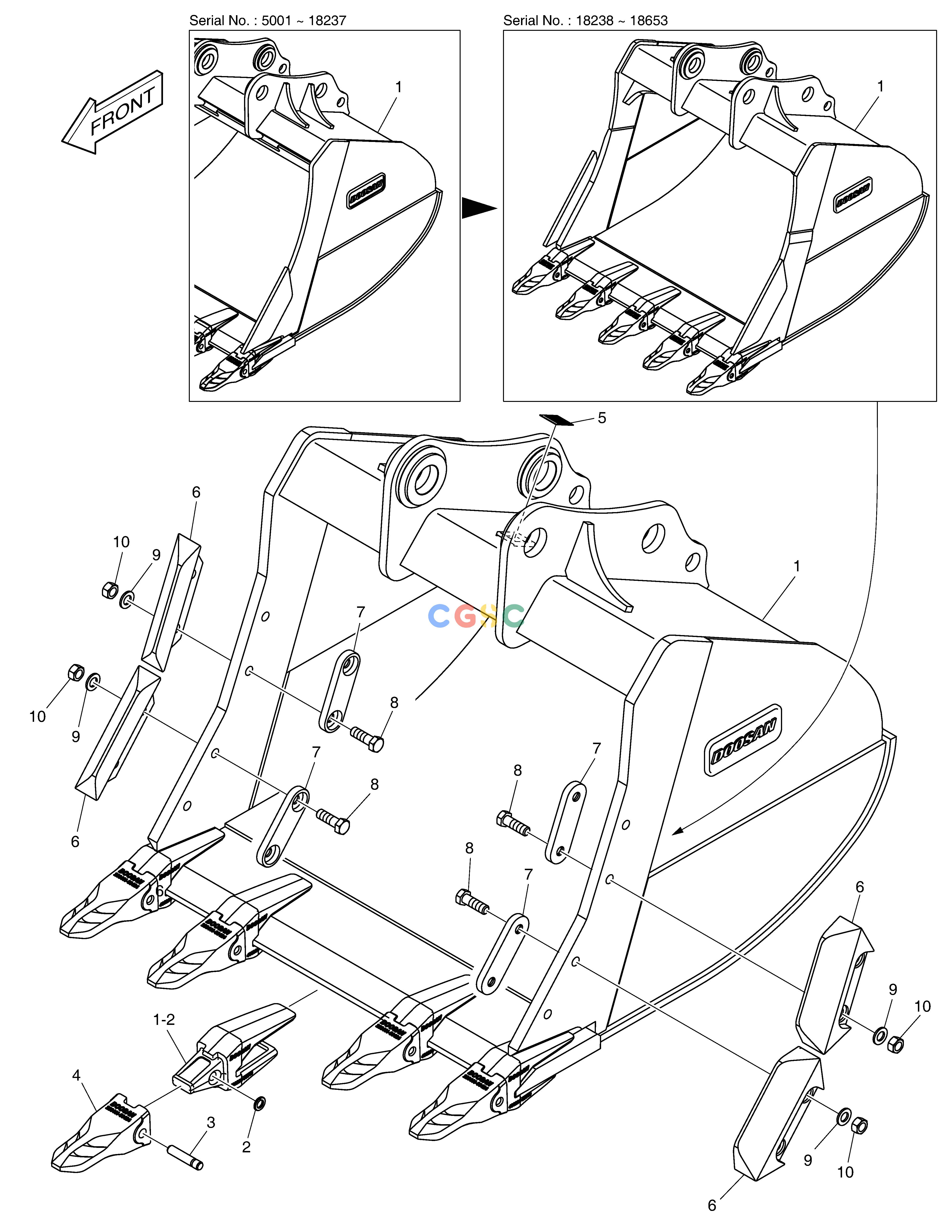

斗山零件查询BUCKET ASS´Y - 1.23m³ - S CLASS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-02005
|
[1] |
|
230104-02328
|
| -. |
230104-02328
|
[1] |
|
230104-02476
|
| -. |
230104-02476
|
[1] |
|
|
| 1. |
230104-02006
|
[1] |
|
|
| 1-2. |
430203-00049
|
[5] |
|
|
| 10. |
S4013333
|
[8] |
. NUT
|
|
| 2. |
2114-1849A
|
[5] |
WASHER;LOCKING
|
|
| 3. |
2705-1021
|
[5] |
PIN;LOCKING
|
|
| 4. |
230111-00124
|
[5] |
|
|
| 5. |
950209-04791
|
[1] |
|
|
| 6. |
111003-00048
|
[4] |
|
|
| 7. |
250102-00525
|
[4] |
|
|
| 8. |
S0574861
|
[8] |
BOLT M24X3.0X75
|
|
| 9. |
2114-1831A
|
[8] |
. WASHER
|
|
