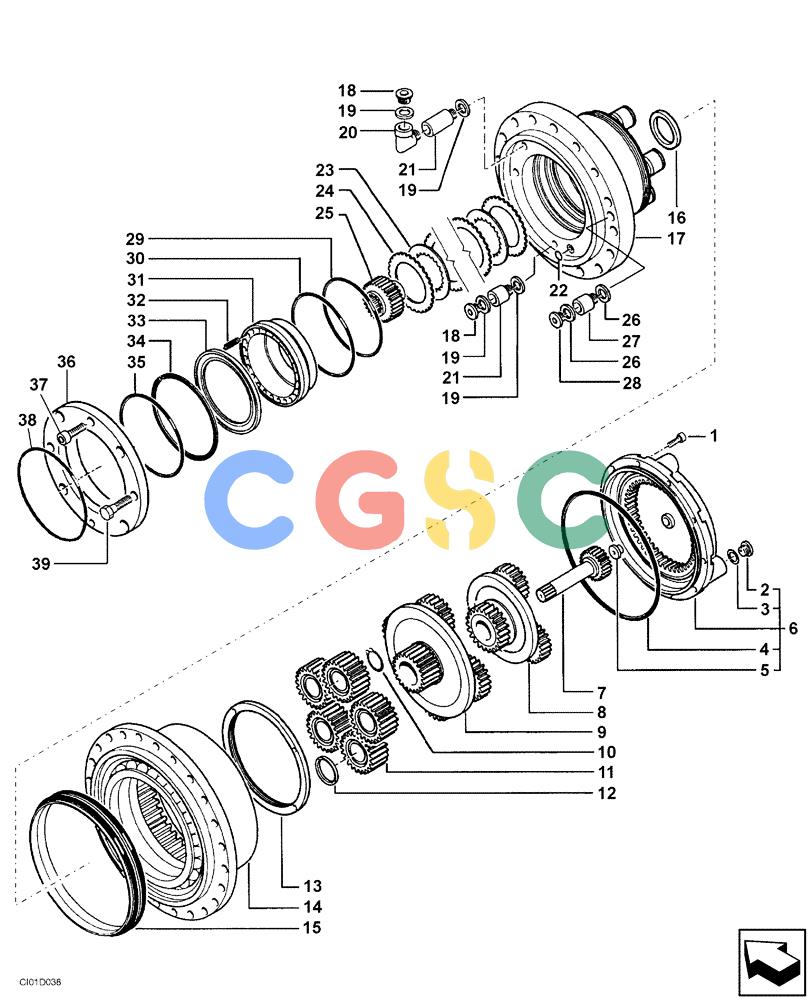

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (07-003-00[01]) - REDUCTION GEAR - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
888 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND090943 | [1] | GEAR REDUCTION UNIT | STA |
| 1. | ND101668 | [10] | BOLT | STAM10 x 25 |
| 2. | ND101645 | [2] | PLUG | STA Superseded by part number: A3282169 |
| 3. | ND101660 | [1] | WASHER | STA22 x 28 x 1.5 |
| 4. | ND101653 | [1] | O-RING | STA3.53 x 278.99 |
| 5. | ND101633 | [1] | PAD | STA |
| 6. | ND101691 | [1] | COVER | STA |
| 7. | ND101620 | [1] | GEAR | STA |
| 8. | ND101689 | [1] | PINION CARRIER | STA |
| 9. | ND101688 | [1] | PINION CARRIER | STA |
| 10. | ND101662 | [5] | SNAP RING | STA |
| 11. | ND101690 | [5] | SUN GEAR | STA |
| 12. | ND101631 | [5] | RING | STA |
| 13. | ND101624 | [1] | RING NUT | STAM230 x 2 |
| 14. | ND101693 | [1] | BOX | STA |
| 15. | ND101647 | [1] | GASKET | STA |
| 16. | ND101627 | [1] | RING | STA |
| 17. | ND101634 | [1] | HUB | STA |
| 18. | ND101644 | [2] | PLUG | STAM22 x 1.5 |
| 20. | ND101635 | [1] | ELBOW | STAM22 x 1.5 |
| 21. | ND101637 | [2] | EXTENSION | STA2.62 x 12.37 |
| 22. | ND101650 | [1] | O-RING | STA |
| 23. | ND101640 | [5] | DISC | STA |
| 24. | ND101642 | [6] | BRAKE DISC | STA |
| 25. | ND101615 | [1] | SHAFT | STA |
| 26. | ND101661 | [2] | WASHER | STA18 x 24 x 1.5 |
| 27. | ND101636 | [1] | EXTENSION | STAM18 x 1.5 |
| 28. | ND101669 | [1] | PLUG | STAM18 x 1.5 Superseded by part number: 8603270 |
| 29. | ND101658 | [1] | O-RING | STA3.23 x 164.69 |
| 30. | ND101659 | [1] | O-RING | STA3.23 x 183.74 |
| 31. | ND101618 | [1] | PISTON | STA |
| 32. | ND101639 | [18] | SPRING | STA |
| 33. | ND101626 | [1] | SPRING CUP | STA |
| 34. | ND101664 | [1] | SNAP RING | STA |
| 35. | ND101652 | [1] | O-RING | STA2.62 x 196.52 |
| 36. | ND101623 | [1] | PLUG | STA |
| 37. | ND101666 | [8] | BOLT | STAM8 x 20 |
| 38. | ND101655 | [1] | O-RING | STA4.00 x 180 |
| 39. | ND101649 | [2] | BOLT | STAM20 x 60 |
