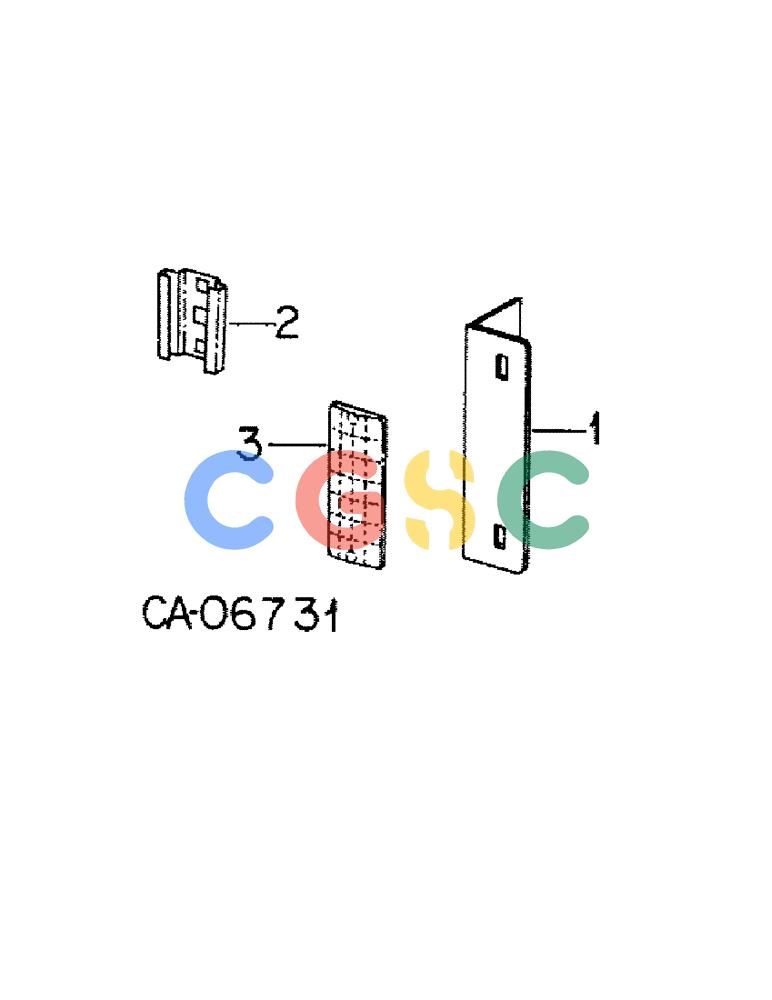

凯斯零件查询(241) - INTERNATIONAL HARVESTER BIGROLL ROUND BALER (1/74-12/79) (A-04) - REFLECTOR, REFLECTOR SUPPORT AND SOCKET Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
219240C1
|
[2] |
SUPPORT ASSY.
|
IH
SUPPORT, reflector
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| . . |
938017R1
|
[2] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16 flange lock Superseded by part number: 145458
|
| 2. |
363919R1
|
[1] |
SOCKET
|
IH
light bracket Superseded by part number: 398976R1
|
| 3. |
175311C1
|
[2] |
REFLECTOR
|
IH
paste-on
|
