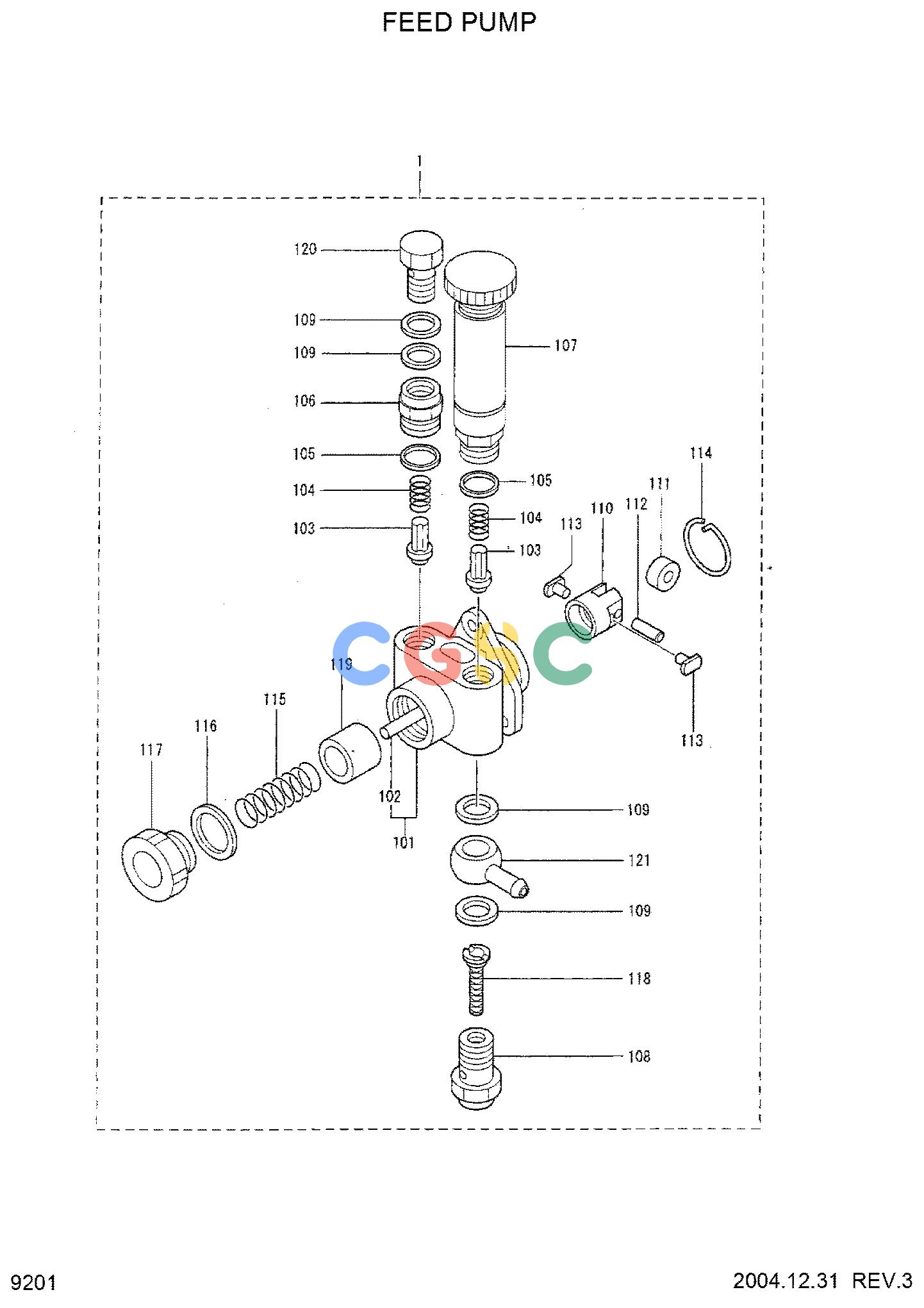

现代零件查询R170W-7 FEED PUMPEPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
680 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
34461-09070
|
[1] |
FEED PUMP ASSY
|
|
| 101. |
09212-00161
|
[1] |
HOUSING SUB ASSY
|
|
| 102. |
09216-80150
|
[1] |
ROD-PUSH
|
|
| 103. |
09212-10011
|
[2] |
VALVE-CHECK
|
|
| 104. |
09212-40010
|
[2] |
SPRING-CHECK VALVE
|
|
| 105. |
09212-50010
|
[1] |
GASKET-PLUG CHANBER
|
|
| 106. |
09212-70010
|
[1] |
SUPPORT-VALVE
|
|
| 107. |
09213-00220
|
[1] |
PUMP ASSY-PRIMING
|
|
| 108. |
09222-30070
|
[1] |
SCREW-PIPE HOLLOW
|
|
| 109. |
85265-00079
|
[4] |
WASHER-PIPE UNION
|
|
| 110. |
09217-40030
|
[1] |
TAPPET-FEED PUMP
|
|
| 111. |
09217-60010
|
[1] |
ROLLER-TAPPET
|
|
| 112. |
09217-80010
|
[1] |
PIN-TAPPET ROLLER
|
|
| 113. |
09217-90050
|
[2] |
BLOCK-TAPPET SLIDING
|
|
| 114. |
94907-20940
|
[1] |
RING-SNAP
|
|
| 115. |
09218-20020
|
[1] |
SPRING-PISTON
|
|
| 116. |
94901-81240
|
[1] |
WASHER-COPPER PLATE
|
|
| 117. |
09218-40021
|
[1] |
PLUG-PISTON CHAMBER
|
|
| 118. |
09222-00040
|
[1] |
FILTER-FEED PUMP
|
|
| 119. |
09217-10011
|
[1] |
PISTON-FEED PUMP
|
|
| 120. |
94918-00310
|
[1] |
SCREW-HOLLOW
|
|
| 121. |
94918-10420
|
[1] |
NIPPLE-SWIVELING
|
|
