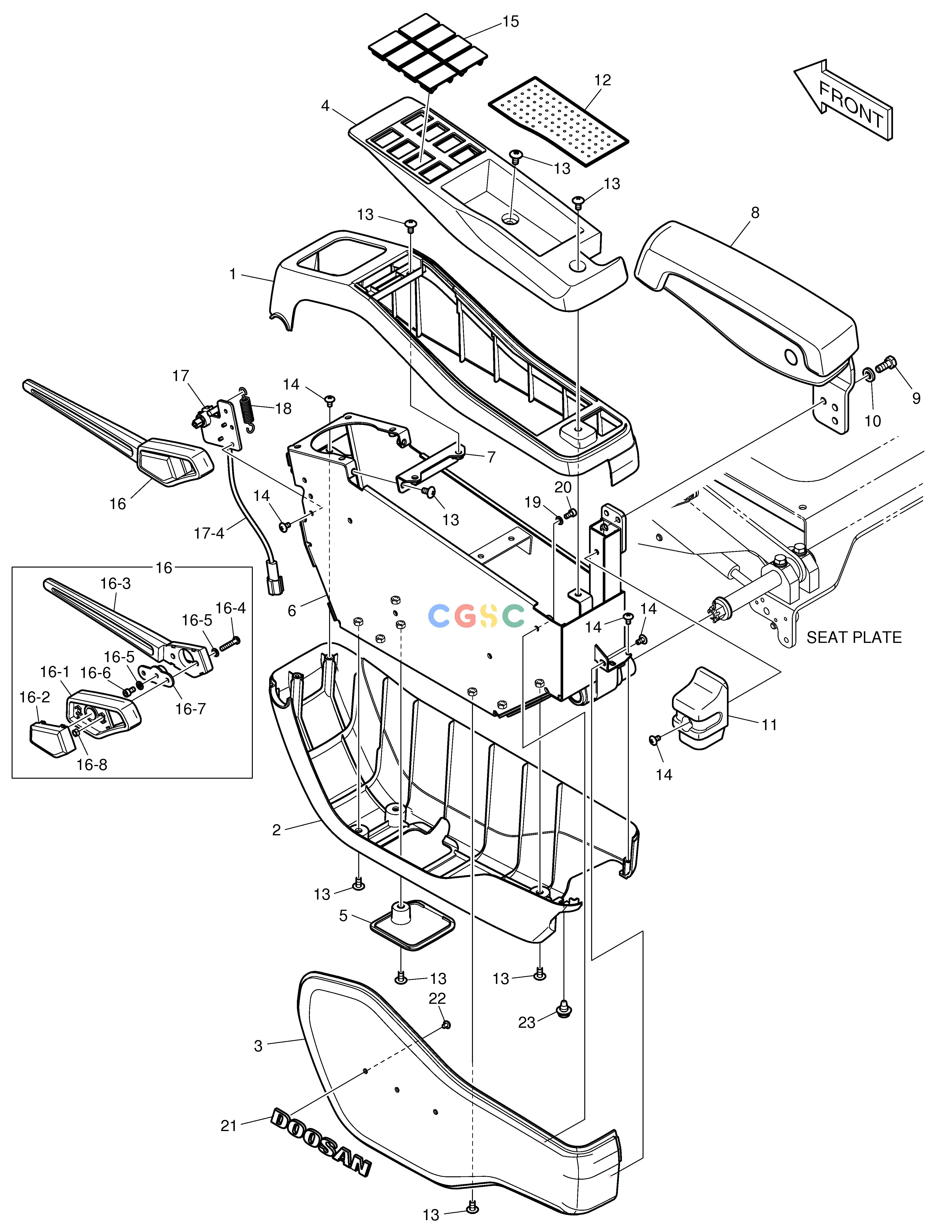

斗山零件查询CONTROL STAND - L.H(ROPS) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220111-00047H
|
[-] |
|
|
| 1. |
220204-00124A
|
[1] |
|
|
| 10. |
2114-1898D2
|
[3] |
WASHER
|
|
| 11. |
220204-00060C
|
[1] |
|
|
| 12. |
101555-00077A
|
[1] |
|
|
| 13. |
2120-2166D52
|
[12] |
. BOLT
|
|
| 14. |
2120-2166D53
|
[8] |
. SCREW
|
|
| 15. |
621-02801
|
[8] |
COVER,SWITCH
|
|
| 16. |
101101-00056K
|
[1] |
|
|
| 16-1. |
110508-00529G
|
[1] |
|
|
| 16-2. |
110508-00530B
|
[1] |
|
|
| 16-3. |
110508-00531H
|
[1] |
|
|
| 16-4. |
S3450873
|
[2] |
SCREW
|
|
| 16-5. |
2114-1898D4
|
[3] |
WASHER
|
|
| 16-6. |
120107-00221
|
[1] |
|
|
| 16-7. |
110406-03492
|
[1] |
|
|
| 16-8. |
S4012233
|
[2] |
NUT
|
|
| 17. |
301417-00002B
|
[1] |
|
|
| 17-4. |
549-00089
|
[1] |
. SWITCH,MICRO
|
|
| 18. |
111601-00215A
|
[1] |
|
|
| 19. |
2114-1898D4
|
[4] |
WASHER
|
|
| 2. |
220204-00125A
|
[1] |
|
|
| 20. |
S2202866
|
[4] |
BOLT;SOCKET M5X0.8X10
|
|
| 21. |
220204-00147B
|
[1] |
|
|
| 22. |
S3664153
|
[3] |
SCREW;TAPPING M3
|
|
| 23. |
2124-1607
|
[1] |
CLIP;TRIM
|
|
| 3. |
220204-00126C
|
[1] |
|
|
| 4. |
220204-00127B
|
[1] |
|
|
| 5. |
220204-00128A
|
[1] |
|
|
| 6. |
110431-00027H
|
[1] |
|
|
| 7. |
250105-00162A
|
[1] |
|
|
| 8. |
220106-00012A
|
[1] |
|
|
| 9. |
2120-2166D5
|
[3] |
BOLT
|
|
