纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-006-00[01]) - HYDRAULIC CIRCUIT - OPERATOR'S COMPARTMENT TILTING CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
914 次

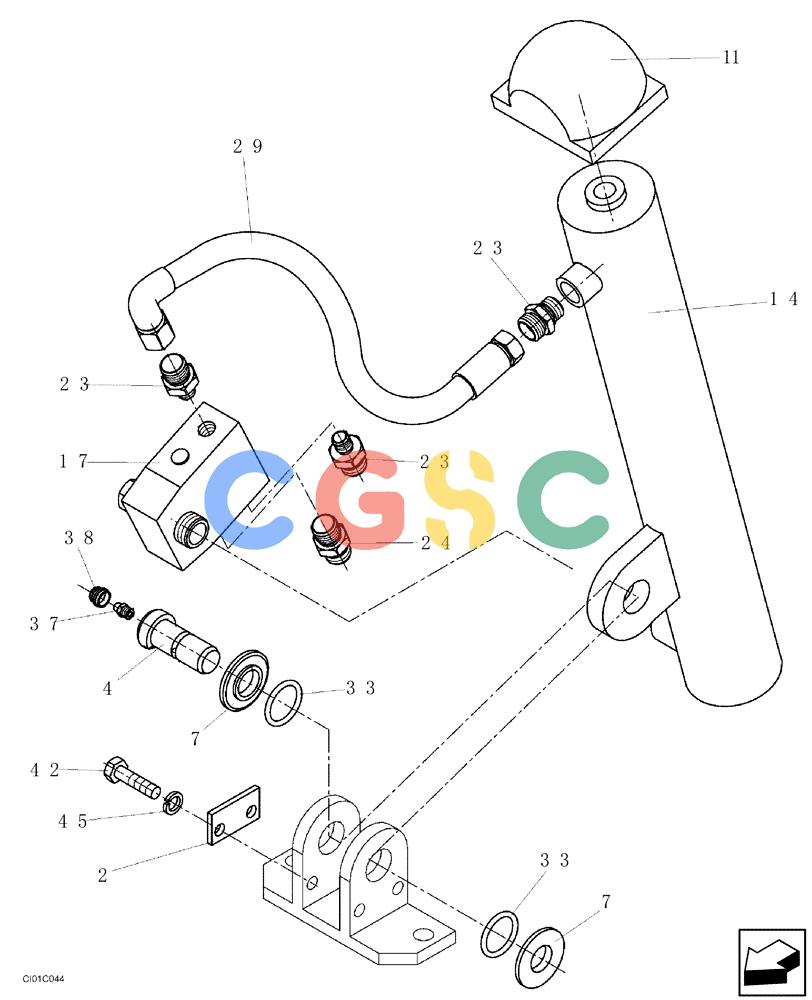

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | ND103345 | [1] | RETAINING PLATE | STA |
| 4. | ND049262 | [1] | PIN | STA |
| 7. | ND049260 | [2] | INSERT | STA |
| 11. | ND102263 | [1] | STOP | STA |
| 14. | ND102044 | [1] | CYLINDER | STA |
| 17. | ND067918 | [1] | VALVE | STA |
| 23. | ND062200 | [3] | HYD CONNECTOR | STA |
| 24. | ND062221 | [1] | HYD CONNECTOR | STA |
| 29. | ND102241 | [1] | FLEXIBLE HOSE | STA270mm |
| 33. | ND079727 | [2] | O-RING | STA33 x 2,5 |
| 37. | ND070133 | [1] | LUBE NIPPLE,M10 x 1 | STA |
| 38. | ND064758 | [1] | PLUG | STA |
| 42. | ND021292 | [2] | BOLT | STAM8 x 12 |
| 46. | ND035940 | [2] | SPRING WASHER | STAID 8 |
